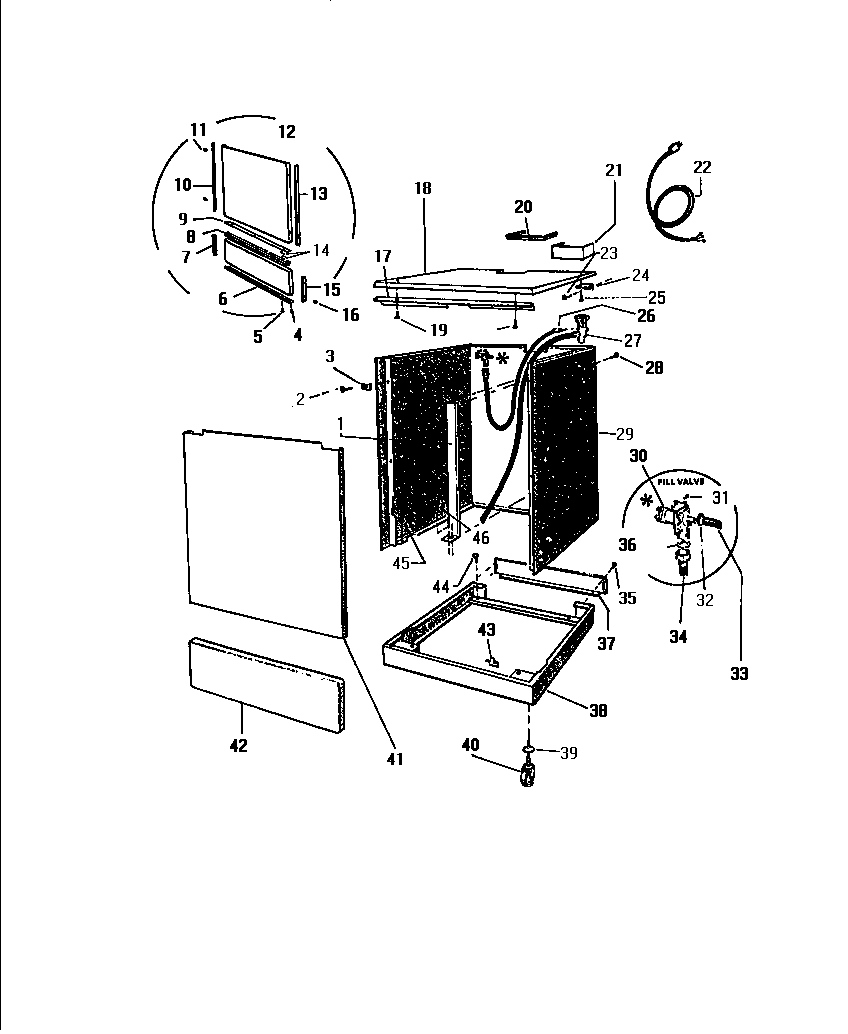

SC750DXR6 08 – WRAPPER, TOP, VALVE & BASE

Products

Position	Product
1	WCI 2647D45A02
2	WCI C000502510
3	SHIELD
8	WCI S412705
9	WCI S412704
13	WCI S430501
15	TRIM (2)
16	SCREW
17	WCI 2647D28H01
18	WCI S441303
20	WCI S419801
21	WCI 2647D21H02
22	WCI 194C665H04
23	SCREW (2 REQ)
24	BRACKET (2 REQ)
25	WCI C402702
27	WCI C95824
29	WCI 761J017H31
29	WCI 761J017H30
29	WCI 761J017H34
29	WCI 761J017H32
29	WCI 761J017H33
30	FILL VALVE (WITH SOLENOID)
31	WCI C505651
32	CLAMP-BLOWER WHEEL
33	WCI 689B519H04
34	FILL HOSE
35	SCREW (2)
36	WCI Q19801
37	WCI 2647D25H03
38	WCI 2647D23A07
39	BARRELL (4 REQ)
40	CASTER (4 REQ)
41	INSERT-OUTER DOOR, BLACK & ALMOND
41	PANEL-OUTER DOOR, WHITE
41	INSERT-OUTER DOOR, WHEAT & COFFEE
42	INSERT SERVICE PANEL, BLACK & ALMOND
42	WCI S423809
42	INSERT SERVICE PANEL, WHEAT & COFFEE
43	CLIP (HARNESS TO TUB)
44	WCI C408702
45	WCI C502504
46	WCI C505495
