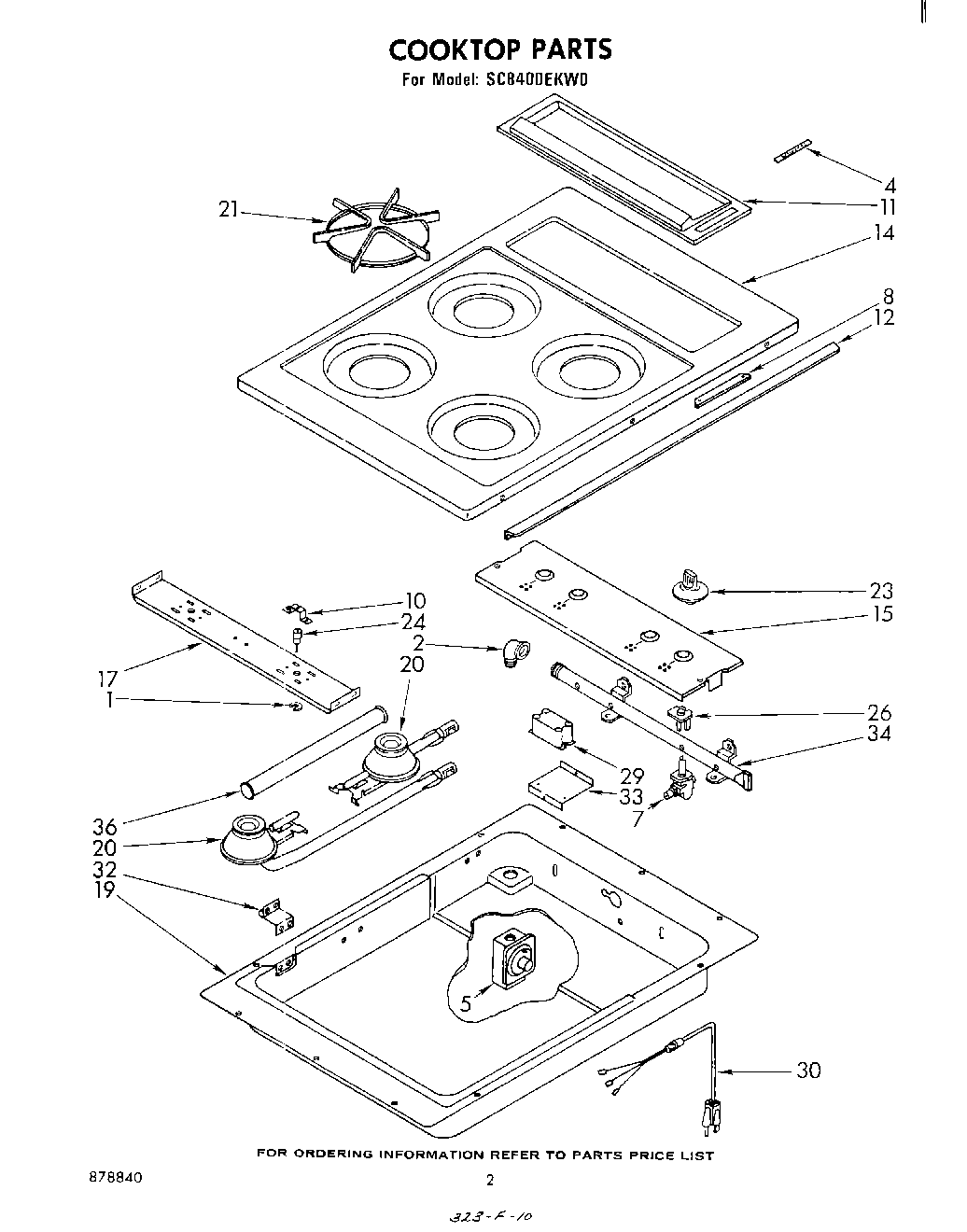

| 1 | Clip, Top Ignitor (2) |
| 2 | Ell Pipe, 1/2 x 90 (Purchase Locally) |
| 4 | Inlay, Nameplate |
| 5 | Regulator, Pressure |
| 7 | Valve, Top Burner (4) |
| 8 | Clamp, Control Panel Trim (2) |
| 10 | Target, Top Ignitor (2) |
| 11 | Trim, Control Panel |
| 12 | Trim, Cooktop |
| 14 | Top, Main (Coffee) |
| 14 | Top, Main (Harvest Gold) |
| 14 | Top, Main (Brushed Chrome) |
| 14 | Top, Main (Almond) |
| 14 | Top, Main (White) |
| 15 | Inlay, Control Panel |
| 17 | Hanger, Top Burner |
| 19 | Box, Burner |
| 20 | Burner Top (Right (2)) |
| 20 | Burner Top (Left (2)) |
| 21 | Grate, Burner (4) |
| 23 | Handle, Top Valve (4) |
| 24 | Ignitor, Top Burner (Right Side) |
| 26 | Switch, Top Ignitor (4) |
| 29 | Control Ignitor |
| 30 | Cord, Extension |
| 32 | Hinge, Cooktop (2) |
| 33 | Bracket, Ignitor Control |
| 34 | Pipe, Manifold |
| 36 | Tube, Wire Cover |
| 36 | Instructions, Installation |
| 36 | Booklet, Use & Care |
| 36 | Diagram, Wiring |
| 36 | List, Repair Parts |
