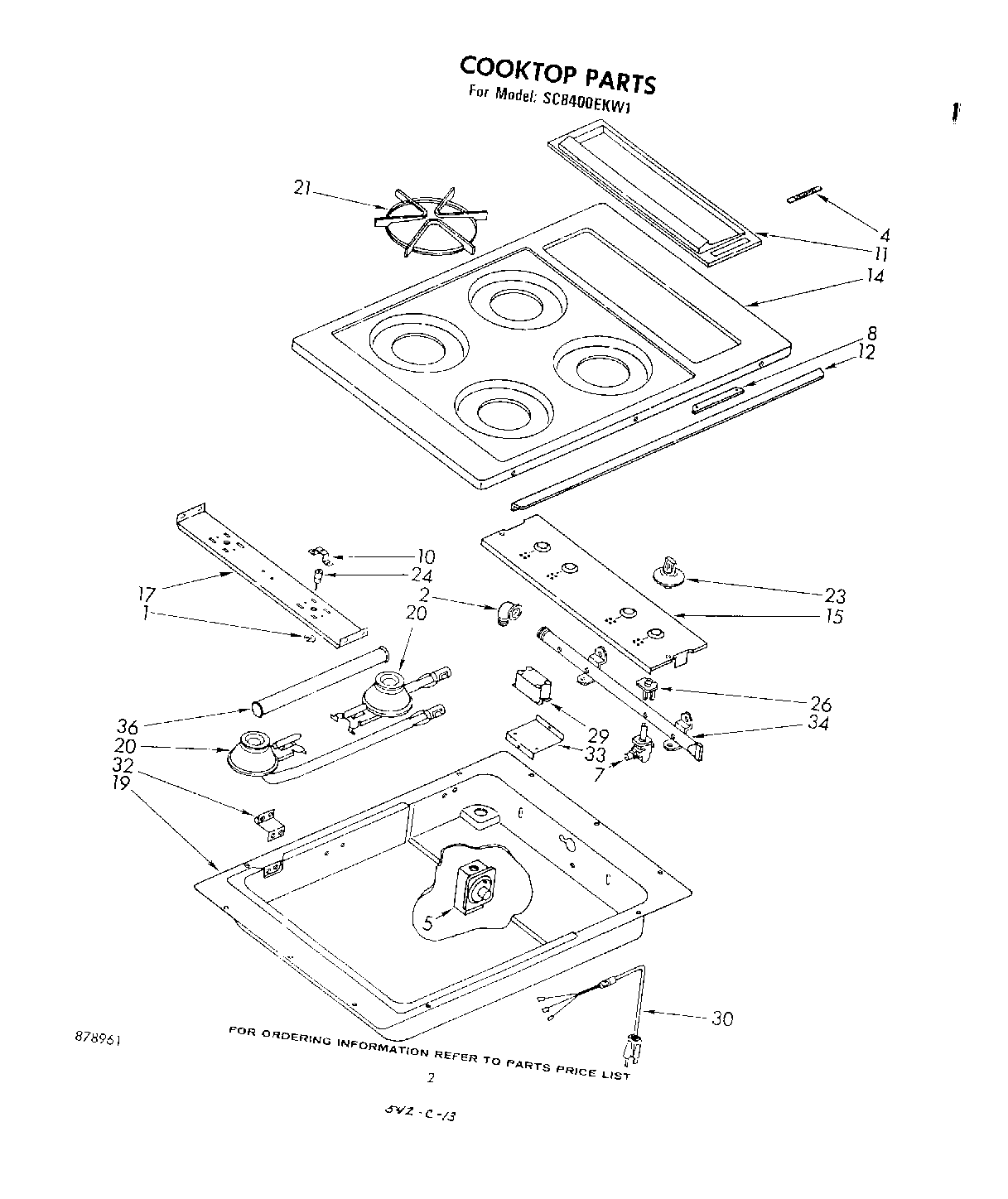

SC8400EKW1 02 – COOKTOP

Products

Position	Product
1	Clip, Top Ignitor (2)
2	Ell Pipe, 1/2 x 90 (Purchase Locally)
4	Inlay, Nameplate
5	Regulator, Pressure
7	Valve, Top Burner (4)
8	Clamp, Control Panel Trim (2)
10	Target, Top Ignitor (2)
11	Trim, Control Panel
12	Trim, Cooktop
14	Top, Main (Harvest Gold)
14	Top, Main (Toast)
14	Top, Main (Platinum)
14	Top, Main (Coffee)
14	Top, Main (Brushed Chrome)
14	Top, Main (White)
14	Top, Main (Almond)
15	Inlay, Control Panel
17	Hanger, Top Burner
19	Box, Burner
20	Burner Top (Right (2))
20	Burner Top (Left (2))
21	Grate, Burner (4)
23	Handle, Top Valve (4)
24	Ignitor, Top Burner (Right Side)
26	Switch, Top Ignitor (4)
29	Control Ignitor
30	Cord, Extension
32	Hinge, Cooktop (2)
33	Bracket, Ignitor Control
34	Pipe, Manifold
36	Tube, Wire Cover
36	Diagram, Wiring
36	Booklet, Use & Care
36	List, Repair Parts
36	Instructions, Installation
