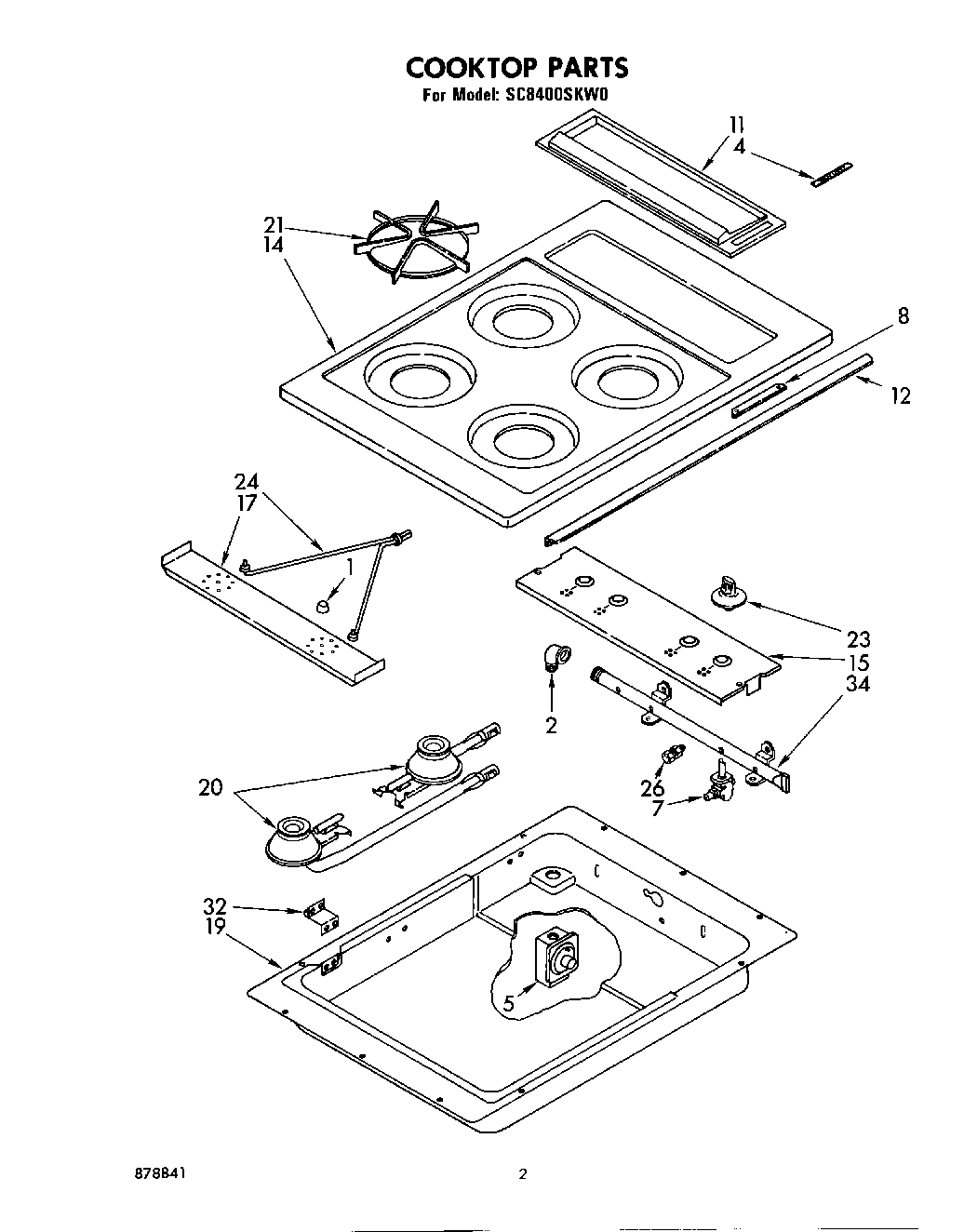

SC8400SKW0 02 – COOKTOP

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Instructions, Installation
1Cone, Top Lighter (2)
2Ell Pipe, 1/2 x 90 (Purchase Locally)
4Inlay, Nameplate
5Regulator, Pressure
7Valve, Top Burner (4)
8Clamp, Control Panel Trim (2)
11Trim, Control Panel
12Trim, Cooktop
14Top, Main (Almond)
14Top, Main (Brushed Chrome)
14Top, Main (White)
14Top, Main (Coffee)
14Top, Main (Harvest Gold)
15Inlay, Control Panel
17Hanger, Top Burner
19Box, Burner
20Burner Top (Left (2))
20Burner Top (Right (2))
21Grate, Burner (4)
23Handle, Top Valve (4)
24Lighter, Top Burner
26Filter, Top Lighter
32Hinge, Cooktop (2)
34Pipe, Manifold
