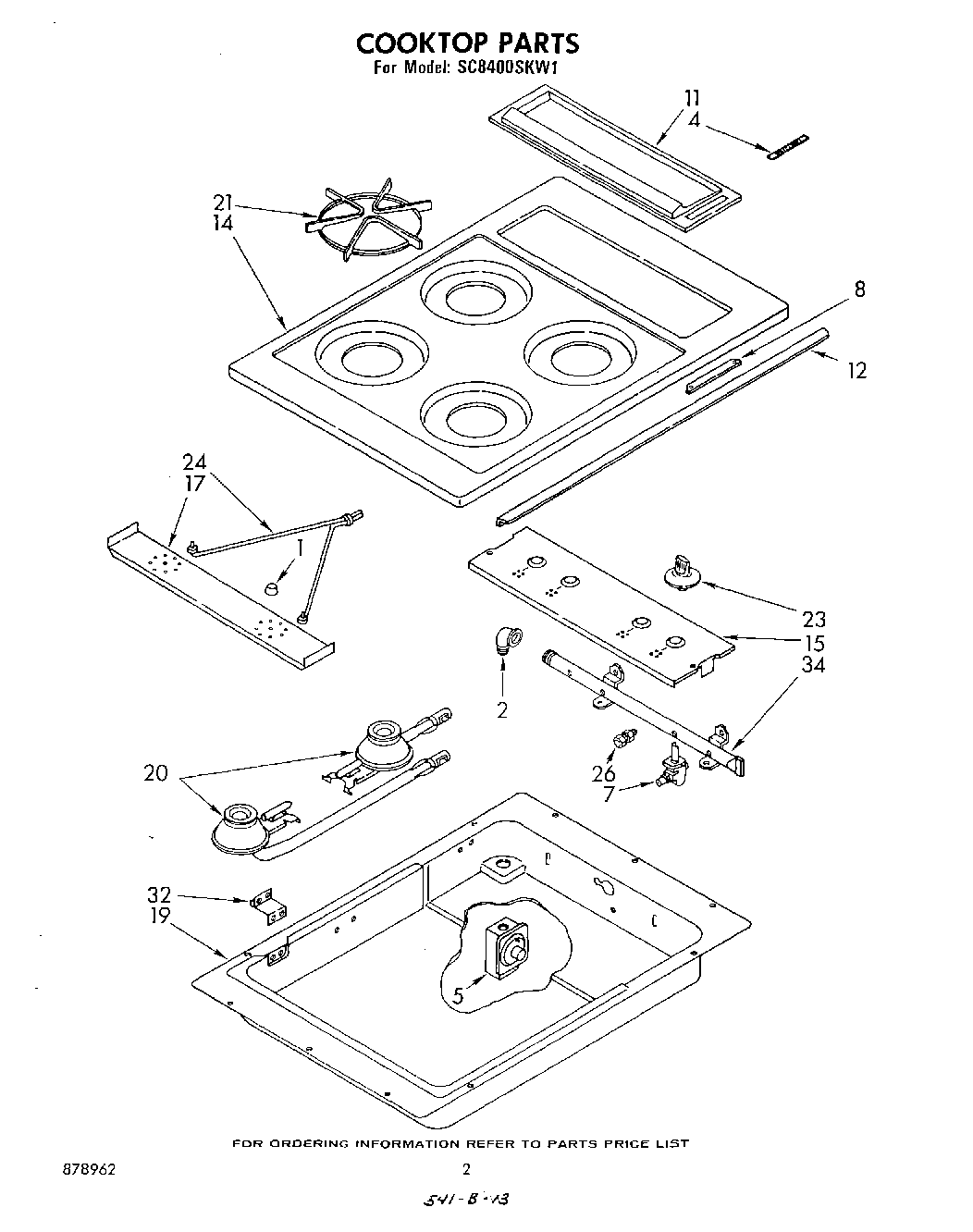

SC8400SKW1 02 – COOKTOP

SC8400SKW1 02 – COOKTOP

Written by

in

SC8400SKW1 02 – COOKTOP

Products

PositionProduct
LITERATURE PARTS
1Cone, Top Lighter (2)
2Ell Pipe, 1/2 x 90 (Purchase Locally)
4Inlay, Nameplate
5Regulator, Pressure
7Valve, Top Burner (4)
8Clamp, Control Panel Trim (2)
11Trim, Control Panel
12Trim, Cooktop
14Top, Main (Harvest Gold)
14Top, Main (Toast)
14Top, Main (Platinum)
14Top, Main (Coffee)
14Top, Main (Brushed Chrome)
14Top, Main (Almond)
14Top, Main (White)
15Inlay, Control Panel
17Hanger, Top Burner
19Box, Burner
20Burner Top (Right (2))
20Burner Top (Left (2))
21Grate, Burner (4)
23Handle, Top Valve (4)
24Lighter, Top Burner
26Filter, Top Lighter
32Hinge, Cooktop (2)
34Booklet, Use & Care
34Instructions, Installation
34Pipe, Manifold
34List, Repair Parts
