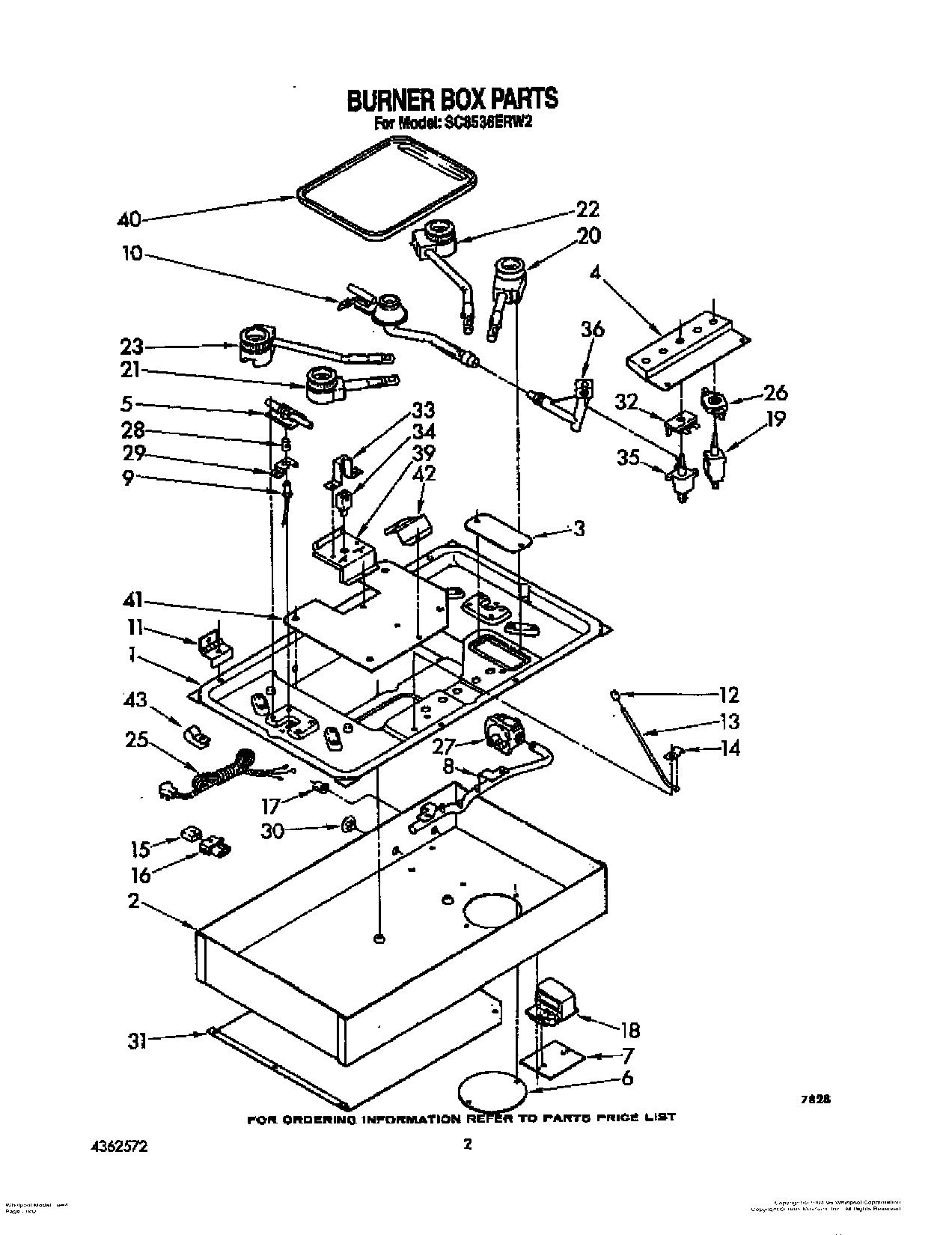

SC8536ERW2 02 – BURNER BOX

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Instruction, Installation
	Guide, Cooking
1	Burner Box
2	Casing, Burner Box
3	Cover, Access
4	Cover, Switch
4	WP90767 Whirlpool Screw
5	Tube, Flash (2)
6	Cover, Access
6	Screw, 8-18 X 1/4 (2)
7	Plate, Module
8	Pipe, Manifold
9	Electrode (2)
10	Burner, Griddle
11	Screw, 10-24 X 1/4 (1)
11	WP313808 Whirlpool Screw
11	Hinge (2)
12	Tip, Rod
13	Rod, Support
14	Clamp, Rod
15	353424 Whirlpool Connector
16	Block, Disconnect
17	Strain Relief
18	Module, Spark
19	Valve (4)
20	Burner (Right Front)
21	Burner (Left Front)
22	Burner (Right Rear)
23	Burner (Left Rear)
23	WP693304 Whirlpool Screw
25	Cord, Power
26	Switch, Valve (4)
27	Pressure Regulator
28	Cap (2)
29	WP489128 Whirlpool Refrigerator Screw
29	Bracket (2)
30	Cover
31	Baffle
32	Switch
33	Strap, Ground
34	Electrode
35	Valve, Griddle
36	Extension, Valve
39	Support, Burner
40	Griddle
41	Baffle, Burner
42	Reflector
43	Clamp
