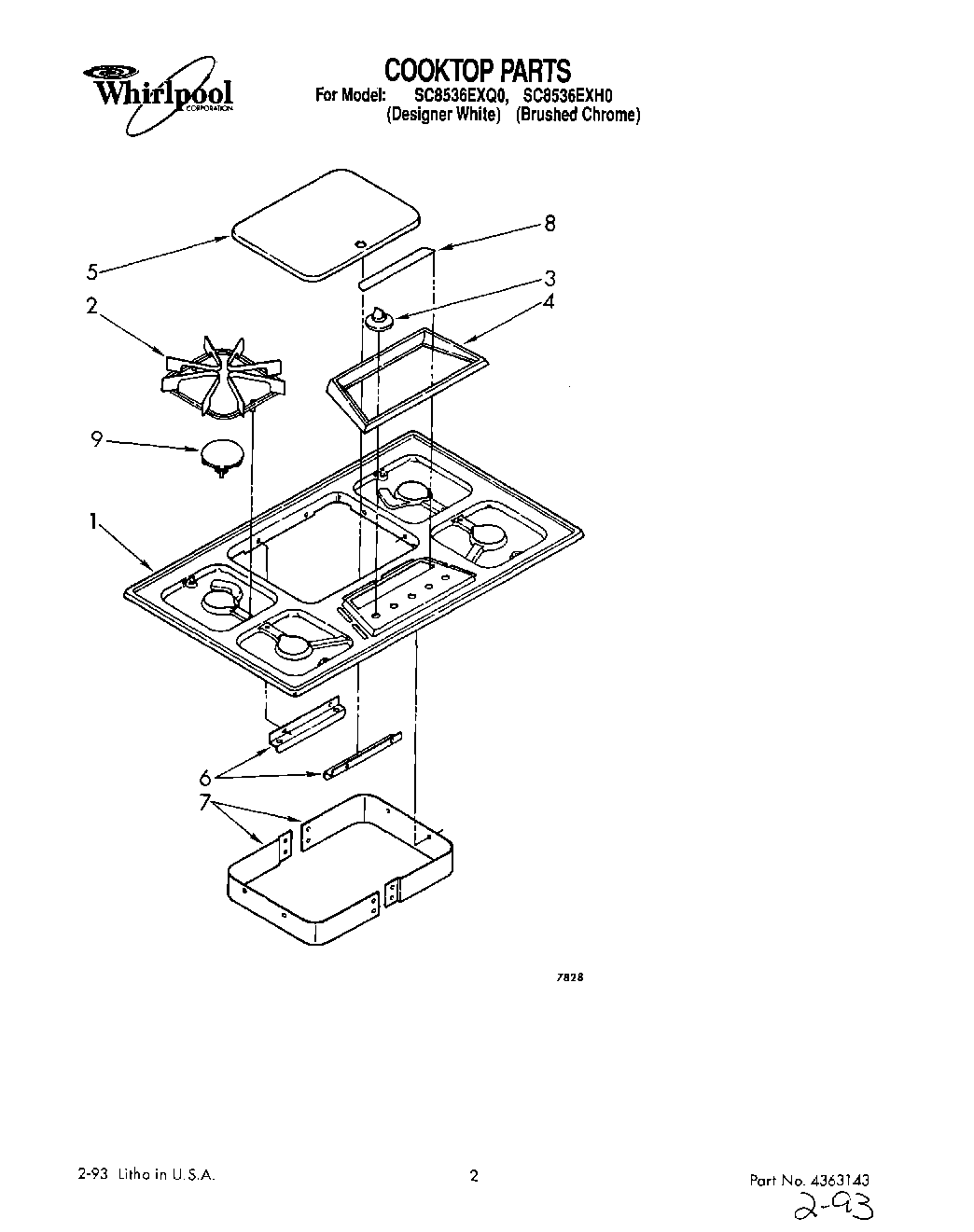

SC8536EXH0 01 – COOKTOP

Products

PositionProduct
1Cooktop (Brush Chrome)
1Cooktop (White)
2Grate, Top Burner
2Grate, Top Burner
3Knob, Control (5) (Black (Brushed Chrome Model))
3Knob, Control (5) (White (Designer White Model))
4Trim, Cooktop
4Trim, Control Panel (White)
5Cover, Griddle (White)
5Cover, Brush chrome
6Support, Griddle
7Baffle, Griddle (Left)
8Nameplate
8Nameplate (White (Designer White Model))
9Burner Cap
9Burner Cap
