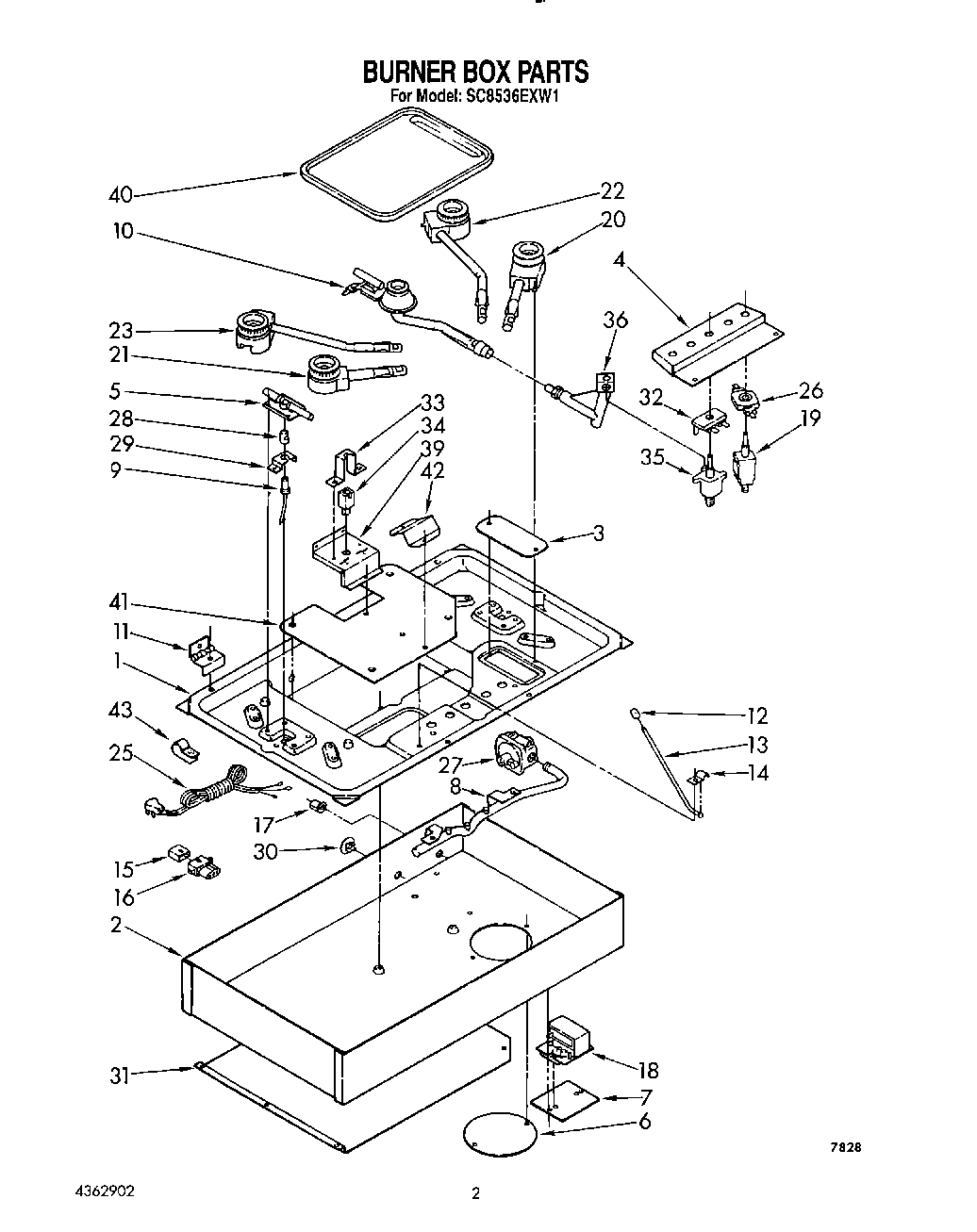

SC8536EXW1 02 – BURNER BOX

Products

Position	Product
	List, Repair Parts
	Guide, Cooking
	Guide, Use & Care
	Instruction, Installation
1	Burner Box
2	Casing, Burner Box
3	Cover, Access
4	WP90767 Whirlpool Screw
4	Cover, Switch
5	Tube, Flash (2)
6	Screw, 8-18 X 1/4 (2)
6	Cover, Access
7	Plate, Module
8	Pipe, Manifold
9	Electrode (2)
10	Burner, Griddle
11	Hinge (2)
11	Screw, 10-24 X 1/4 (1)
11	WP313808 Whirlpool Screw
12	Tip, Rod
13	Rod, Support
14	Clamp, Rod
15	353424 Whirlpool Connector
16	Block, Disconnect
17	Strain Relief
18	Module, Spark
19	Valve (4)
20	Burner (Right Front)
21	Burner (Left Front)
22	Burner (Right Rear)
23	Burner (Left Rear)
25	Cord, Power
26	Switch, Valve (4)
27	Pressure Regulator
28	Cap (2)
29	WP489128 Whirlpool Refrigerator Screw
29	Bracket (2)
30	Hole Plug
31	Baffle
32	Switch
33	Strap, Ground
34	Electrode
35	Valve, Griddle
36	Extension, Valve
39	Support, Burner
40	Griddle
41	Baffle, Burner
42	Reflector
43	Clamp
