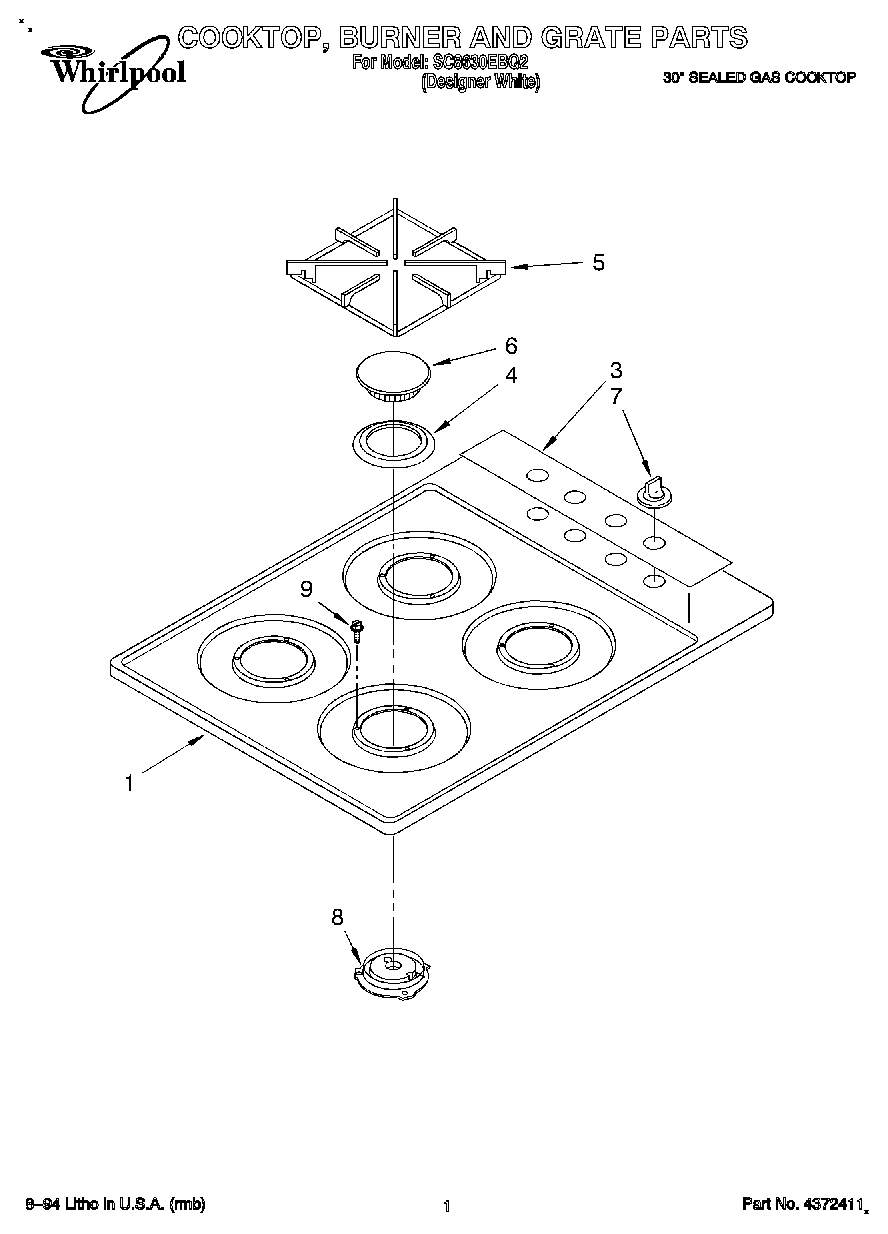

SC8630EBQ2 01 – COOKTOP, BURNER AND GRATE

Written by

Products

Position	Product
1	Cooktop
3	Panel, Control
4	Ring, Trim (4)
5	Grate (4)
6	Cap, Burner (4)
7	Knob, Control (4)
8	Burner, Sealed (Complete) See Parts Page For Further Breakdown
9	Screw, Burner Mounting (12)
9	20“ Ignitor Wire
9	30“ Ignitor Wire
9	36“ Ignitor Wire
9	Hi-Voltage Wire
9	14“ Ignitor Wire
