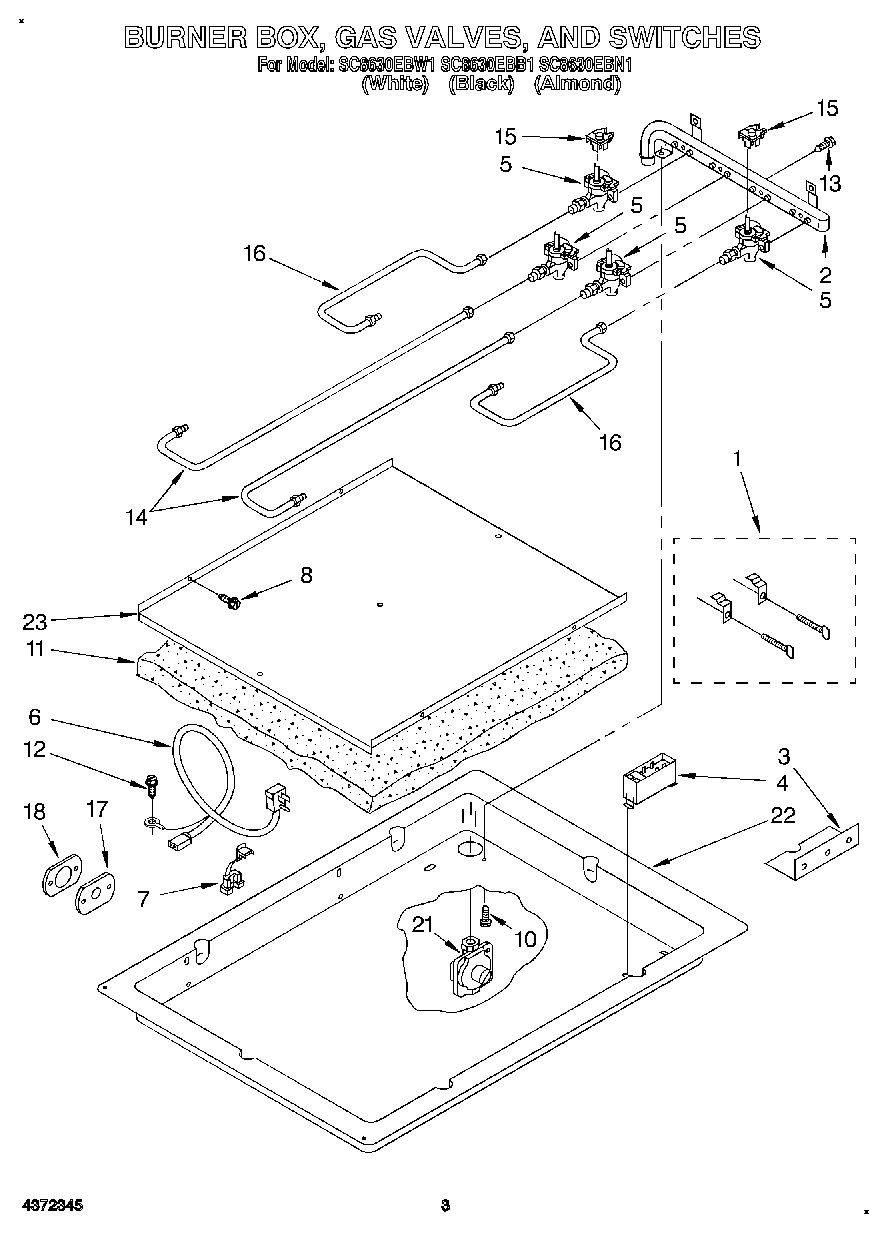

SC8630EBW1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

SC8630EBW1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

SC8630EBW1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Guide, Cooking
Owners Manual
Installation Instructions
1Bracket, Mounting Kit (Cooktop To Burner Box)
2Pipe, Manifold
3Support, Main Top
4Ignitor Module
5Valve, Burner (4)
6Power Cord
7Bushing, Cord
10Screw, Manifold To Burner Box (3)
11Insulation, Bottom
12WP3351614 Whirlpool Screw
13WP3186217 Whirlpool Screw
14Tubing, Burner (LF & LR)
15Switch, Ignitor
16Tubing, Burner
17Seal, Rubber
18Coverplate
21Regulator, Pressure
22Box, Burner
23Shield, Heat
