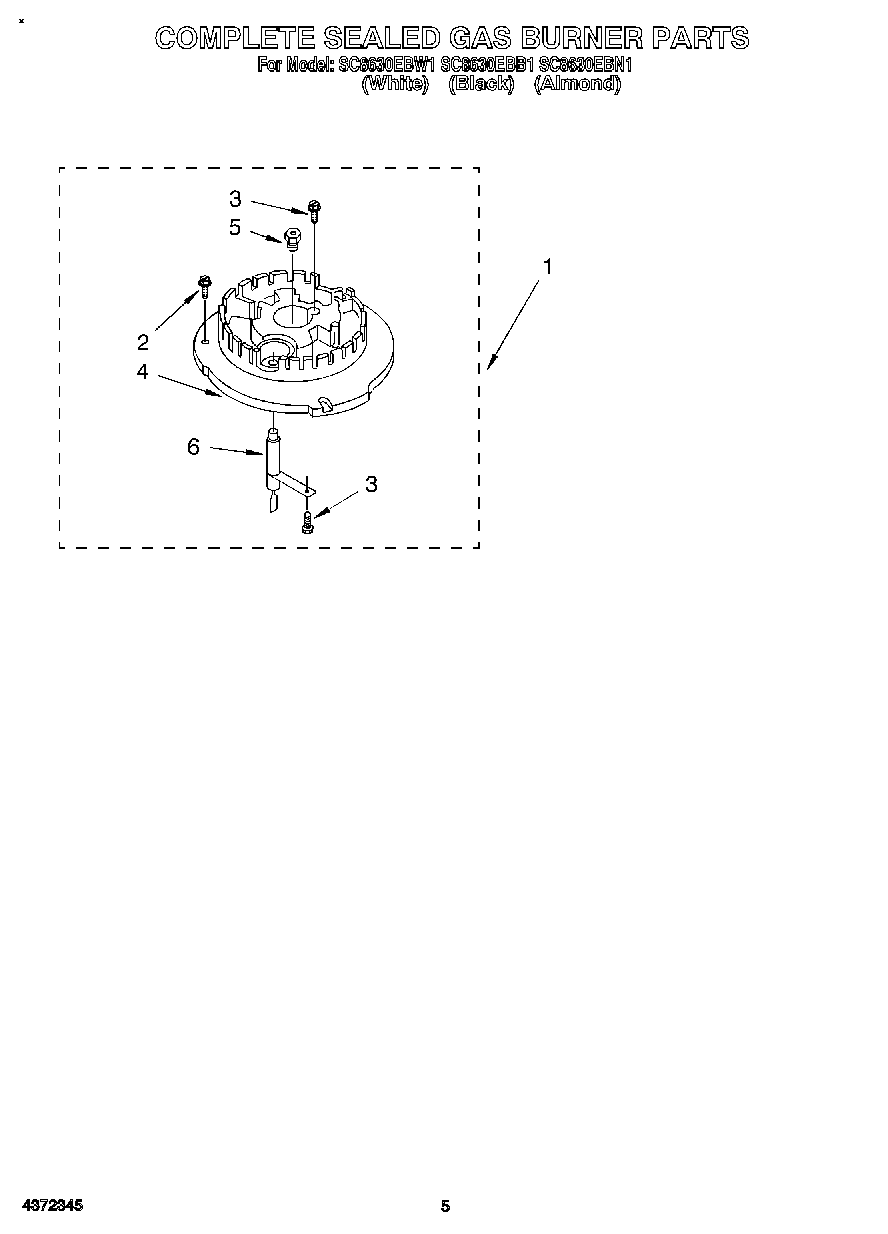

SC8630EBW1 03 – COMPLETE SEALED GAS BURNER

Written by

Products

Position	Product
1	Burner, Sealed (Complete) See Parts Page For Further Breakdown
2	Screw, Burner Mounting (12)
3	Screw, Electrode
4	Burner Head (Includes Illus 2)
5	Orifice
6	Bracket & Electrode
6	Gas Conversion Kit (Natural Gas To LP Gas)
