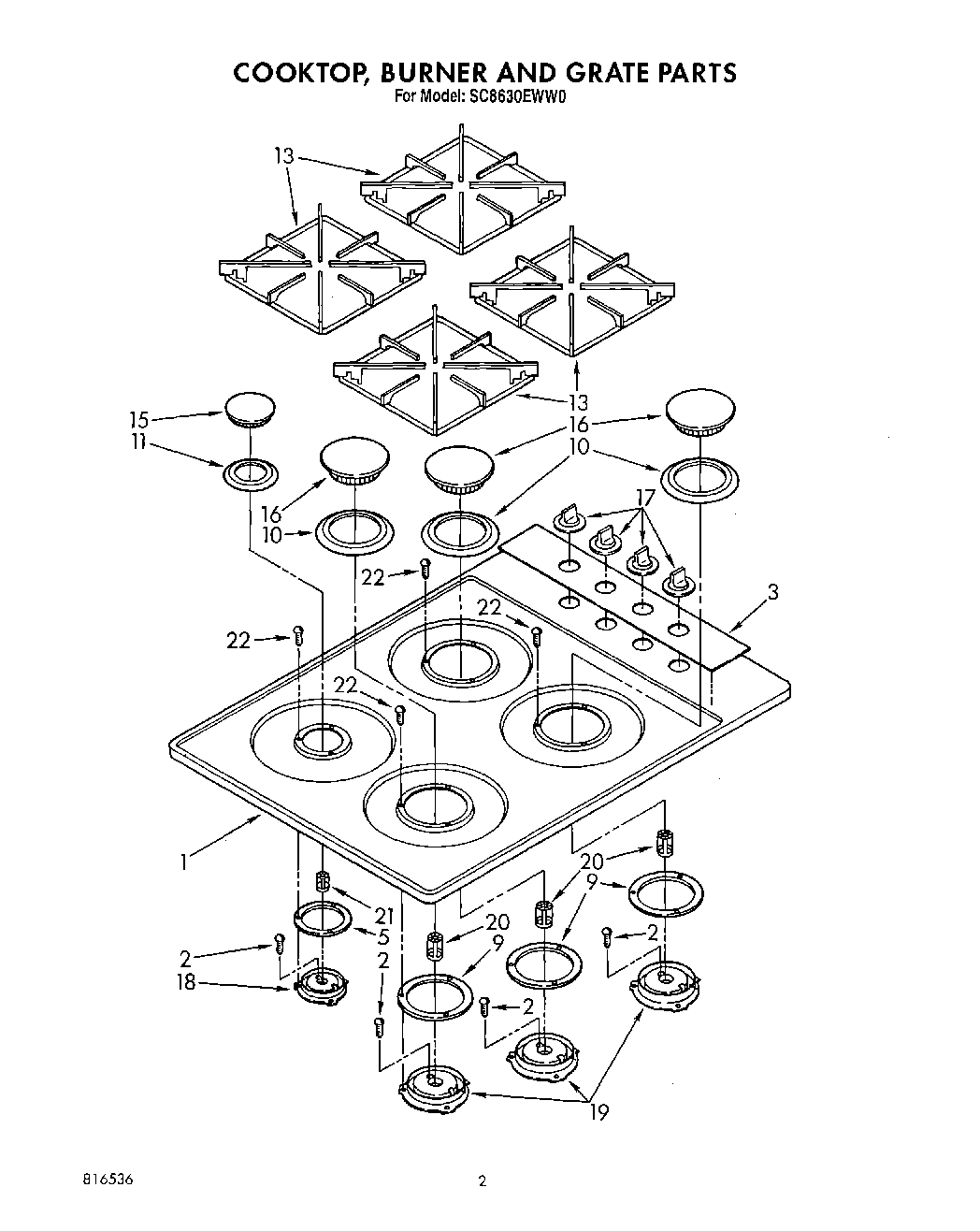

SC8630EWW0 02 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop (White)
2	Screw, Burner
3	Panel, Control
5	Seal, Burner (Small)
9	Seal, Burner (Large)
10	Ring, Trim (Large)
11	Ring, Trim (Small)
13	Grate
15	Cap, Burner (Small)
16	Cap, Burner (Large)
17	Knob, Control (4)
18	Burner, Small Sealed Gas Burner (Complete) See page For Further Breakdown.
19	Burner, Large Sealed Gas (Complete) See Page For Further Breakdown.
20	Shutter, Burner Air (Use With Large Burner)
21	Shutter, Burner Air (Use With Small Burner)
22	Ignition Harness
22	Hi-Voltage Wire
22	20“ Ignitor Wire
22	14“ Ignitor Wire
22	Screw, Gas Burner Mounting (12)
22	36“ Ignitor Wire
22	30“ Ignitor Wire
