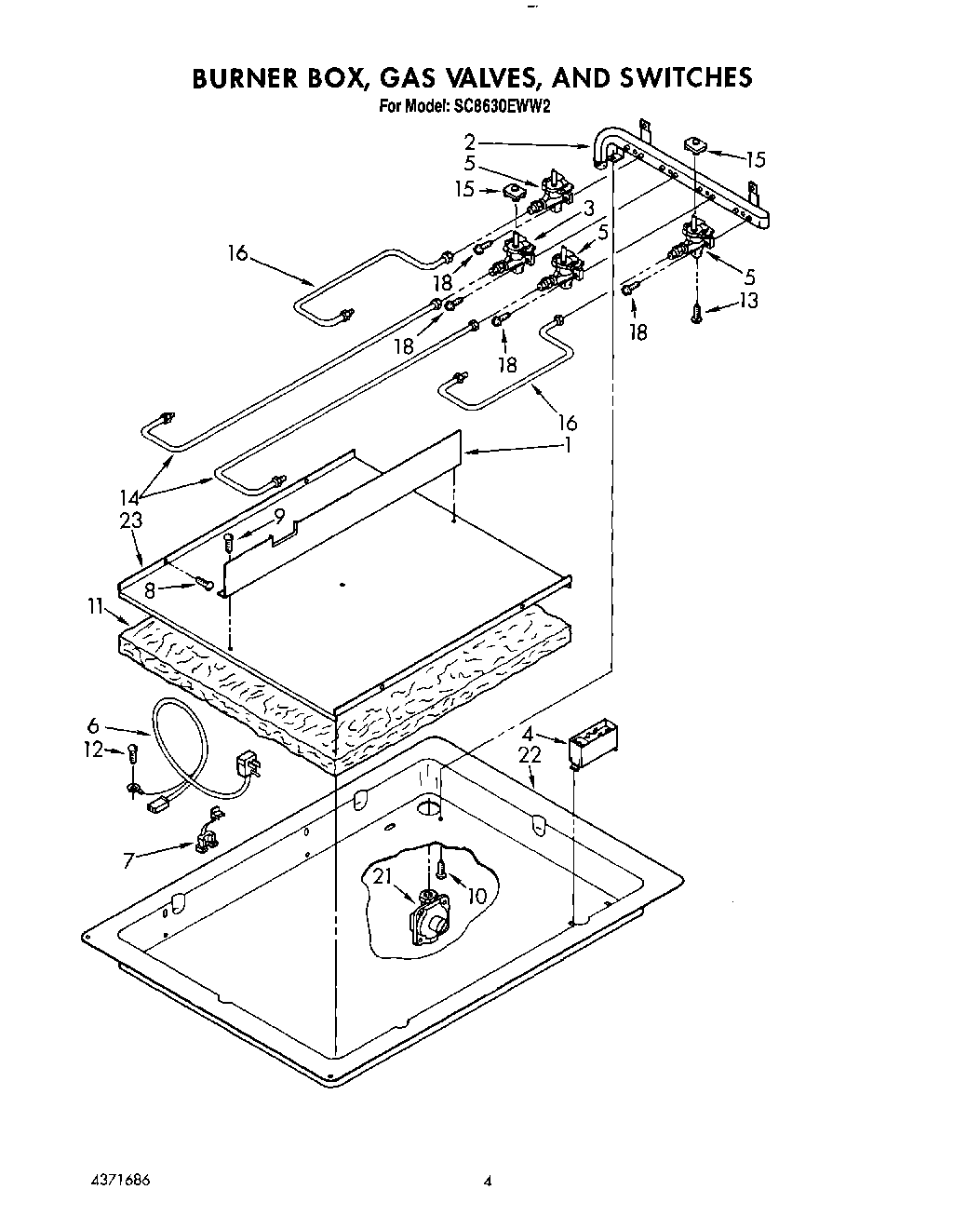

SC8630EWW2 04 – BURNER BOX, GAS VALVES, AND SWITCHES

SC8630EWW2 04 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

SC8630EWW2 04 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
List, Repair Parts
Installation Instructions
Owners Manual
Guide, Cooking
1Support, Main Top
2Pipe, Manifold
3Valve, Gas Burner (Small)
4Spark Module
5Valve, Gas Burner (Large)
6Power Cord
7Bushing, Cord
9Screw, Support To Shield (3)
10Screw, Manifold To Burner Box (3)
11Insulation, Bottom
12WP3351614 Whirlpool Screw
13Screw, (4) 8-36 x 3/8
14Tubing, Burner (LF & LR)
15Switch, Ignitor
16Tubing, Burner
18WP3186217 Whirlpool Screw
21Regulator, Pressure
22Box, Burner
23Shield, Heat
