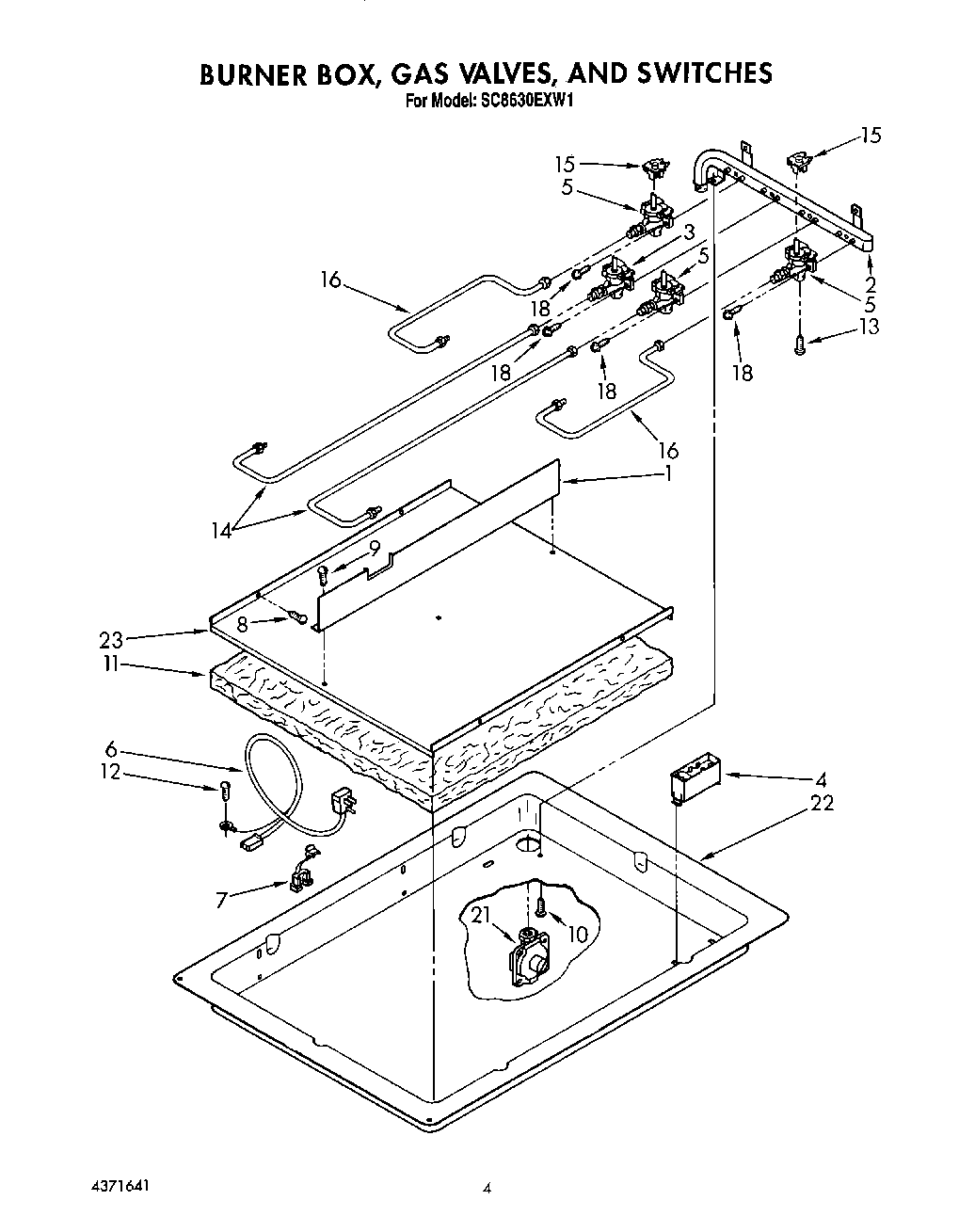

SC8630EXB1 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Guide, Cooking
	List, Repair Parts
	Owners Manual
	Installation Instructions
	Wiring Diagram
1	Support, Main Top
2	Pipe, Manifold
3	Valve, Gas Burner (Small)
4	Spark Module
5	Valve, Gas Burner (Large)
6	Power Cord
7	Bushing, Cord
9	Screw, Support To Shield (3)
10	Screw, Manifold To Burner Box (3)
11	Insulation, Bottom
12	WP3351614 Whirlpool Screw
13	Screw, (4) 8-36 x 3/8
14	Tubing, Burner (LF & LR)
15	Switch, Ignitor
16	Tubing, Burner
18	Screw, Valve To Manifold Pipe (8) (RF & RR)
21	Regulator, Pressure
22	Box, Burner
23	Shield, Heat
