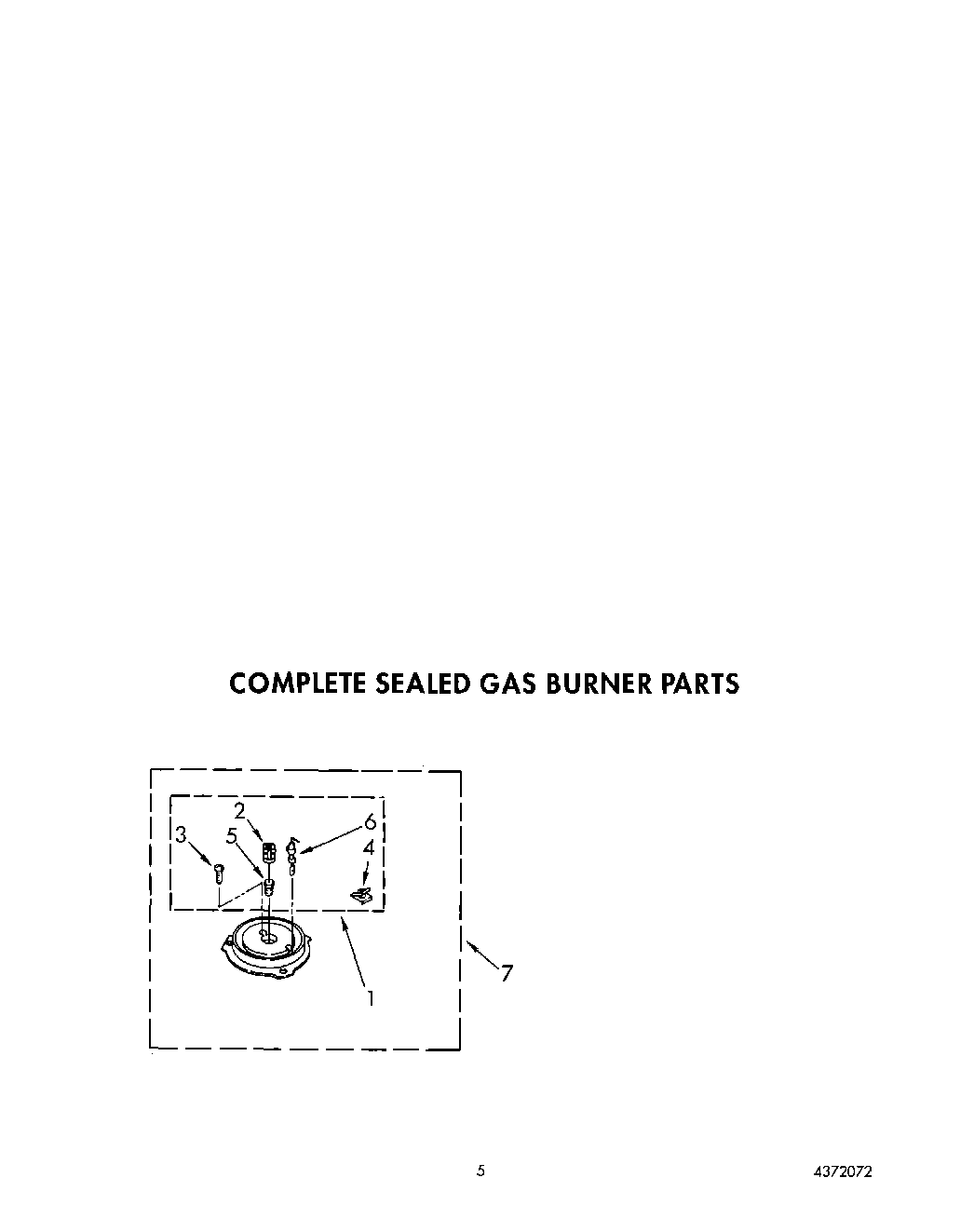

SC8630EXB3 03 – COMPLETE SEALED GAS BURNERadmin2025-04-26T11:21:47+00:00SC8630EXB3 03 – COMPLETE SEALED GAS BURNER
Products
| Position | Product |
|---|
| 1 | Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11)) |
| 1 | Sealed Gas Burner Kit (Large Burner) |
| 2 | Shutter, Air (Available In Kit Only) |
| 3 | Screw, Burner |
| 4 | Clip, Ignitor |
| 5 | Orifice, Burner (Use With Small Burner) |
| 5 | Orifice |
| 6 | Ignitor |
| 7 | Burner, Large Sealed Gas (Complete) See Page For Further Breakdown. |
| 7 | Burner, Small Sealed Gas Burner (Complete) See page For Further Breakdown. |
