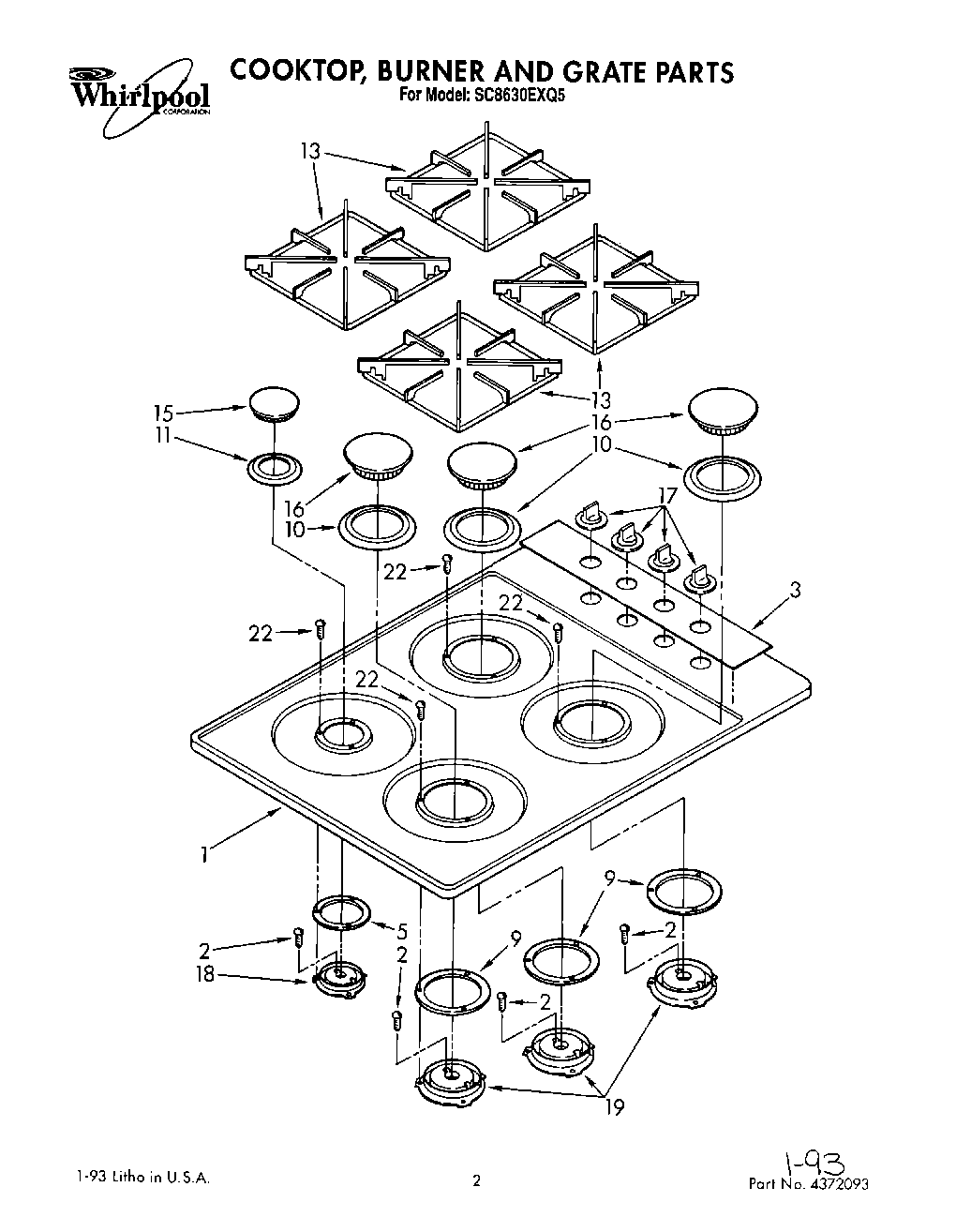

SC8630EXQ5 01 – COOKTOP, BURNER AND GRATE

SC8630EXQ5 01 – COOKTOP, BURNER AND GRATE

Written by

in

SC8630EXQ5 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Cooktop (White)
2Screw, Burner
3Panel, Control
5Seal, Burner (Small)
9Seal, Burner (Large)
10Ring, Trim (3) (Large Burner)
11Ring, Trim (1) (Small Burner)
13Grate
15Cap, Burner (1) (Small Burner)
16Cap, Burner (3) (Large Burner)
17Knob, Control (4)
18Burner, Small Sealed Gas Burner (Complete) See page For Further Breakdown.
19Burner, Large Sealed Gas (Complete) See Page For Further Breakdown.
22Hi-Voltage Wire
22Ignition Harness
2236“ Ignitor Wire
2230“ Ignitor Wire
2220“ Ignitor Wire
2214“ Ignitor Wire
22Screw, Gas Burner Mounting (12)
