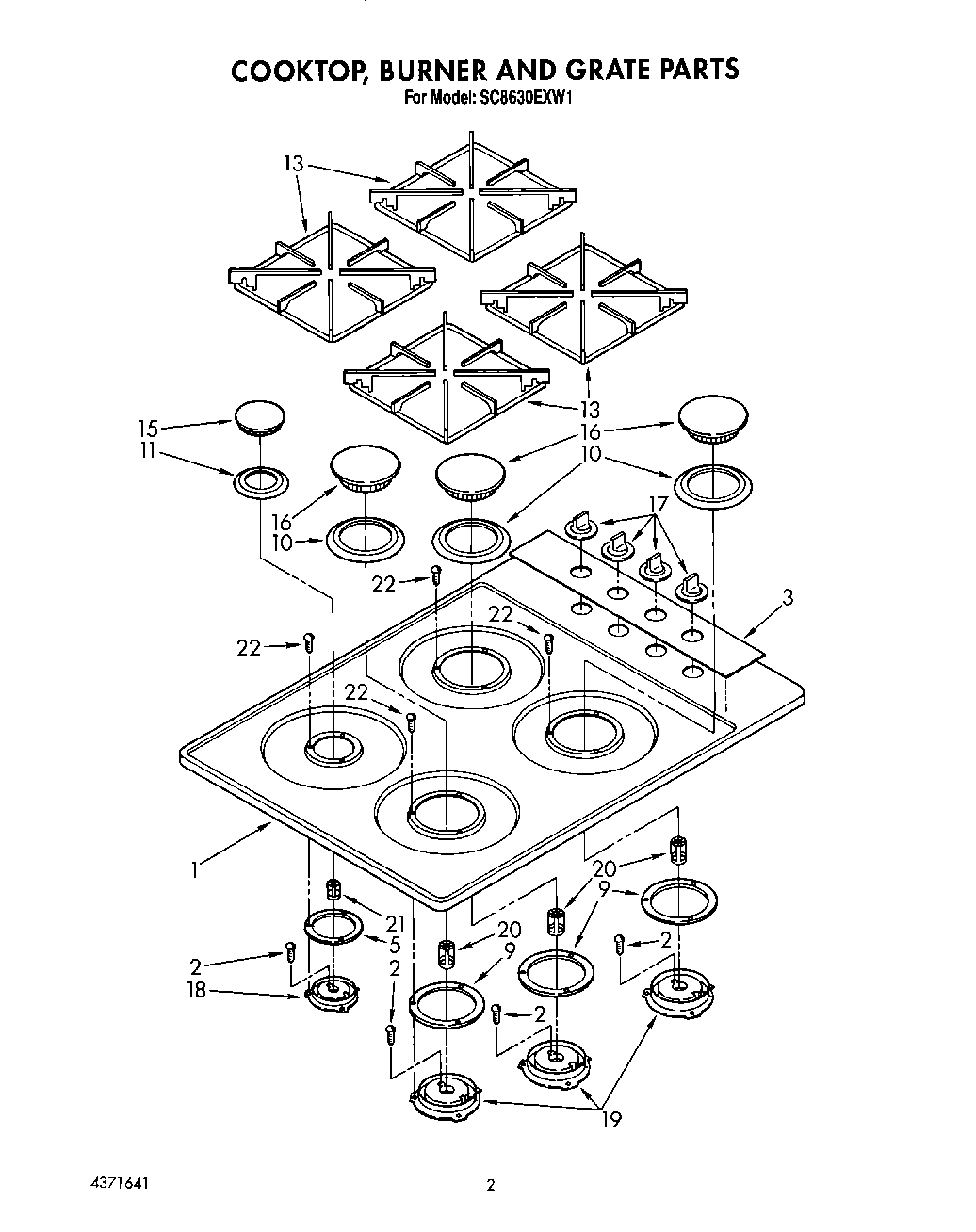

SC8630EXW1 02 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Black)
2	WP3186217 Whirlpool Screw
3	Panel, Control (Wh/Al Models)
3	Panel, Control (Blk Models)
5	Seal, Burner (Small)
9	Seal, Burner (Large)
10	Ring, Trim (Large)
11	Ring, Trim (Small)
13	Grate
15	Cap, Burner (Small)
16	Cap, Burner (Large)
17	Knob, Control (4)
18	Burner, Small Sealed Gas Burner (Complete) See page For Further Breakdown.
19	Burner, Large Sealed Gas (Complete) See Page For Further Breakdown.
20	Shutter, Burner Air (Use With Large Burner)
21	Shutter, Burner Air (Use With Small Burner)
22	Bracket, Mounting Kit (Cooktop To Burner Box)
22	Screw, Gas Burner Mounting (12)
22	Hi-Voltage Wire
22	20“ Ignitor Wire
22	36“ Ignitor Wire
22	30“ Ignitor Wire
22	14“ Ignitor Wire
22	Ignition Harness
