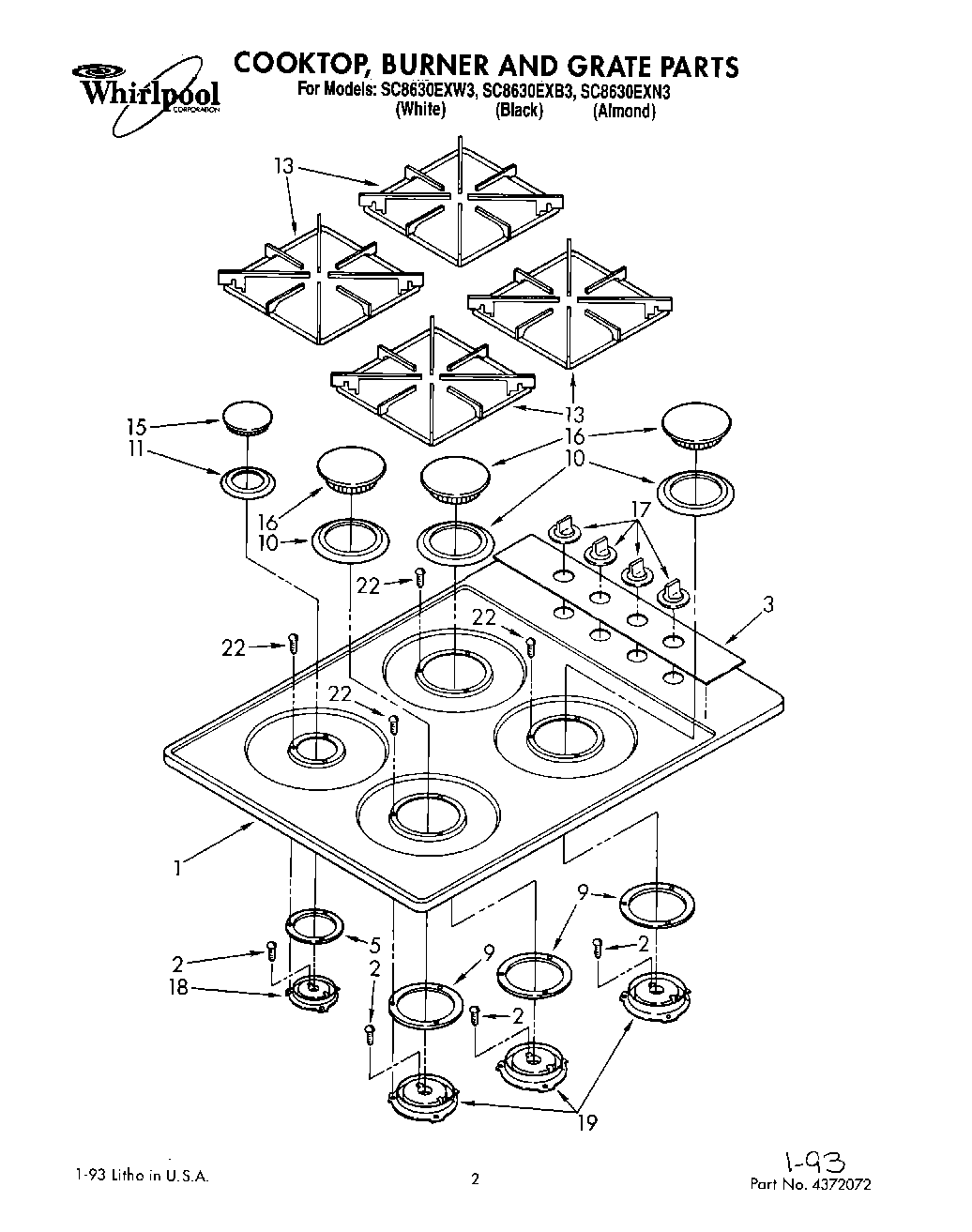

SC8630EXW3 01 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Black)
2	Screw, Burner
3	Panel, Control (Wh/Al Models)
5	Seal, Burner (Small)
9	Seal, Burner (Large)
10	Ring, Trim (Large)
11	Ring, Trim (Small)
13	Grate
15	Cap, Burner (Small)
16	Cap, Burner (Large)
17	Knob, Control (4)
18	Burner, Small Sealed Gas Burner (Complete) See page For Further Breakdown.
19	Burner, Large Sealed Gas (Complete) See Page For Further Breakdown.
22	20“ Ignitor Wire
22	Ignition Harness
22	Hi-Voltage Wire
22	36“ Ignitor Wire
22	30“ Ignitor Wire
22	14“ Ignitor Wire
22	Screw, Gas Burner Mounting (12)
