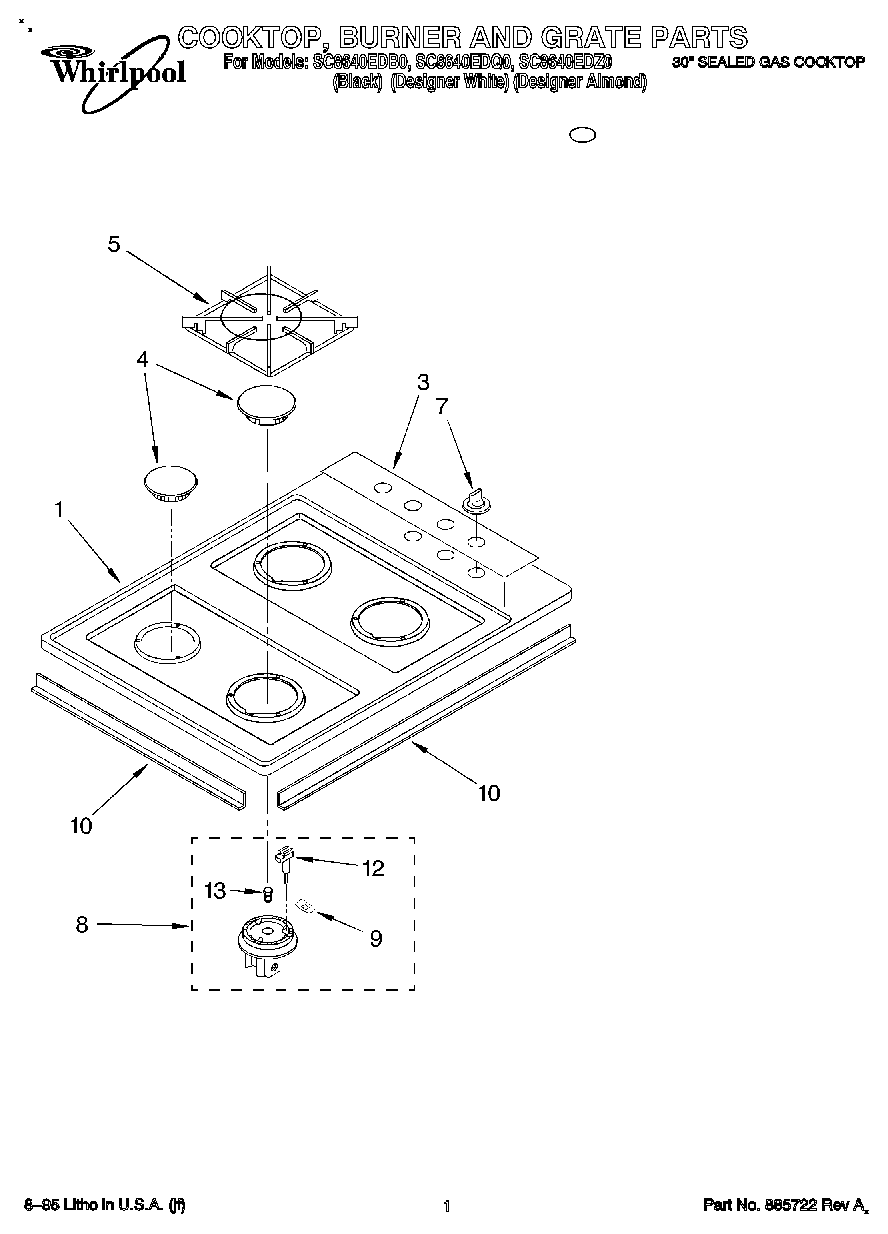

SC8640EDB0 01 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop (Black)
1	Cooktop (White)
1	Cooktop (Almond)
3	Panel, Control (White)
3	Panel, Control (Almond Screw (2))
3	Panel, Control (Black)
3	Back Splash (Screw (4) 10AB x 1/2“)
3	Top, Door Frame (Screw (2))
3	Top, Door Frame (Screw (2))
4	Cap, Rapid Burner Large (2) (Black)
4	Cap, Semi Rapid Small (2) (Black)
4	Cap, Burner Small (1) (Gray (Des. Wht Mdl))
4	(Cap, Burner Large (3)) (Gray (Des. Wht Mdl))
5	Grate (4) (Gray (Des. Wht Mdl))
5	Grate (4) (Black (Blk & Alm Mdls))
7	W10861812 Whirlpool Knob Assembly
7	Knob, Control (4) (Almond)
7	WP3187767 Whirlpool Knob
8	Speed Nut (15)
8	Burner, Small (2)
8	Burner, Large (2)
9	Nut
10	Seal, Foam (2) (Right & Left Side)
10	Seal, Foam (2) (Front & Back Side)
12	Electrode
13	Orifice, Burner (Large Burner)
13	Harness, Wire Light switch
13	Harness, Wire Ignitor
13	WPL 3179589
13	Orifice, Burner (Small Burner)
