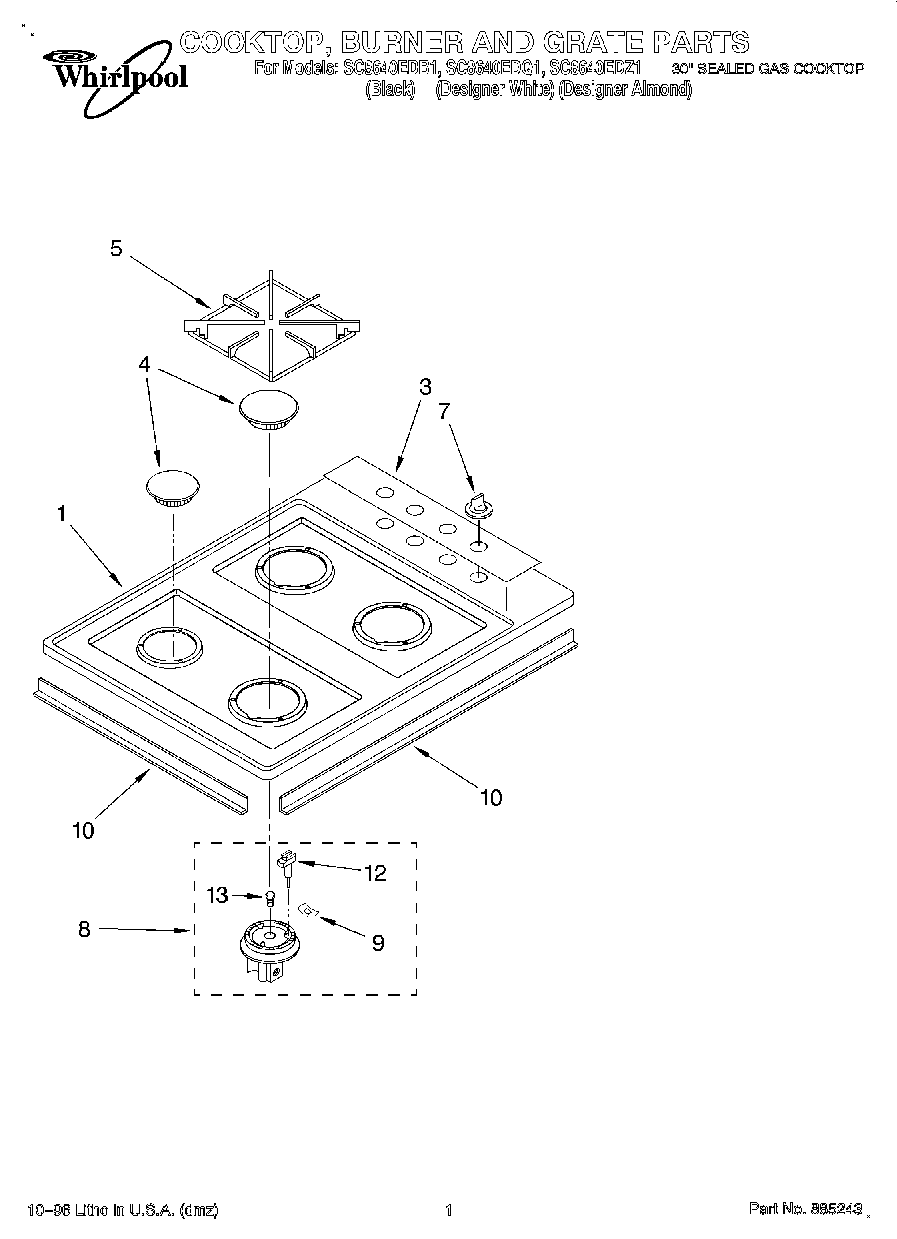

SC8640EDB1 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Cooktop (White)
1Cooktop (Black)
1Cooktop (Almond)
3Panel, Control (White)
3Back Splash (Screw (4) 10AB x 1/2“)
3Panel, Control (Black)
3Top, Door Frame (Screw (2))
3Top, Door Frame (Screw (2))
3Panel, Control (Almond Screw (2))
4Cap, Burner (Large (3)) (Black (Blk & Alm Mdls))
4Cap, Burner Small (1) (Black (Blk & Alm Mdls))
4Cap, Burner (Large (3)) (Gray (Des. Wht Mdl))
4Cap, Burner Small (1) (Gray (Des. Wht Mdl))
5Grate (4) (Black (Blk & Alm Mdls))
5Grate (4) (Gray (Des. Wht Mdl))
7WP3187767 Whirlpool Knob
7W10861812 Whirlpool Knob Assembly
7Knob, Control (4) (Almond)
8Speed Nut (15)
8Burner, Small (2)
8Burner, Large (2)
9Nut
10Seal, Foam (2) (Front & Back Side)
10Seal, Foam (2) (Right & Left Side)
12Electrode
13Harness, Wire Light switch
13Harness, Wire Ignitor
13Orifice, Burner (Small Burner)
13Orifice, Burner (Large Burner)
13WPW10339879 Whirlpool Wire Tie
