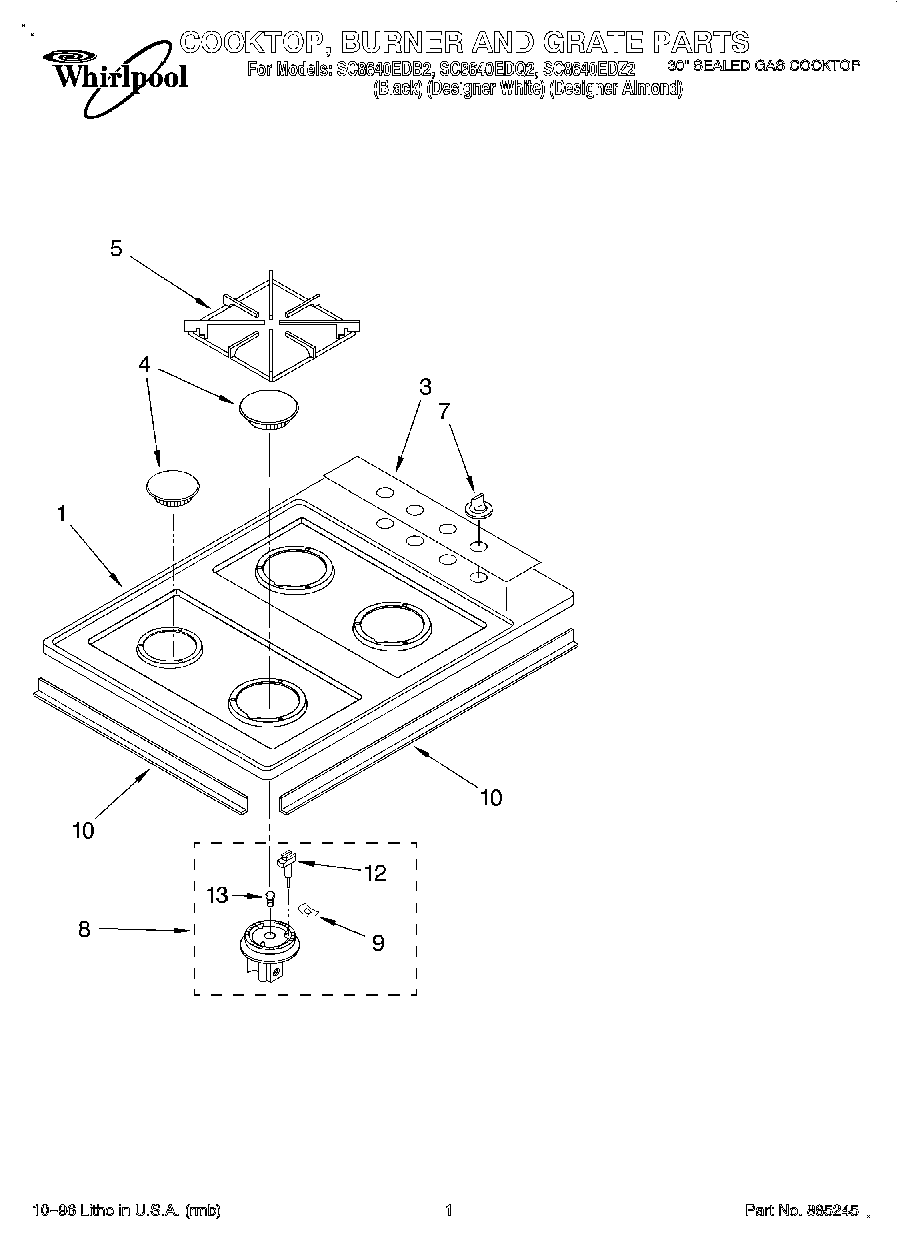

SC8640EDB2 01 – COOKTOP, BURNER AND GRATEadmin2025-04-26T11:23:27+00:00SC8640EDB2 01 – COOKTOP, BURNER AND GRATE
Products
| Position | Product |
|---|
| 1 | Cooktop (White) |
| 1 | Cooktop (Almond) |
| 1 | Cooktop (Black) |
| 3 | Panel, Control (White) |
| 3 | Panel, Control (Almond Screw (2)) |
| 3 | Panel, Control (Black) |
| 3 | Back Splash (Screw (4) 10AB x 1/2``) |
| 3 | Top, Door Frame (Screw (2)) |
| 3 | Top, Door Frame (Screw (2)) |
| 4 | Cap, Burner (Large (3)) (Gray (Des. Wht Mdl)) |
| 4 | Cap, Burner Small (1) (Black (Blk & Alm Mdls)) |
| 4 | Cap, Burner (Large (3)) (Black (Blk & Alm Mdls)) |
| 4 | Cap, Burner Small (1) (Gray (Des. Wht Mdl)) |
| 5 | Grate (4) (Gray (Des. Wht Mdl)) |
| 5 | Grate (4) (Black (Blk & Alm Mdls)) |
| 7 | W10861812 Whirlpool Knob Assembly |
| 7 | WP3187767 Whirlpool Knob |
| 7 | Knob, Control (4) (Almond) |
| 8 | Speed Nut (15) |
| 8 | Burner, Small (2) |
| 8 | Burner, Large (2) |
| 9 | Nut |
| 10 | Seal, Foam (2) (Front & Back Side) |
| 10 | Seal, Foam (2) (Right & Left Side) |
| 12 | Electrode |
| 13 | Harness, Wire Light switch |
| 13 | Orifice, Burner (Large Burner) |
| 13 | Orifice, Burner (Small Burner) |
| 13 | Harness, Wire Ignitor |
