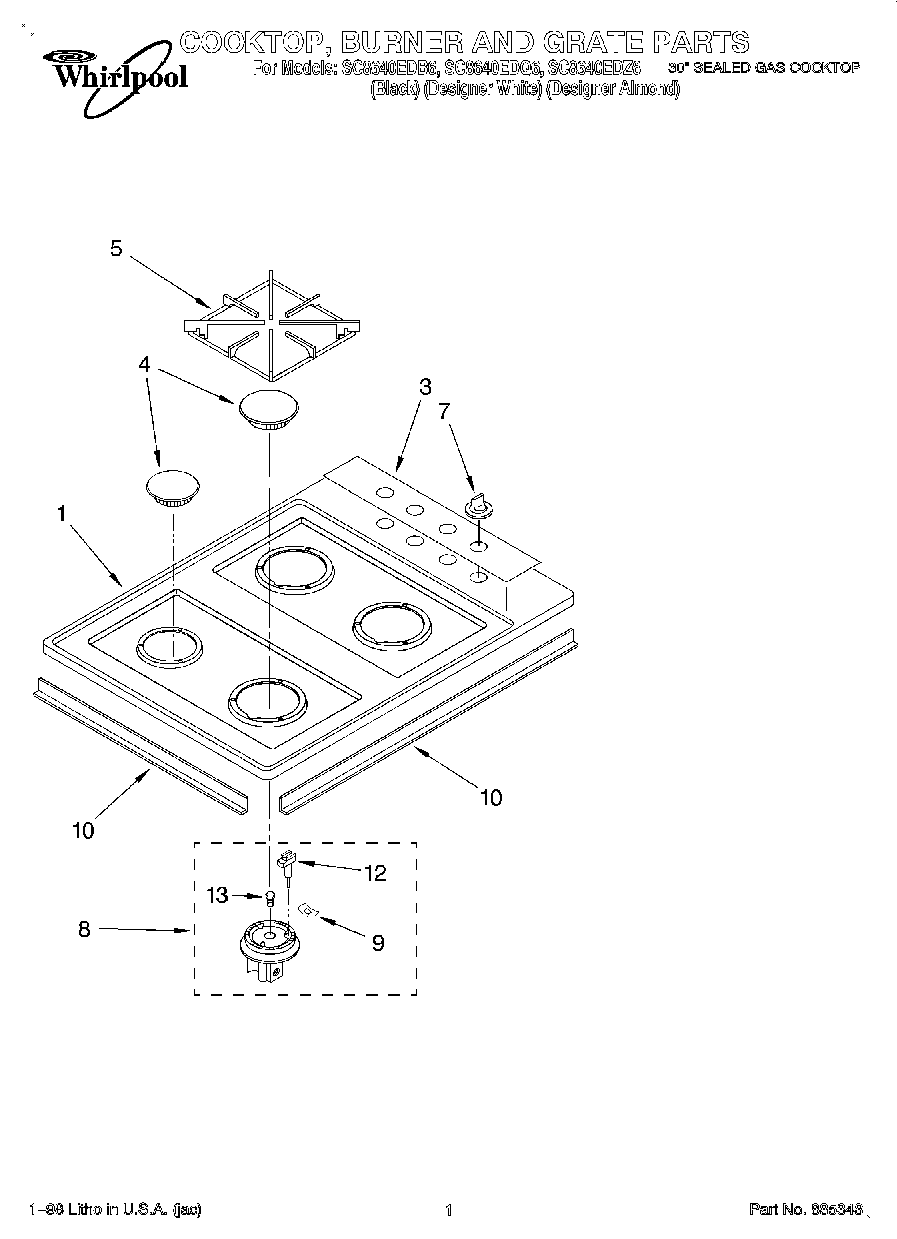

SC8640EDB6 01 – COOKTOP, BURNER AND GRATE
Written by
in
SC8640EDB6 01 – COOKTOP, BURNER AND GRATE
Products
Position
Product
1
Cooktop (Black)
1
Cooktop (Almond)
1
Cooktop (White)
3
Panel, Control (Almond Screw (2))
3
Panel, Control (Black)
3
Top, Door Frame (Screw (2))
3
Top, Door Frame (Screw (2))
3
Panel, Control (White)
3
Back Splash (Screw (4) 10AB x 1/2“)
4
Cap, Burner Small (1) (Gray (Des. Wht Mdl))
4
Cap, Burner (Large (3)) (Gray (Des. Wht Mdl))
4
Cap, Burner Small (1) (Black (Blk & Alm Mdls))
4
Cap, Burner (Large (3)) (Black (Blk & Alm Mdls))
5
Grate (4) (Gray (Des. Wht Mdl))
5
Grate (4) (Black (Blk & Alm Mdls))
7
Knob, Control (4) (Almond)
7
W10861812 Whirlpool Knob Assembly
7
WP3187767 Whirlpool Knob
8
Burner, Large (2)
8
Speed Nut (15)
8
Burner, Small (2)
9
Nut
10
Seal, Foam (2) (Front & Back Side)
10
Seal, Foam (2) (Right & Left Side)
12
Electrode
13
Harness, Wire Ignitor
13
WPW10339879 Whirlpool Wire Tie
13
Orifice, Burner (Large Burner)
13
Orifice, Burner (Small Burner)
13
Harness, Wire Light switch
←
