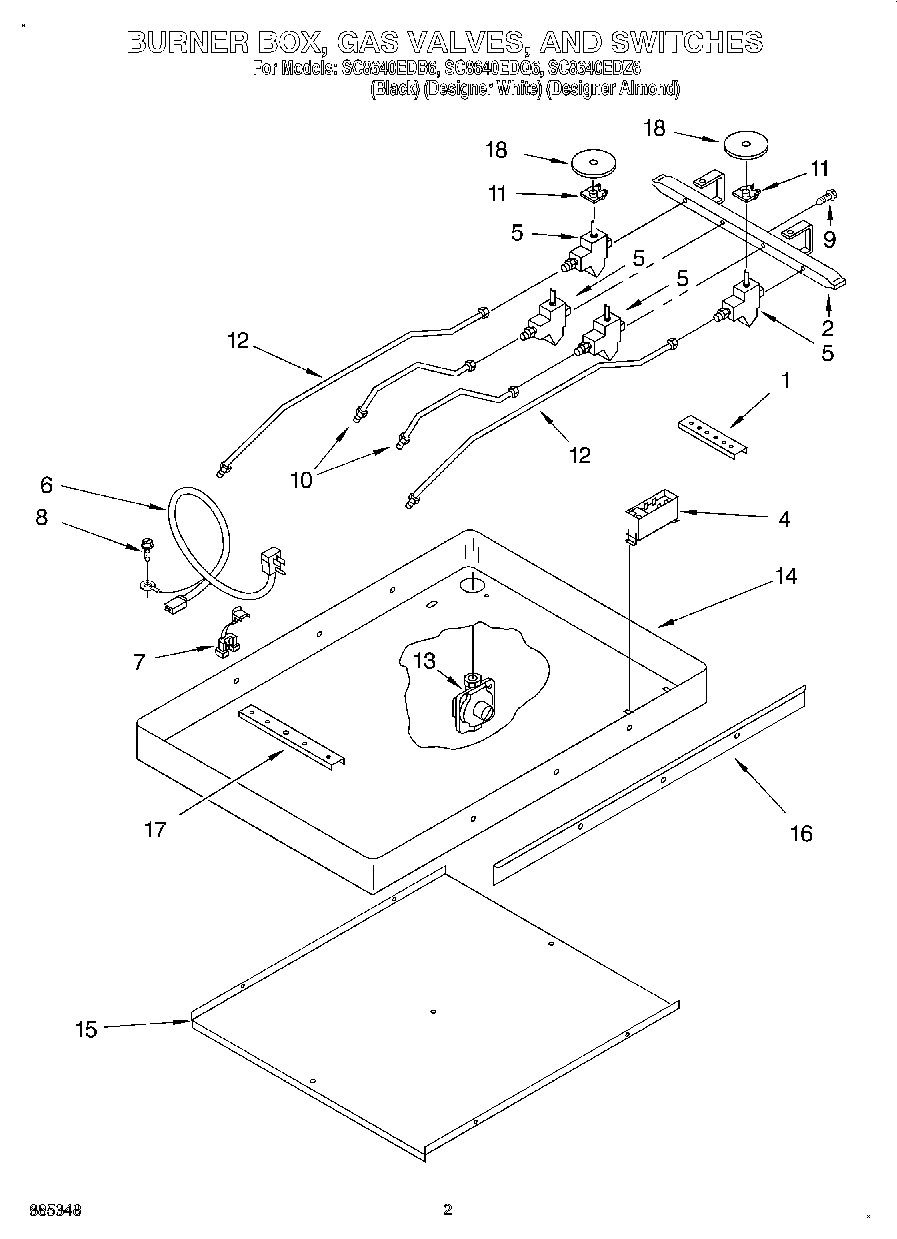

SC8640EDB6 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Hardware, Mounting
Installation Instructions
Use And Care Guide
Gas Conversion Kit (Natural Gas To LP Gas)
Wiring Diagram
Safer Cooking Tips
1Nut, Tinnerman (2)
18186533 Whirlpool Hardware
1Screw
2Pipe, Manifold
4WPW10110491 Whirlpool Spark Module
5Valve, Burner (Large (3))
5Valve, Burner (Small (1))
63188867 Whirlpool Oven Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt (Gas Valve)
10Tubing, Burner RR & RF
11WP3190779 Whirlpool Igniter Switch
12Tubing, Burner LR & LF
13Regulator, Pressure
14Box, Burner
15Shield, Heat
15Screw (2)
16Flange (2)
16Screw
17Bracket, Mtg. (2)
17Screw
18WP3188425 Whirlpool Seal Switch
