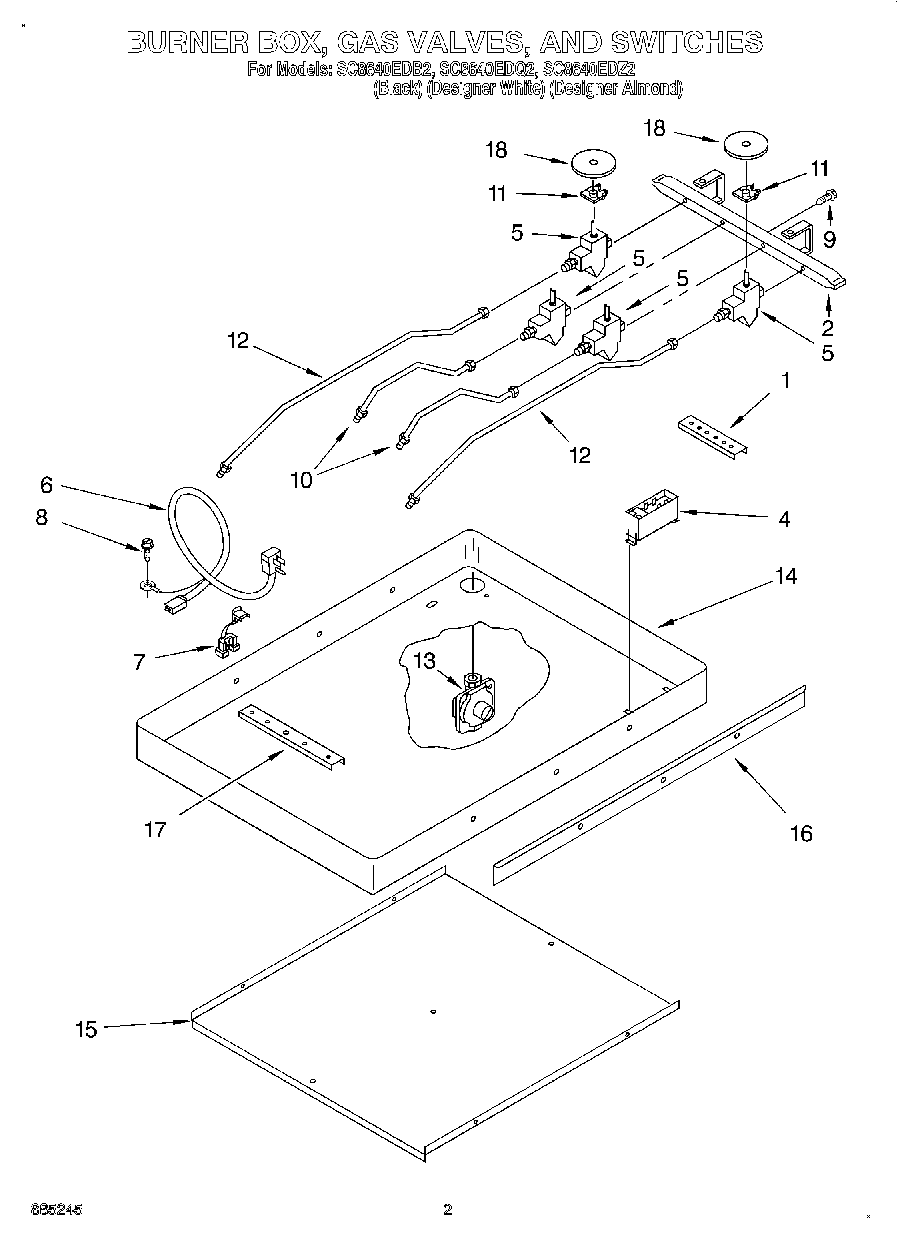

SC8640EDQ2 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Use And Care Guide
	Installation Instructions
	Wiring Diagram
	Gas Conversion Kit (Natural Gas To LP Gas)
	Hardware Assembly
1	8186533 Whirlpool Hardware
1	Screw
1	Nut, Tinnerman (2)
2	Pipe, Manifold
4	WPW10110491 Whirlpool Spark Module
5	Valve, Burner (Small (1))
5	Valve, Burner (Large (3))
6	3188867 Whirlpool Oven Power Cord
7	4173634 Whirlpool Bushing
8	WP3177991 Whirlpool Screw
9	Bolt (Gas Valve)
10	Tubing, Burner RR & RF
11	Switch, (4) Ignitor
12	Tubing, Burner LR & LF
13	Regulator, Pressure
14	Box, Burner
15	Screw (2)
15	Shield, Heat
16	Flange (2)
16	Screw
17	Screw
17	Bracket, Mtg. (2)
18	WP3188425 Whirlpool Seal Switch
