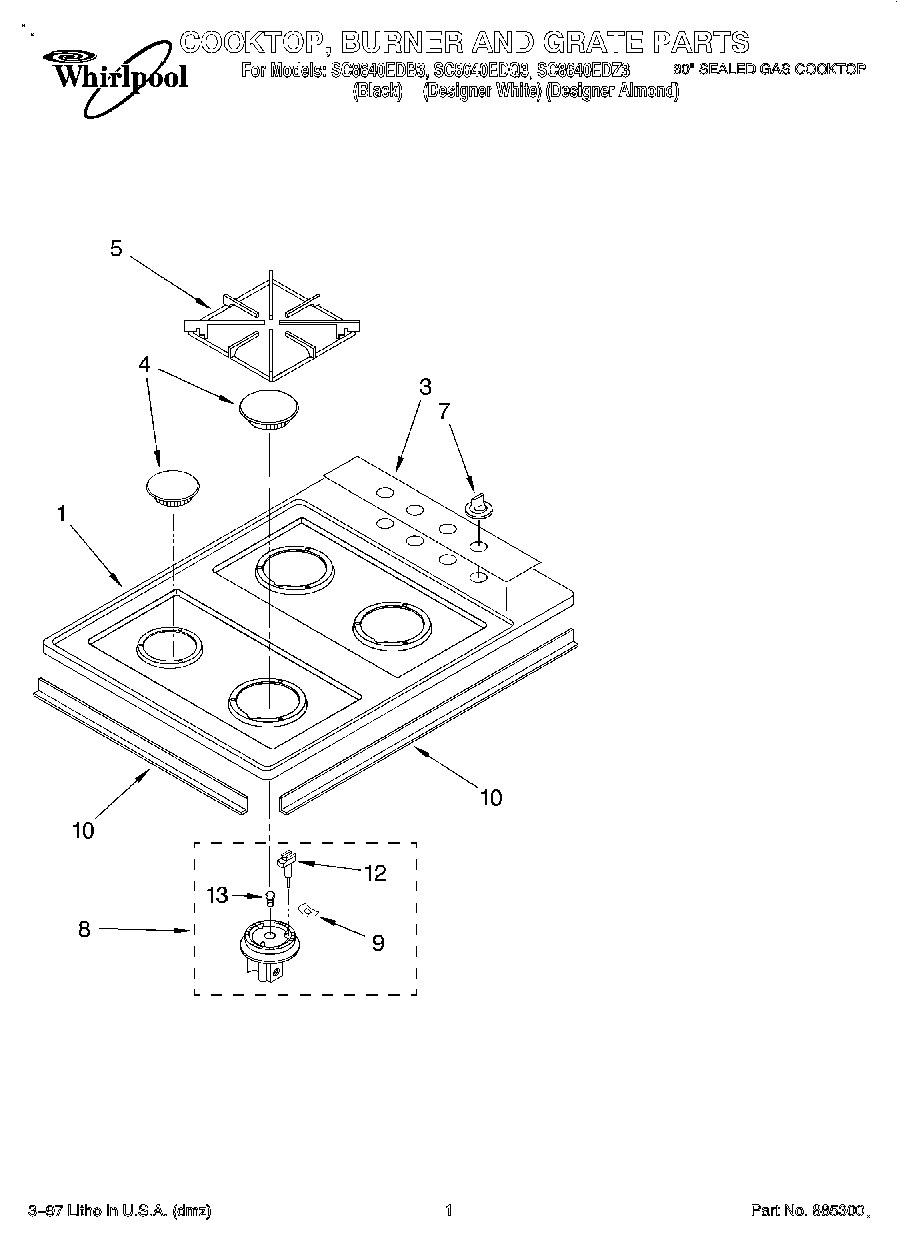

SC8640EDZ3 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Cooktop (Black)
1Cooktop (White)
1Cooktop (Almond)
3Panel, Control (White)
3Panel, Control (Almond Screw (2))
3Panel, Control (Black)
3Back Splash (Screw (4) 10AB x 1/2“)
3Top, Door Frame (Screw (2))
3Top, Door Frame (Screw (2))
4(Cap, Burner Large (3)) (Gray (Des. Wht Mdl))
4Cap, Burner Small (1) (Gray (Des. Wht Mdl))
4Cap, Rapid Burner Large (2) (Black)
4Cap, Semi Rapid Small (2) (Black)
5Grate (4) (Black (Blk & Alm Mdls))
5Grate (4) (Gray (Des. Wht Mdl))
7Knob, Control (4) (Almond)
7WP3187767 Whirlpool Knob
7W10861812 Whirlpool Knob Assembly
8Burner, Small (2)
8Burner, Large (2)
8Speed Nut (15)
9Nut
10Seal, Foam (2) (Right & Left Side)
10Seal, Foam (2) (Front & Back Side)
12Electrode
13Harness, Wire Light switch
13Orifice, Burner (Large Burner)
13Orifice, Burner (Small Burner)
13Harness, Wire Ignitor
