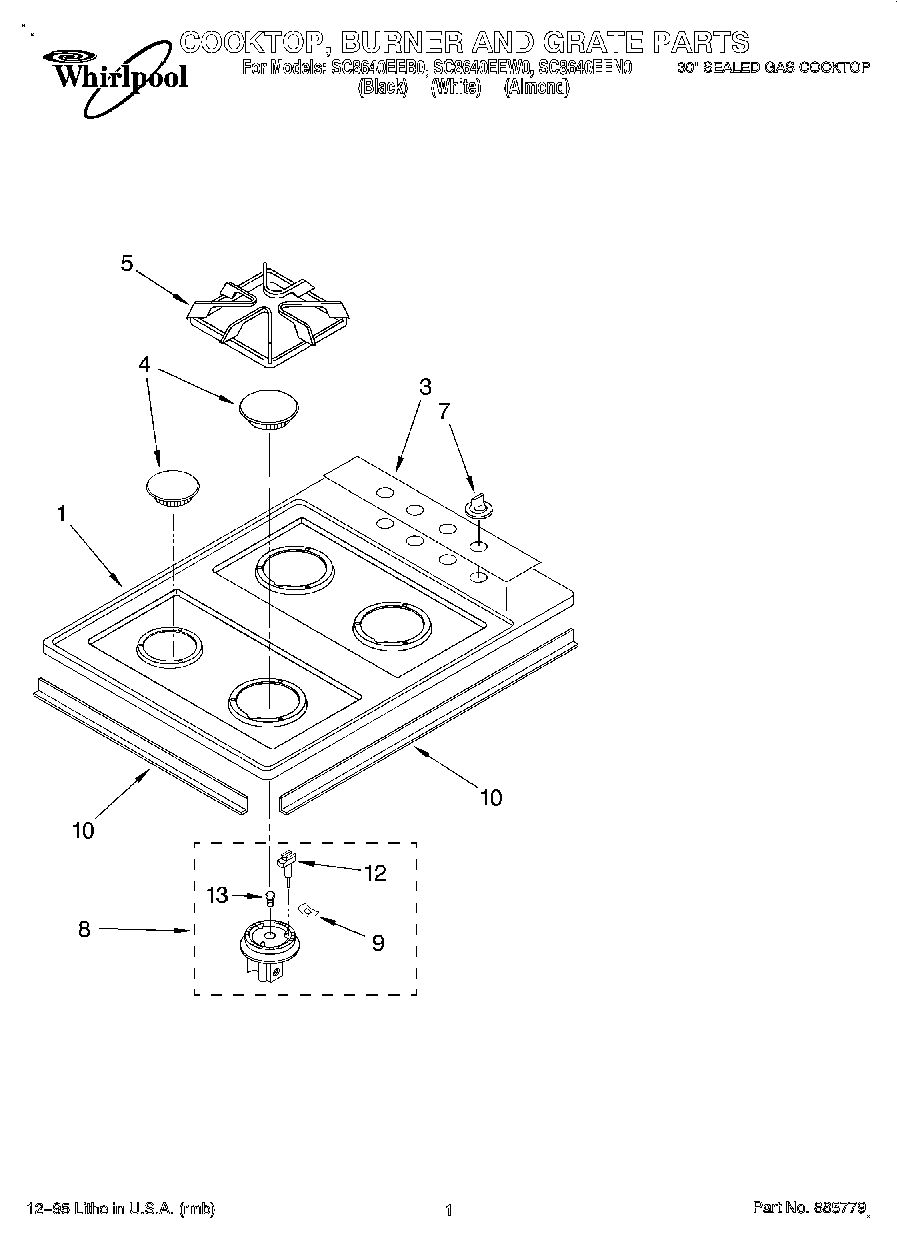

SC8640EEN0 01 – COOKTOP, BURNER AND GRATE

Products

PositionProduct
1Cooktop (Black)
1Cooktop (White)
1Cooktop (Almond)
3Panel, Control (White)
3Panel, Control (Almond Screw (2))
3Panel, Control (Black)
3Back Splash (Screw (4) 10AB x 1/2“)
3Top, Door Frame (Screw (2))
3Top, Door Frame (Screw (2))
4Cap, Burner (Small (1))
4Cap, Burner (Large (3))
5Grate (4)
7Knob, Control (4) (Almond)
7W10861812 Whirlpool Knob Assembly
7WP3187767 Whirlpool Knob
8Speed Nut (15)
8Burner, Large (2)
8Burner, Small (2)
9Nut
10Seal, Foam (2) (Front & Back Side)
10Seal, Foam (2) (Right & Left Side)
12Electrode
13Harness, Wire Ignitor
13Orifice, Burner (Large Burner)
13WPL 3179589
13Orifice, Burner (Small Burner)
13Harness, Wire Light switch
