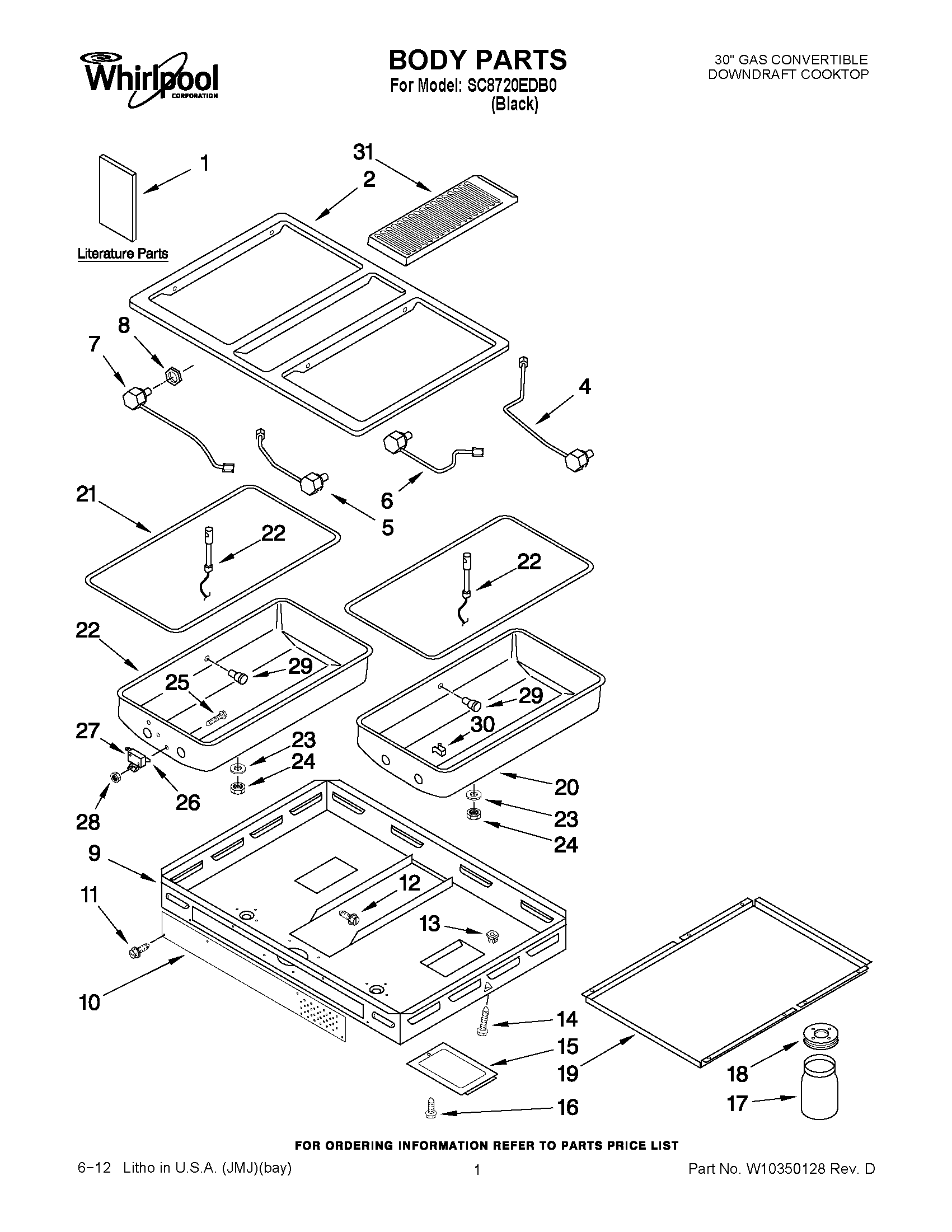

SC8720EDB0 01 – BODY PARTS

SC8720EDB0 01 – BODY PARTS

Written by

in

SC8720EDB0 01 – BODY PARTS

Products

PositionProduct
1CARD, FLOW TEST
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1DIAGRAM, WIRING
1OWNERS MANUAL
1INSTALLATION INSTRUCTIONS
2TOP, MAIN (BLACK)
4TUBE, BURNER (RR)
5TUBE, BURNER (RF)
6TUBE, BURNER (LF)
7TUBE, BURNER (LR)
8NUT, TUBING (4)
8WASHER, TUBING (4)
9BOX, BURNER
10COVER, FRONT
11SCREW
12SCREW, SUPPORT (6)
13NUT, HOLD DOWN
14SCREW, HOLD DOWN
15COVER, ACCESS (RT)
16SCREW, COVER (4)
17JAR, GREASE
18LID-JAR
19BAFFLE, BOTTOM(LT)
20PAN, MODULE (LEFT)
20PAN, MODULE (RIGHT)
21SEAL, PAN
22IGNITER, SPARK
23LOCKWASHER (2)
24NUT, JAM (2)
25SCREW, PAN
26INSULATOR, SWITCH
27SWITCH, MICRO
28NUT, SWITCH (2)
29PIN, LOCATOR (3)
30CLIP, PAN (4)
31COVER, VENT (BLACK)
