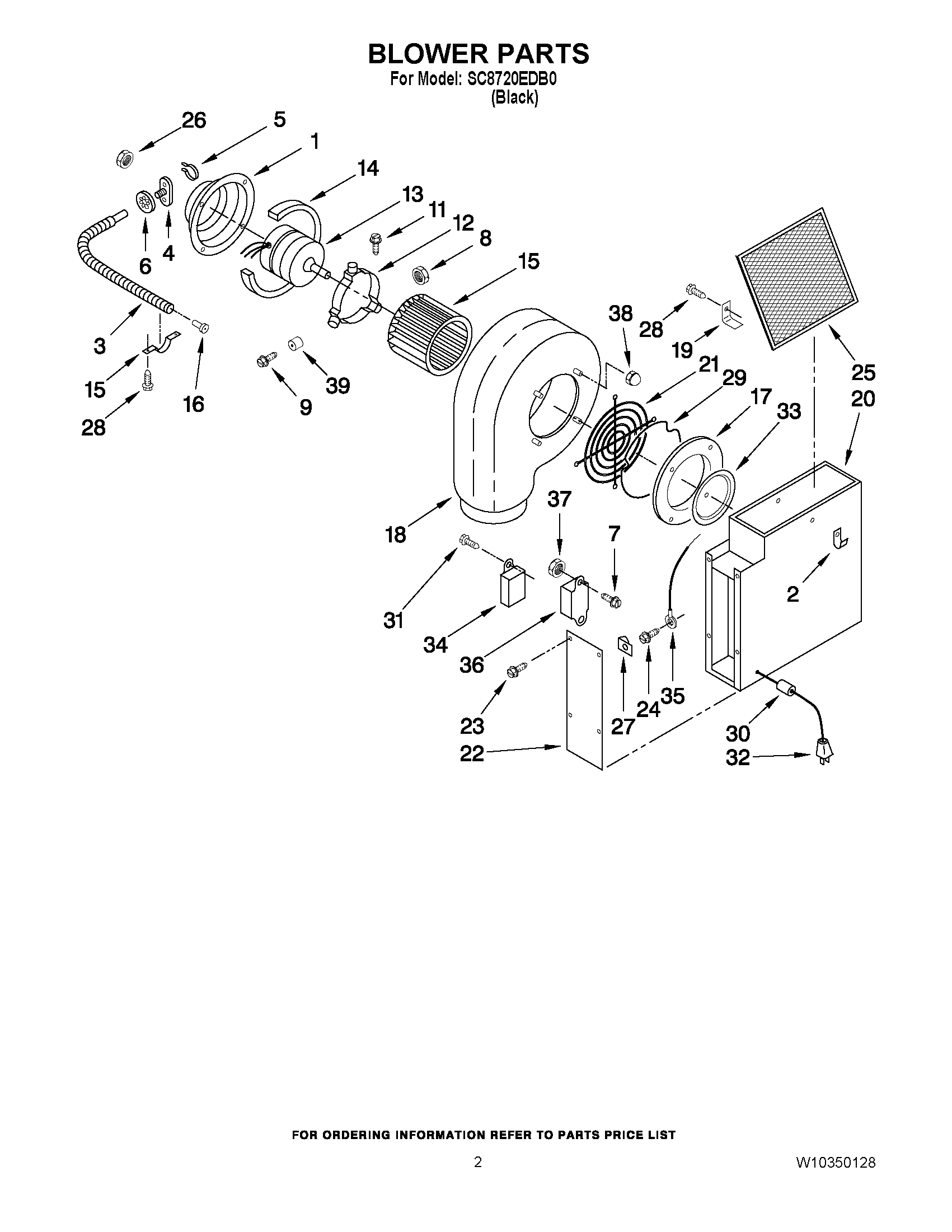

SC8720EDB0 02 – BLOWER PARTSadmin2025-04-26T11:19:40+00:00SC8720EDB0 02 – BLOWER PARTS
Products
| Position | Product |
|---|
| 1 | COVER, MOTOR |
| 3 | CONDUIT, METAL |
| 4 | CONNECTOR, CONDUIT |
| 5 | CLAMP, CABLE |
| 6 | CLIP, CONDUIT |
| 8 | Nut |
| 9 | SCREW, BAND |
| 11 | SCREW, SPACER (3) |
| 12 | BAND-MOTOR |
| 13 | MOTOR, BLOWER |
| 14 | GASKET, FOAM |
| 15 | CLIP |
| 15 | WHEEL, BLOWER |
| 16 | BUSHING, CONDUIT |
| 17 | RING, INLET |
| 18 | HOUSING, BLOWER |
| 19 | RETAINER, FILTER |
| 20 | PLENUM |
| 21 | GUARD, BLOWER |
| 22 | PLATE, COVER |
| 24 | SCREW |
| 25 | FILTER, GREASE |
| 27 | CLIP, COVER PLATE |
| 29 | SPRING, RETAINER |
| 30 | RELIEF, STRAIN |
| 31 | SCREW |
| 32 | CORD, POWER |
| 33 | RING, RESTRICTOR |
| 34 | CLIP, ``J`` (2) |
| 34 | RELAY |
| 35 | WIRE, GROUND |
| 36 | MODULE, SPARK |
| 37 | NUT, MTG. |
| 38 | CAP, NUT (4) |
| 39 | ISOLATOR, MOTOR |
