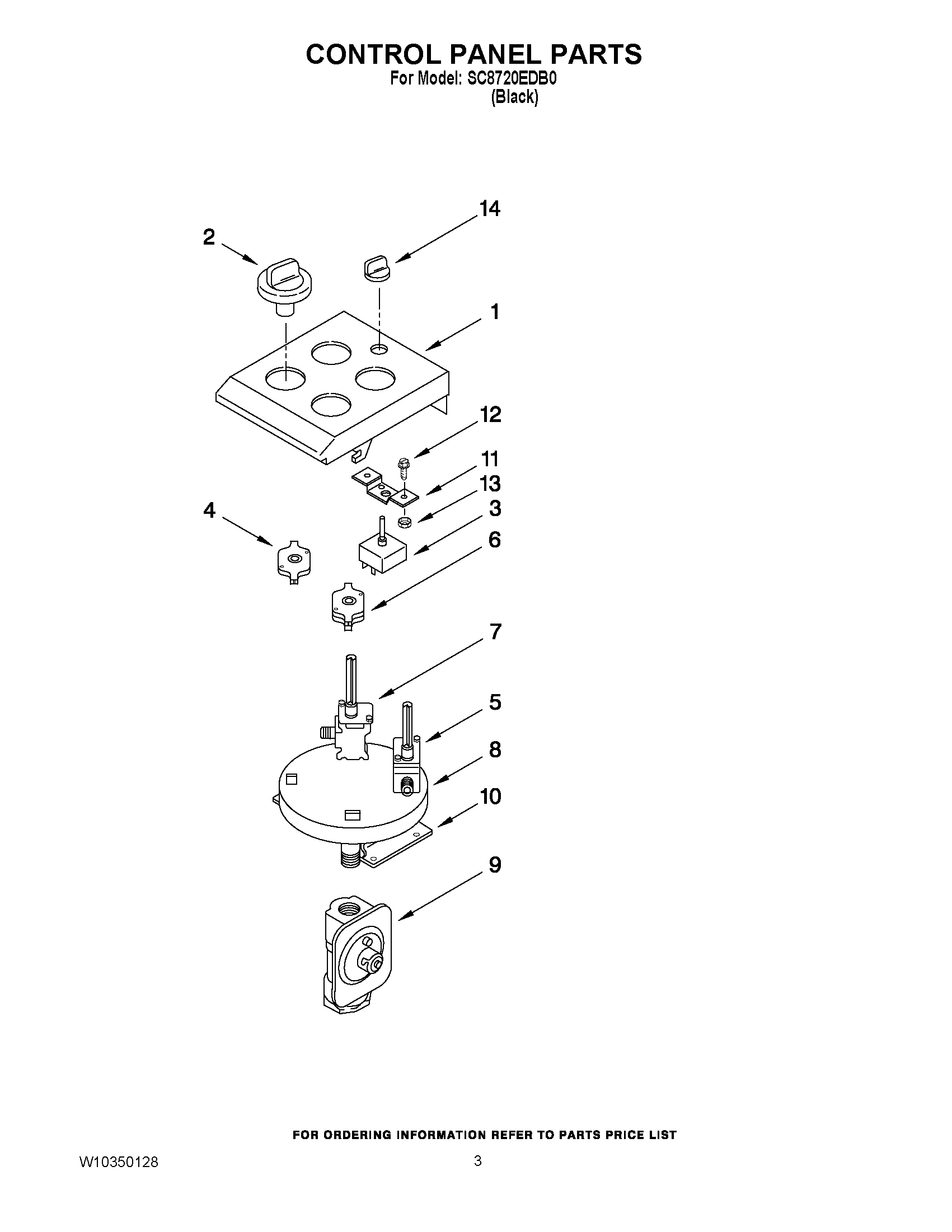

SC8720EDB0 03 – CONTROL PANEL PARTSadmin2025-04-26T11:20:04+00:00SC8720EDB0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, WIRE |
| NI | LP CONVERSION KIT |
| 1 | PANEL, CONTROL (BLACK) |
| 2 | KNOB, CONTROL (4) (BLACK) |
| 3 | SWITCH, FAN |
| 4 | SWITCH, VALVE (2) (RIGHT SIDE) |
| 5 | WP7502P382-60 Whirlpool Burner Valve |
| 6 | SWITCH, VALVE (2) (LEFT SIDE) |
| 7 | VALVE (LEFT) (2) |
| 8 | MANIFOLD |
| 8 | NUT, JAM (2) |
| 9 | REGULATOR,PRESSURE |
| 10 | BRACKET, MANIFOLD |
| 11 | BRACKET, FAN SWTCH |
| 12 | SCREW, SPACER (3) |
| 13 | PALNUT, FAN SWITCH |
| 14 | KNOB, FAN (BLACK) |
