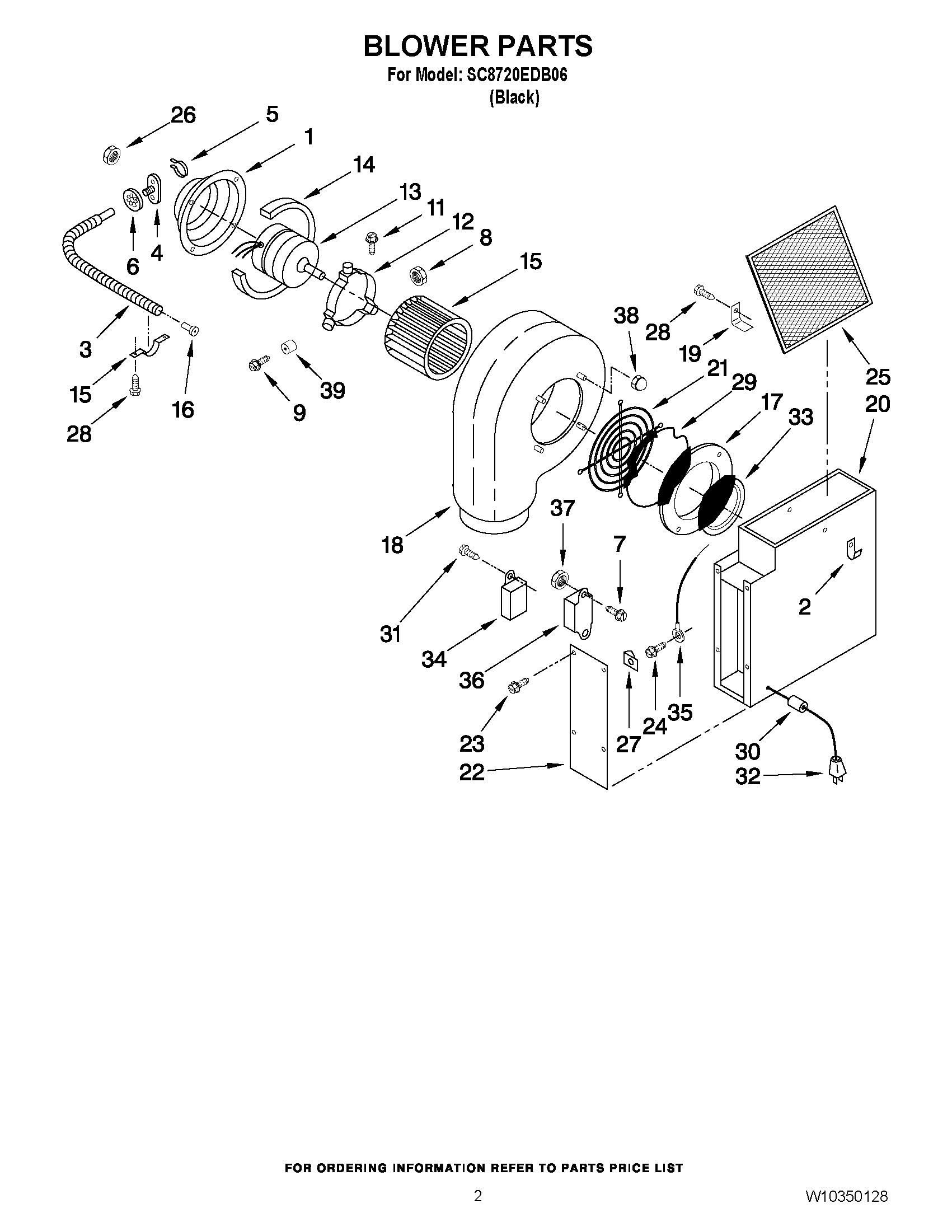

SC8720EDB06 02 – BLOWER PARTS

Products

PositionProduct
1COVER, MOTOR
3CONDUIT, METAL
4CONNECTOR, CONDUIT
5CLAMP, CABLE
6CLIP, CONDUIT
8Nut
9SCREW, BAND
11SCREW, SPACER (3)
12BAND-MOTOR
13MOTOR, BLOWER
14GASKET, FOAM
15CLIP
15WHEEL, BLOWER
16BUSHING, CONDUIT
17RING, INLET
18HOUSING, BLOWER
19RETAINER, FILTER
20PLENUM
21GUARD, BLOWER
22PLATE, COVER
24SCREW
25FILTER, GREASE
27CLIP, COVER PLATE
29SPRING, RETAINER
30RELIEF, STRAIN
31SCREW
32CORD, POWER
33RING, RESTRICTOR
34CLIP, “J“ (2)
34RELAY
35WIRE, GROUND
36MODULE, SPARK
37NUT, MTG.
38CAP, NUT (4)
39ISOLATOR, MOTOR
