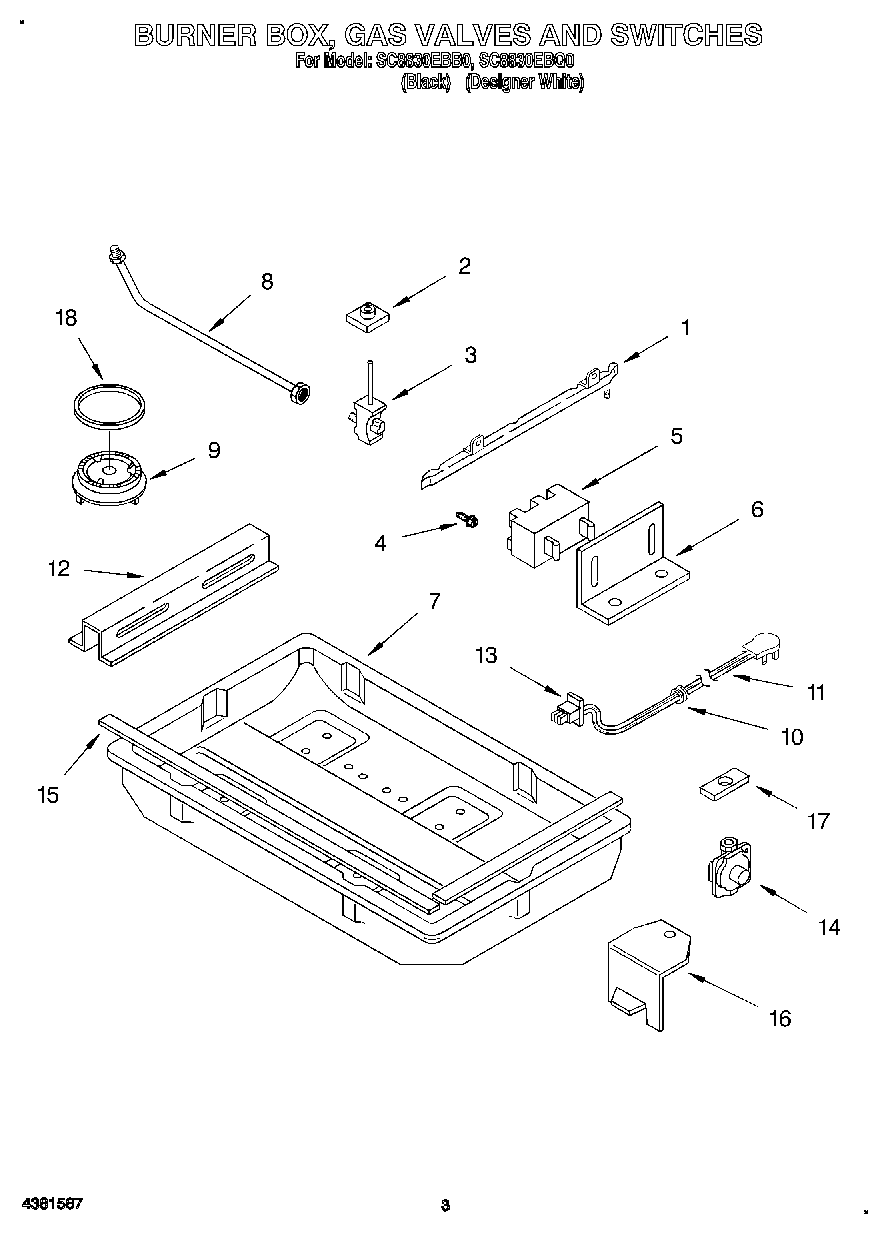

SC8830EBB0 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
Use & Care Guide
Installation Instructions
1Pipe, Manifold
2WP7403P367-60 Whirlpool Switch
3Valve, Burner (4)
4Screw, Valve (8)
512001596 Whirlpool Range Oven Cooktop Spark Module
6Screw, Brkt. (2)
6Bracket, Module
7Burner Box
8Tube, Burner (L.F. & L.R.)
8Tube, Burner (R.F. & R.R.)
9Burner Assy. (4)
10Relief, Strain
11Cord, Power
12Support (2)
12Screw, Supp. (8)
13Block, Terminal (Male)
13Block, Terminal (Female)
14Pressure Regulator
15Tape, Seal
16Bracket, Mtg. (2)
17Seal, Manifold
18R.F. & R.R.
18Harness, Igniter Wires, Igniter
18Gasket, Burner
18White
18Black
18Gas Conversion Kit (Natural Gas To LP Gas)
18L.F. & L.R. Installation Tape
