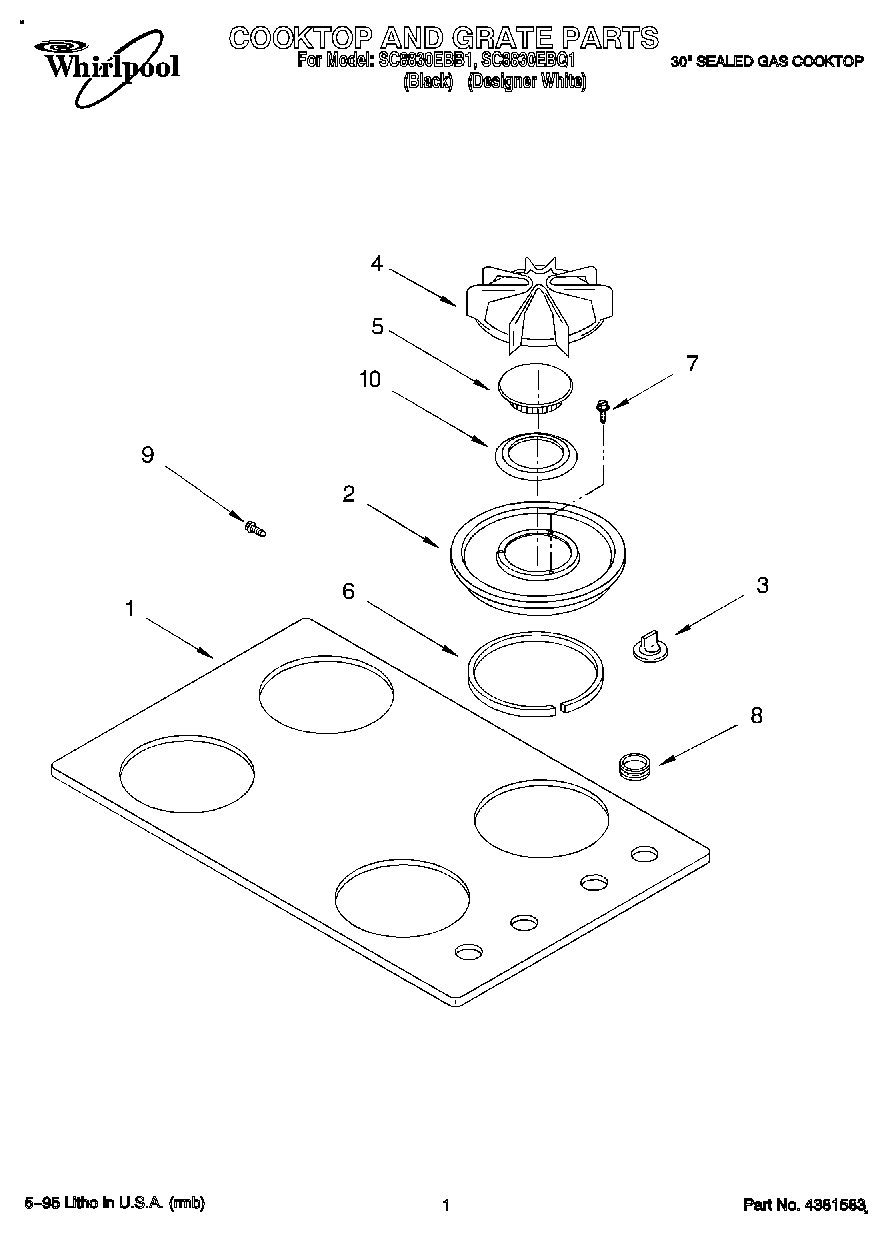

SC8830EBB1 01 – COOKTOP AND GRATEadmin2025-04-26T11:20:51+00:00SC8830EBB1 01 – COOKTOP AND GRATE
Products
| Position | Product |
|---|
| 1 | Glass, Main Top (Black) |
| 1 | Glass, Main Top (White) |
| 2 | Bowl, Drip (4) (White) |
| 2 | Bowl, Drip (4) (Black) |
| 3 | Knob, Control (4) (White) |
| 3 | WP74001253 Whirlpool Top Knob |
| 4 | Grate, Burner (4) (Black) |
| 4 | Grate, Burner (4) (Grey) |
| 5 | Cap, Burner (4) (Black) |
| 5 | Cap, Burner (4) (Grey) |
| 6 | Seal, Burner |
| 7 | Screw, Burner Mtg. (12) |
| 8 | Grommet (4) |
| 9 | WP4159387 Whirlpool Compactor Screw |
| 10 | Ring, Trim (4) (Black) |
| 10 | Ring, Trim (4) (White) |
