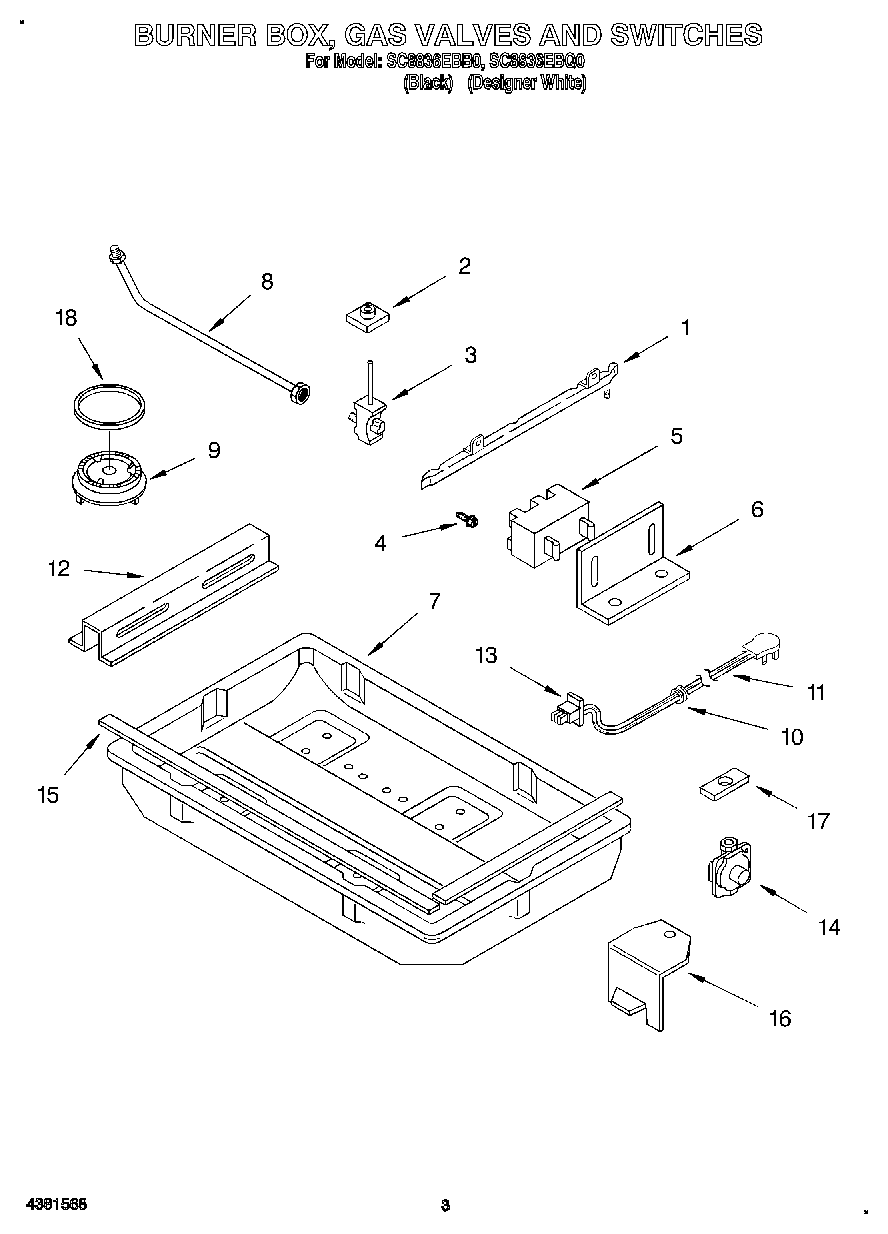

SC8836EBB0 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
Use & Care Guide
Installation Instructions
1Pipe, Manifold
2WP7403P367-60 Whirlpool Switch
3Valve, Burner (4)
4Screw, Valve (8)
512001596 Whirlpool Range Oven Cooktop Spark Module
6Bracket, Module
6Screw, Brkt. (2)
7Burner Box
8Tube, Burner (R.F. & R.R.)
8Tube, Burner (L.F. & L.R.)
9Burner Assy. (4)
10Relief, Strain
11Cord, Power
12Screw, Supp. (8)
12Support (2)
13Block, Terminal (Male)
13Block, Terminal (Female)
14Pressure Regulator
15Tape, Seal
16Bracket, Mtg. (2)
17Seal, Manifold
18White
18Gasket, Burner
18L.F. & L.R. Installation Tape
18R.F. & R.R.
18Harness, Igniter Wires, Igniter
18Gas Conversion Kit (Natural Gas To LP Gas)
18Black
