SC8836EBB2 01 – COOKTOP AND GRATE

SC8836EBB2 01 – COOKTOP AND GRATE

Written by

in

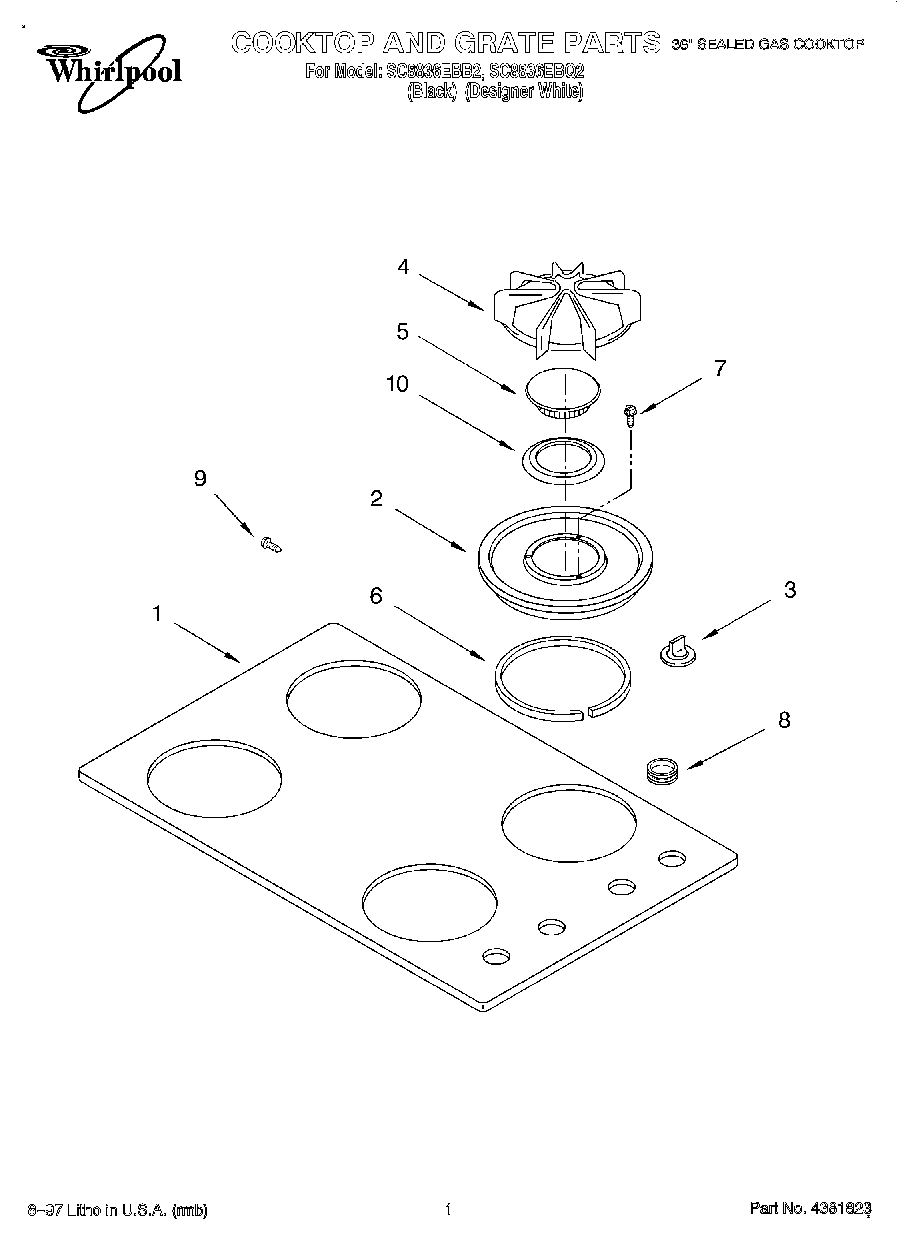

SC8836EBB2 01 – COOKTOP AND GRATE

Products

PositionProduct
1Glass, Main Top (Black)
1Glass, Main Top (White)
2Bowl, Drip (4) (Black)
2Bowl, Drip (4) (White)
3Knob, Control (4) (White)
3WP74001253 Whirlpool Top Knob
4Grate, Burner (4) (Black)
4Grate, Burner (4) (Grey)
5Cap, Burner (4) (Black)
5Cap, Burner (4) (Grey)
6Seal, Burner
7Screw, Burner Mtg. (12)
8Grommet (4)
9WP4159387 Whirlpool Compactor Screw
10Ring, Trim (4) (Black)
10Ring, Trim (4) (White)
