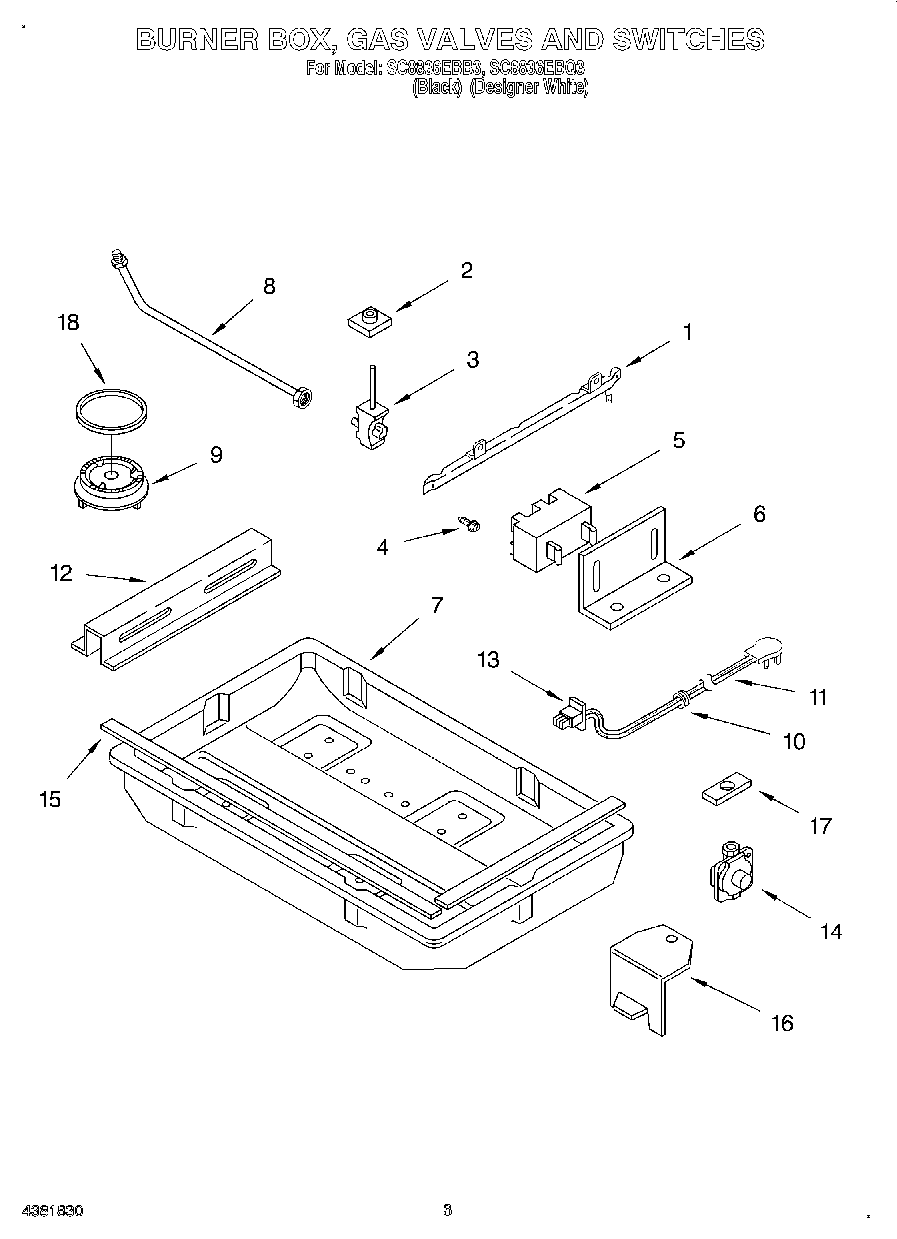

SC8836EBB3 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

Position	Product
	Use & Care Guide
	Installation Instructions
1	Pipe, Manifold
2	WP7403P367-60 Whirlpool Switch
3	Valve, Burner (4)
4	Screw, Valve (8)
5	12001596 Whirlpool Range Oven Cooktop Spark Module
6	Bracket, Module
6	Screw, Brkt. (2)
7	Burner Box
8	Tube, Burner (R.F. & R.R.)
8	Tube, Burner (L.F. & L.R.)
9	Burner Assy. (4)
10	Relief, Strain
11	Cord, Power
12	Screw, Supp. (8)
12	Support (2)
13	Block, Terminal (Male)
13	Block, Terminal (Female)
14	Pressure Regulator
15	Tape, Seal
16	Bracket, Mtg. (2)
17	Seal, Manifold
18	White
18	Gasket, Burner
18	L.F. & L.R. Installation Tape
18	R.F. & R.R.
18	Harness, Igniter Wires, Igniter
18	Gas Conversion Kit (Natural Gas To LP Gas)
18	Black
