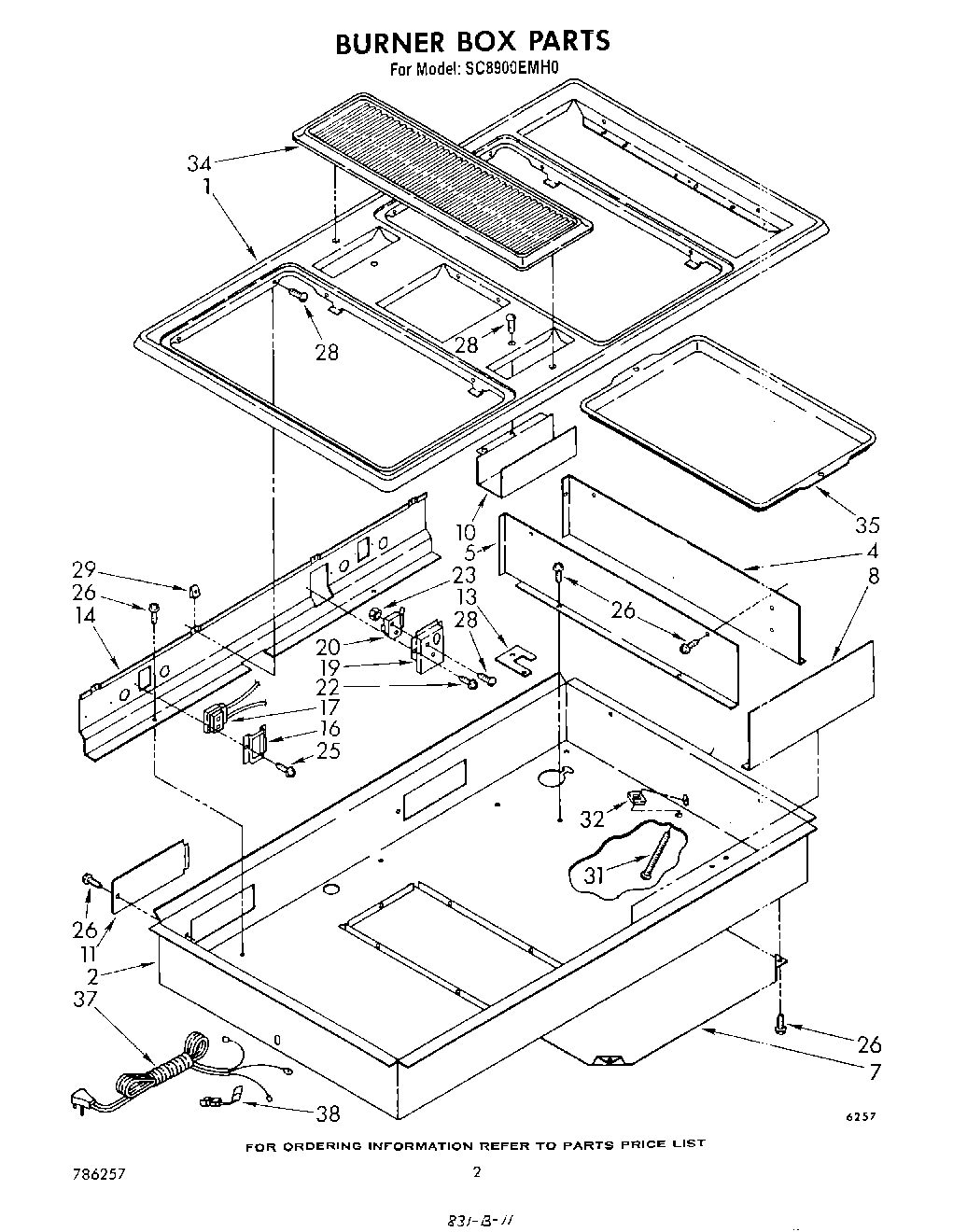

SC8900EMH0 02 – BURNER BOX , LITERATURE AND OPTIONAL

Products

Position	Product
	Instructions, Installation
	Guide, Use & Care
	Vent Installation Instructions
	List, Repair Parts
1	Top, Main
2	Box, Burner
4	Sheild, Switch
5	Shield, Heat Control
7	Baffle, Bottom
8	Shield, Front Heat
10	Shield, Sight
11	Cover, Access (2)
13	Bracket, Manifold Support
14	Bracket, Orifice Mounting
16	Bracket, Plug Block Mounting (2)
17	Plug Block (2)
19	Bracket, Fan Switch (Left Side)
19	Bracket, Fan Switch (Right Side)
20	Switch, Fan
22	Screw, 4-40 X 5/8 (2)
23	Nut
25	WP3177991 Whirlpool Screw
26	WP489128 Whirlpool Refrigerator Screw
28	WP488729 Whirlpool Refrigerator Door Screw
29	U-Clip, Top Mounting (12)
31	Screw, Hold Down (2)
32	Nut, 1/4-20 (2)
34	Cover, Vent
35	Pan, Grease
37	Cord, Power
38	Wire, 25“ Roll (White 14 GA.)
38	Wire, 25` Roll (Black 14 Ga.)
38	Wire, 25` Roll (Red 14 Ga.)
38	242831 Whirlpool Oven Wire
38	WP285432 Whirlpool Terminal
38	1
38	Wire (14 Ga. 200 c Brown)
38	18 Ga. 80~c Rating (Red)
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Strain Relief
38	Wire (14 Ga. 150 c Green)
38	Wire (14 Ga. 150 c Brown)
38	Wire (14 Ga. 150 c Blue)
38	WP90028 Whirlpool Terminal
