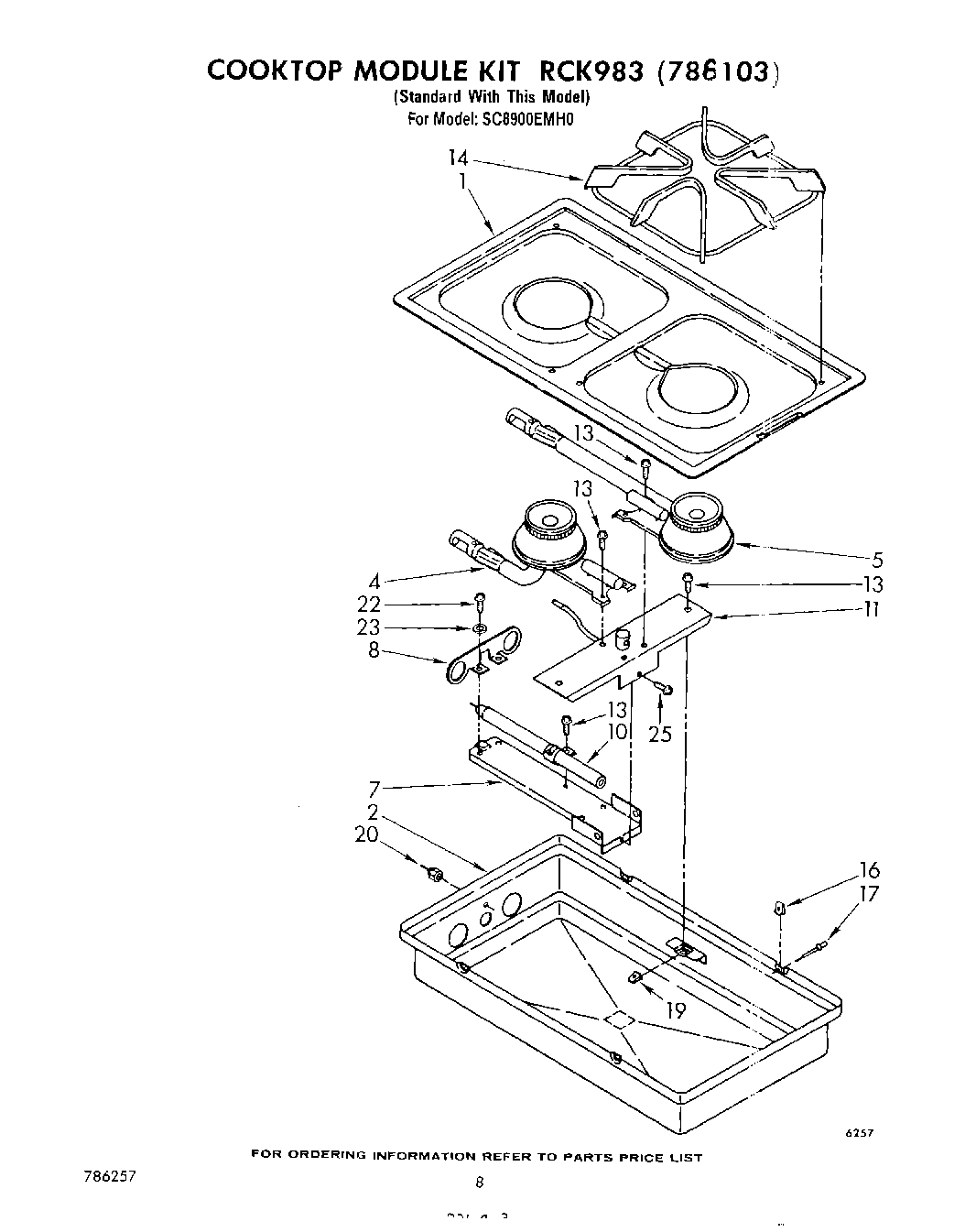

SC8900EMH0 07 – COOKTOP MODULE RCK983

Products

Position	Product
1	Module Top
2	Module Pan
4	Burner, Rear (Short Venturi)
5	Burner, Front (Long Venturi)
7	Support, Burner Base
8	Support, Venturi
10	Connector, Electrode
11	Electrode & Cap Assembly
13	WP489128 Whirlpool Refrigerator Screw
14	Grate (4)
16	Clip, Top Mounting (4)
17	Pop Rivet (4)
19	U-Clip (2)
20	BOX ASSEMBLY
22	Screw (4) No.8-32 x 3/18
23	Lockwasher No.8
25	WPW10068250 Whirlpool Dishwasher Screw
