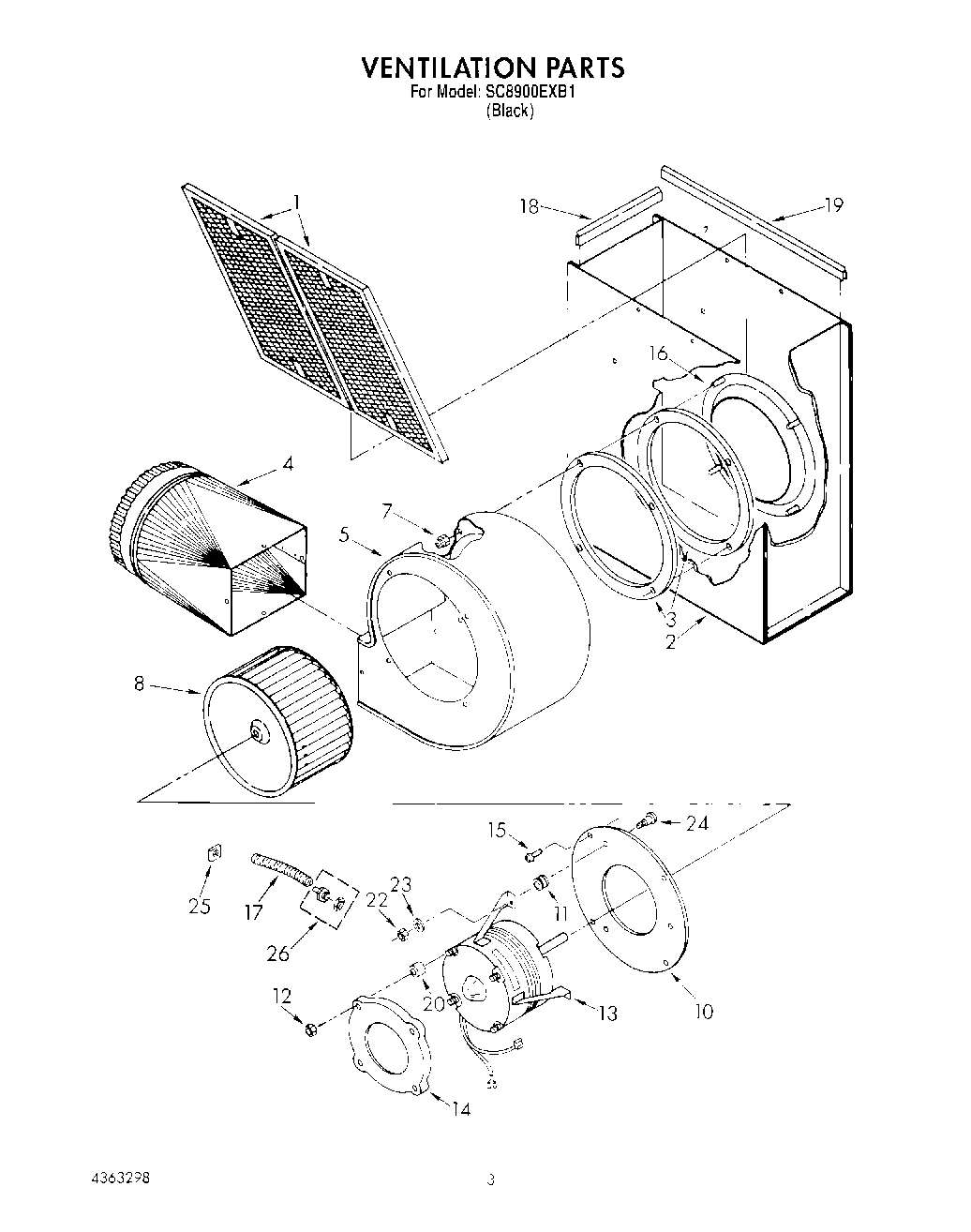

SC8900EXB1 02 – VENTILATION

Products

Position	Product
1	Filter Kit (Contains 2)
2	Plenum
3	Gasket, Motor Mounting
4	Transition 6“
5	Housing Blower
7	Nut, Locking (4)
8	Wheel, Fan
10	Plate, Motor Mounting
11	Grommet, Motor Mounting (8)
12	WP488826 Whirlpool Nut
13	Motor, 60 Hz.
14	Cover, Motor
15	WP488729 Whirlpool Refrigerator Door Screw
16	Orifice
17	Conduit
18	Seal, Plenum End (2)
19	Seal, Plenum Side (2)
20	Spacer, Motor Cover (4)
22	Screw, 8 X 3/8 (14)
23	Washer (3)
24	Bolt, 10-24 X 3/4 (3)
25	Bracket, Fuse Box
26	Connector, Conduit
