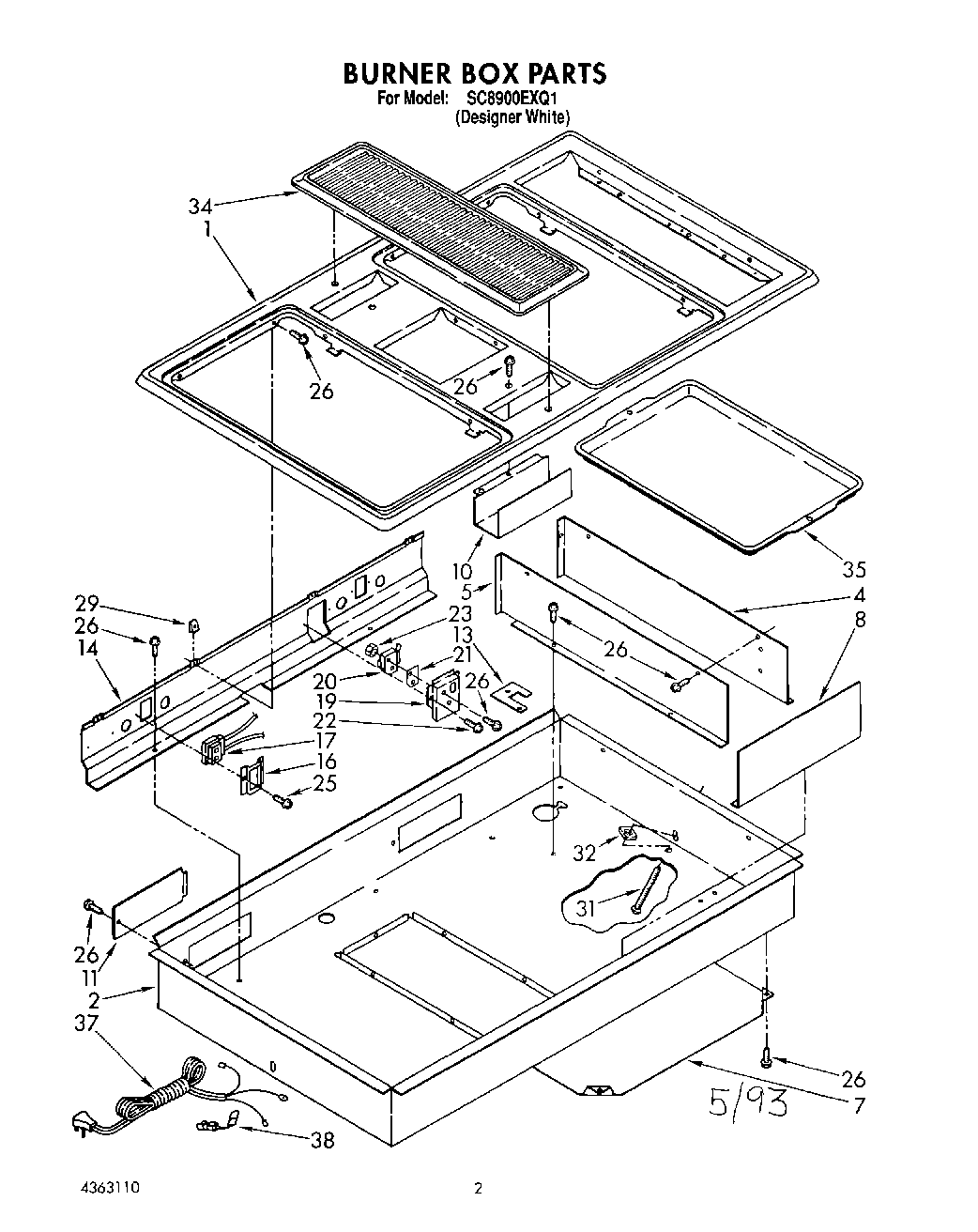

SC8900EXQ1 01 – BURNER BOX, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	Guide, Use & Care
	List, Repair Parts
1	Top, Main
2	Box, Burner
4	Sheild, Switch
5	Shield, Heat Control
7	Baffle, Bottom
8	Shield, Front Heat
10	Shield, Sight
11	Cover, Access (2)
13	Bracket, Manifold Support
14	Bracket, Orifice Mounting
16	Bracket, Plug Block Mounting (2)
17	Plug Block (L.H.)
17	Plug Block (R.H.)
19	Bracket, Fan Switch (Right Side)
20	Switch, Fan
21	Insulator, Switch
22	Screw, 4-40 X 5/8 (2)
23	Nut
25	WP3177991 Whirlpool Screw
26	WP965173 Whirlpool Dishwasher Screw
29	U-Clip, Top Mounting (12)
31	Screw, Hold Down (2)
32	Nut, 1/4-20 (2)
34	Cover, Vent
35	Pan, Grease
37	Cord, Power
38	Wire, 25` Roll (Red 14 Ga.)
38	Wire, 25` Roll (Black 14 Ga.)
38	Wire, 25“ Roll (White 14 GA.)
38	242831 Whirlpool Oven Wire
38	Wire (14 Ga. 150 c Blue)
38	Wire (14 Ga. 150 c Brown)
38	WP90028 Whirlpool Terminal
38	Strain Relief
38	Wire (14 Ga. 200 c Brown)
38	1
38	18 Ga. 80~c Rating (Red)
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	WP285432 Whirlpool Terminal
