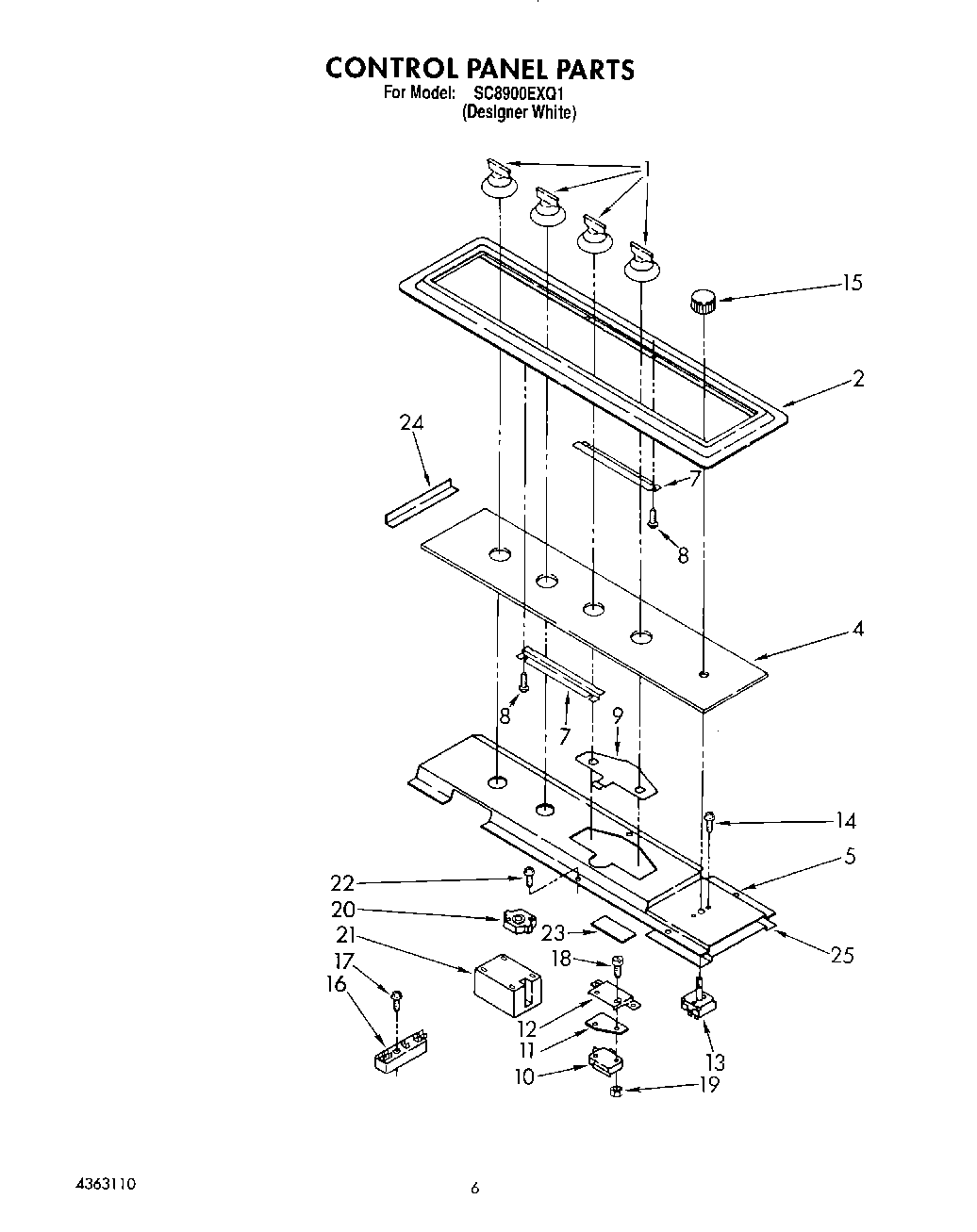

SC8900EXQ1 04 – CONTROL PANELadmin2025-04-26T11:20:23+00:00SC8900EXQ1 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Knob, Valve (4) |
| 2 | Trim, Control Panel |
| 4 | Glass, Control Panel |
| 5 | Shield, Valve & Switch |
| 7 | Retainer, Glass (2) |
| 8 | Screw, 4-40 X 1/4 (2) |
| 9 | Actuator, Switch |
| 10 | Switch, Fan |
| 11 | Insulator, Switch |
| 12 | Bracket, Fan Switch |
| 13 | Switch, Fan (Manual) |
| 14 | Screw, 6-32 X 3/16 (2) |
| 15 | Knob, Fan |
| 16 | Block, Terminal |
| 17 | W11693756 Whirlpool Screw Assembly |
| 18 | Screw, 4-40 X 5/8 (2) |
| 19 | Nut |
| 20 | Switch, Spark (4) |
| 21 | Spark Module |
| 22 | WP489128 Whirlpool Refrigerator Screw |
| 23 | Insulator, Switch |
| 24 | Foam Tape (4) |
| 25 | Bracket, Switch Mounting |
