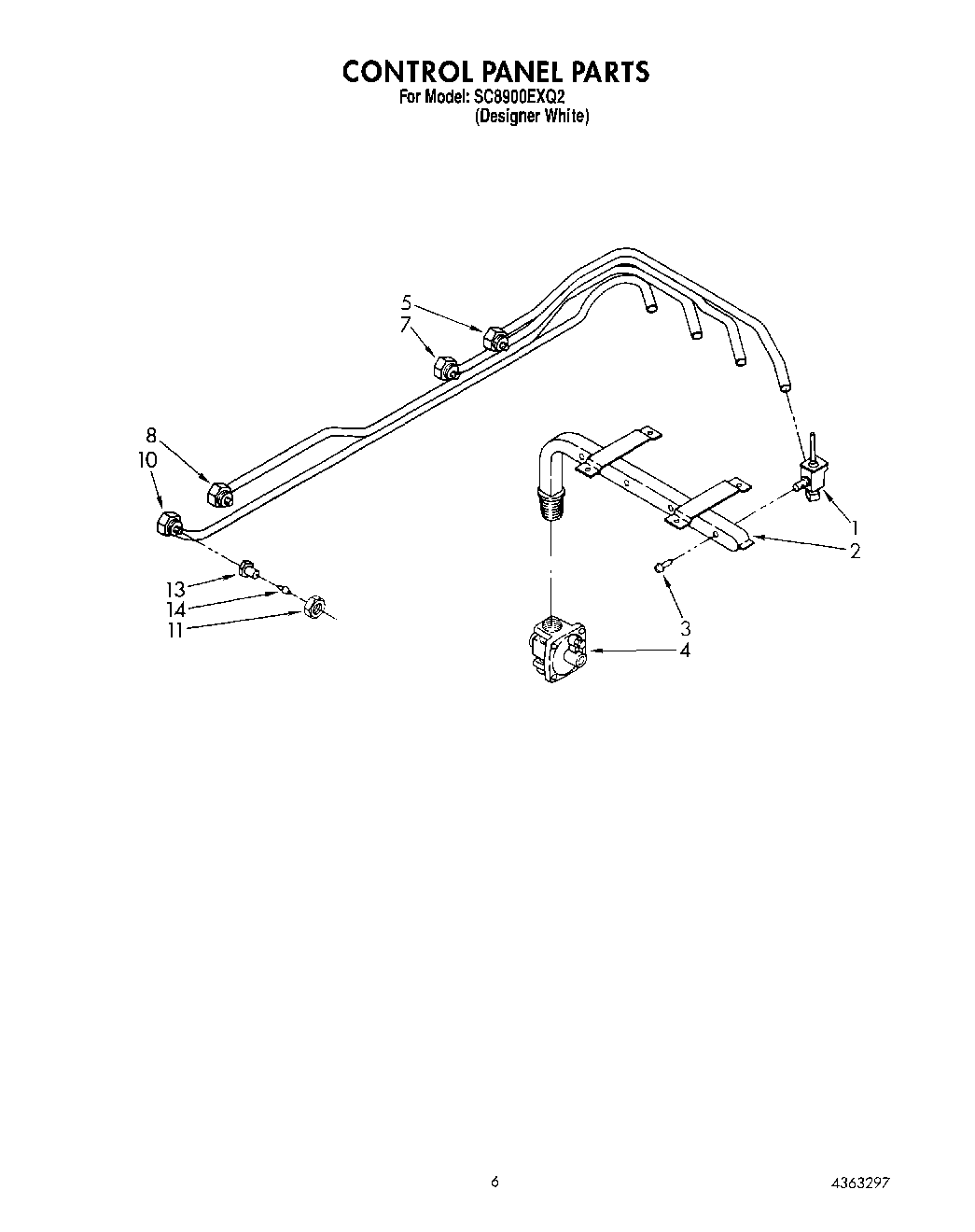

SC8900EXQ2 05 – CONTROL PANEL

Products

Position	Product
1	Vavle, Gas (Includes Tube Fitting) (4)
2	Pipe, Manifold
3	Screw, Valve
4	Pressure Regulator
5	R.F. Orifice & Tube Assembly (Includes 786277 Orifice Hood & 786278 Orifice Pin)
7	R.R. Orifice & Tube Assembly (Includes 786277 Orifice Hood & 786278 Orifice Pin)
8	ADAPTER RING
10	L.R. Orifice & Tube Assembly (Includes 786276 Orifice Hood & 786278 Orifice Pin)
11	Palnut (4)
13	Orifice Hood (L.F. and L.R.)
13	Orifice Hood (R.F. and R.R.)
14	Orifice Pin
