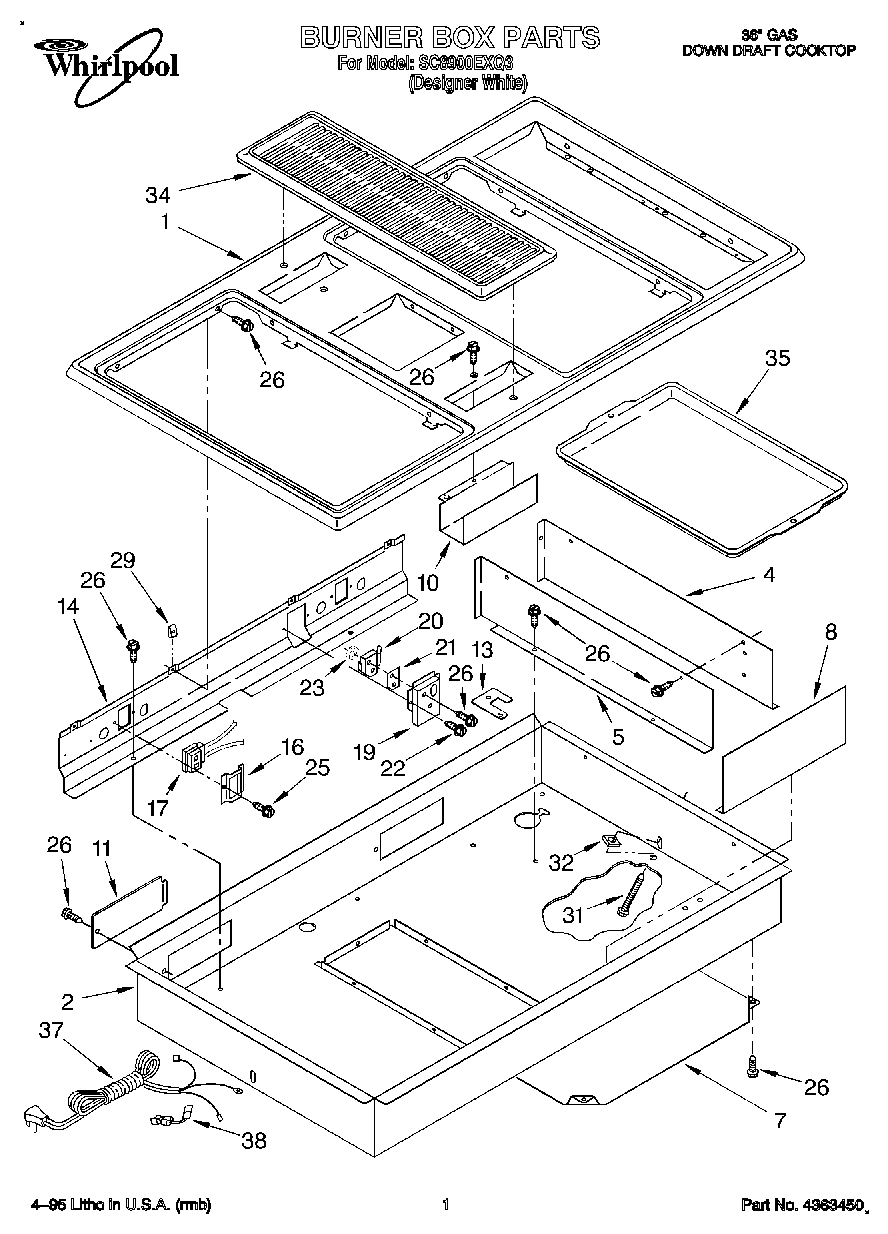

SC8900EXQ3 01 – BURNER BOX, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	Guide, Use & Care
1	Top, Main
2	Box, Burner
4	Sheild, Switch
5	Shield, Heat Control
7	Baffle, Bottom
8	Shield, Front Heat
10	Shield, Sight
11	Cover, Access (2)
13	Bracket, Manifold Support
14	Bracket, Orifice Mounting
16	Bracket, Plug Block Mounting (2)
17	Plug Block (L.H.)
17	Plug Block (R.H.)
19	Bracket, Fan Switch (Right Side)
20	Switch, Interlock
21	Insulator, Switch
22	Screw, 4-40 X 5/8 (2)
23	Nut
25	WP3177991 Whirlpool Screw
26	WP965173 Whirlpool Dishwasher Screw
29	U-Clip, Top Mounting (12)
31	Screw, Hold Down (2)
32	Nut, 1/4-20 (2)
34	Cover, Vent
35	Pan, Grease
37	Cord, Power
38	Wire, 25` Roll (Black 14 Ga.)
38	Wire, 25` Roll (Red 14 Ga.)
38	Wire, 25“ Roll (White 14 GA.)
38	242831 Whirlpool Oven Wire
38	Strain Relief
38	WP90028 Whirlpool Terminal
38	WP285432 Whirlpool Terminal
38	18 Ga. 80~c Rating (Red)
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	1
38	Wire (14 Ga. 150 c Brown)
38	Wire (14 Ga. 150 c Blue)
38	Wire (14 Ga. 200 c Brown)
