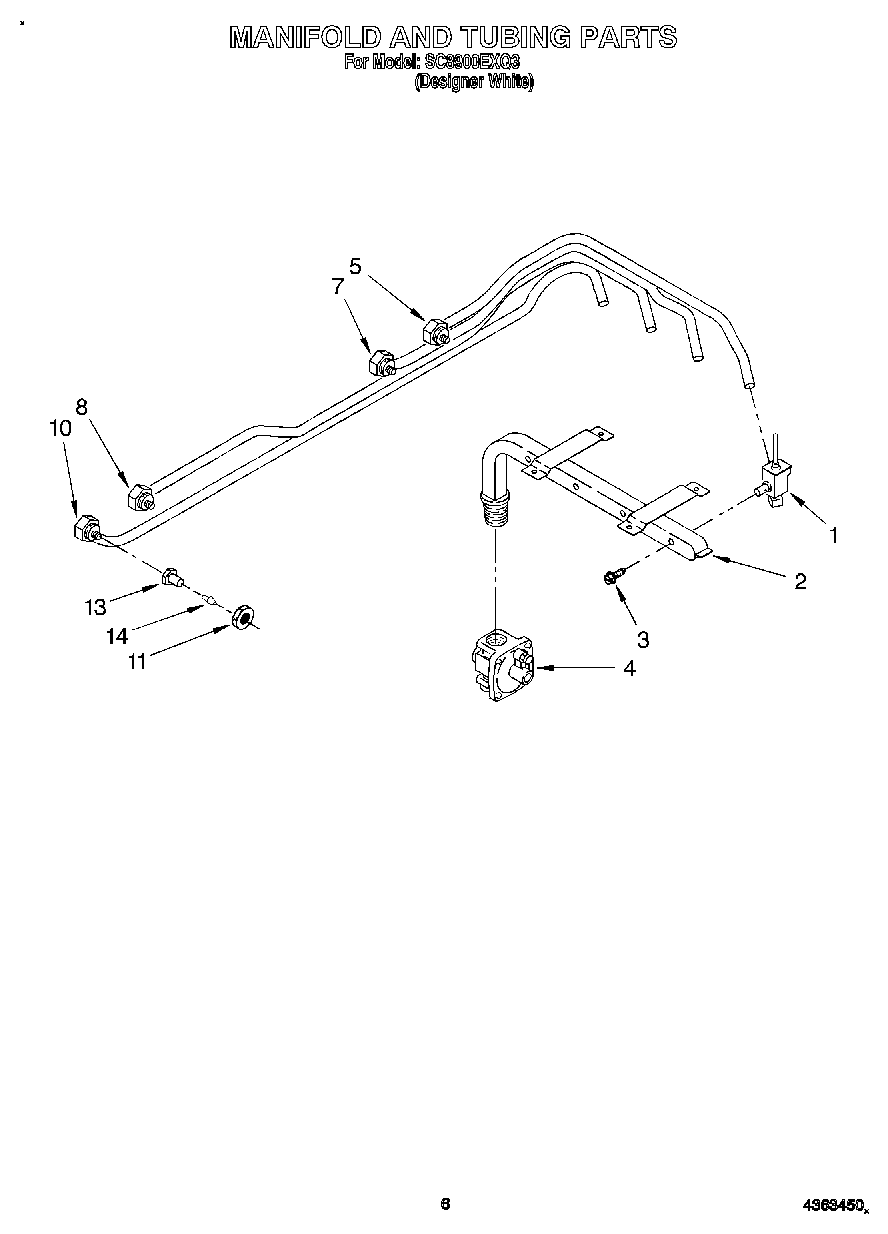

SC8900EXQ3 05 – MANIFOLD AND TUBING

Products

PositionProduct
1Vavle, Gas (Includes Tube Fitting) (4)
2Pipe, Manifold
3Screw, Valve
4Pressure Regulator
5R.F. Orifice & Tube Assembly (Includes 786277 Orifice Hood & 786278 Orifice Pin)
7R.R. Orifice & Tube Assembly (Includes 786277 Orifice Hood & 786278 Orifice Pin)
8ADAPTER RING
10L.R. Orifice & Tube Assembly (Includes 786276 Orifice Hood & 786278 Orifice Pin)
11Palnut (4)
13Orifice Hood (L.F. and L.R.)
13Orifice Hood (R.F. and R.R.)
14Orifice Pin
