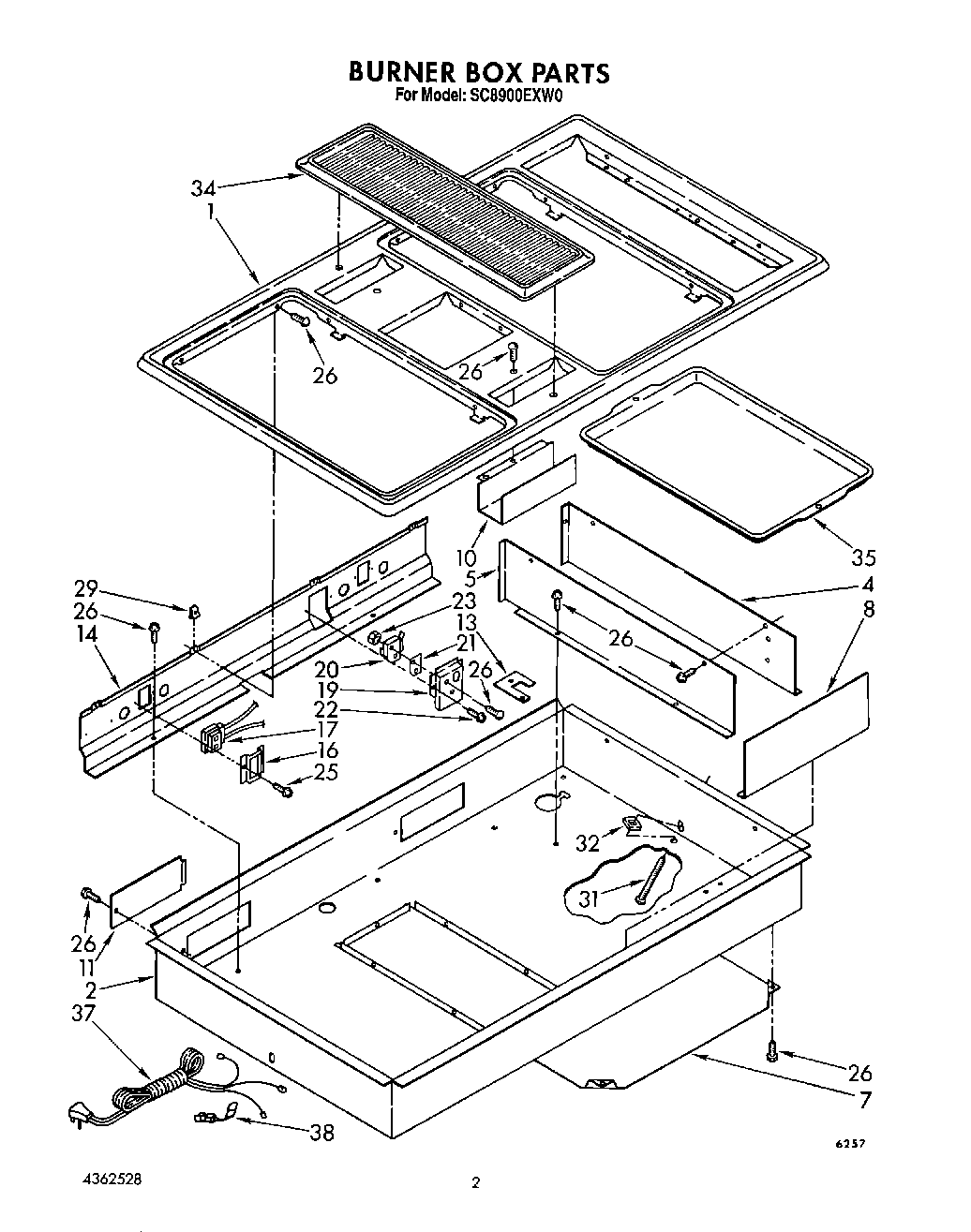

SC8900EXW0 02 – BURNER BOXadmin2025-04-26T11:20:09+00:00SC8900EXW0 02 – BURNER BOX
Products
| Position | Product |
|---|
| NI | Wire (14 Ga. 150 c Orange) |
| NI | Wire (14 Ga. 150 c Green) |
| NI | Wire (14 Ga. 150 c Yellow) |
| NI | Wire (12 Ga. 150 c Black) |
| NI | 18 Ga. 80~c Rating (Red) |
| NI | Wire (14 Ga. 200 c Brown) |
| NI | 1 |
| NI | List, Repair Parts |
| NI | Instructions, Installation |
| NI | Wire (14 Ga. 150 c Brown) |
| NI | Wire (14 Ga. 150 c Blue) |
| NI | Wire, 25` Roll (Black 14 Ga.) |
| NI | Wire, 25` Roll (Red 14 Ga.) |
| NI | Wire, 25`` Roll (White 14 GA.) |
| NI | Guide, Use & Care |
| NI | 242831 Whirlpool Oven Wire |
| 1 | Top, Main |
| 1 | Top, Main |
| 2 | Box, Burner |
| 4 | Sheild, Switch |
| 5 | Shield, Heat Control |
| 7 | Baffle, Bottom |
| 8 | Shield, Front Heat |
| 10 | Shield, Sight |
| 11 | Cover, Access (2) |
| 13 | Bracket, Manifold Support |
| 14 | Bracket, Orifice Mounting |
| 16 | Bracket, Plug Block Mounting (2) |
| 17 | Plug Block (L.H.) |
| 17 | Plug Block (R.H.) |
| 19 | Bracket, Fan Switch (Right Side) |
| 19 | Bracket, Fan Switch (Left Side) |
| 20 | Switch, Fan |
| 21 | Insulator, Switch |
| 22 | Screw, 4-40 X 5/8 (2) |
| 23 | Nut |
| 25 | WP3177991 Whirlpool Screw |
| 26 | WP965173 Whirlpool Dishwasher Screw |
| 29 | U-Clip, Top Mounting (12) |
| 31 | Screw, Hold Down (2) |
| 32 | Nut, 1/4-20 (2) |
| 34 | Cover, Vent |
| 34 | Cover, Vent |
| 35 | Pan, Grease |
| 37 | Cord, Power |
| 38 | WP90028 Whirlpool Terminal |
| 38 | WP285432 Whirlpool Terminal |
| 38 | Strain Relief |
