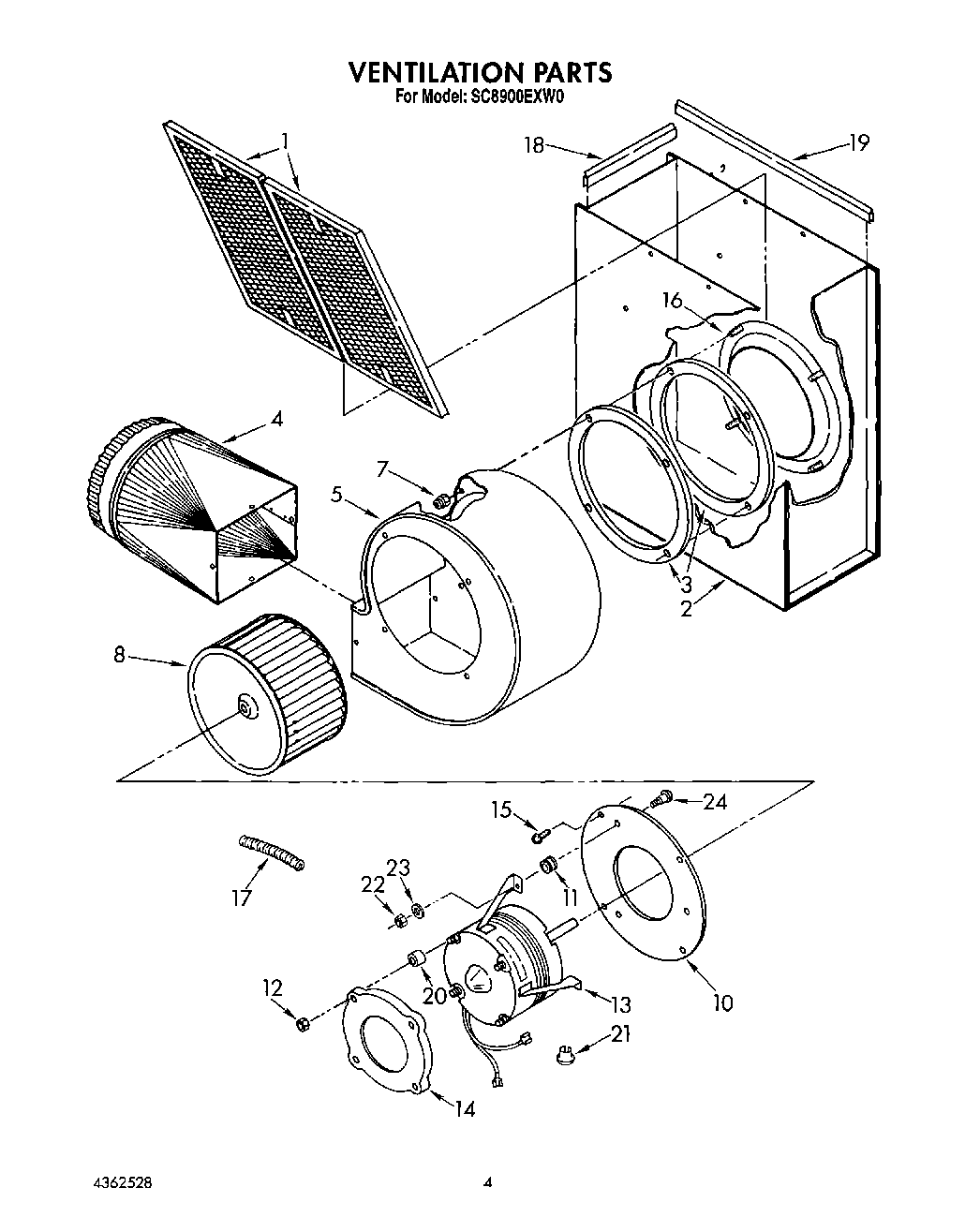

SC8900EXW0 04 – VENTILATION

SC8900EXW0 04 – VENTILATION

Written by

in

SC8900EXW0 04 – VENTILATION

Products

PositionProduct
1786235 Whirlpool Oven Grease Filter Pack of 2
2Plenum
3Gasket, Motor Mounting
4Transition 6“
5Scroll, Fan
7Nut, Locking (4)
8Wheel, Fan
10Plate, Motor Mounting
11Grommet, Motor Mounting (8)
12WP488826 Whirlpool Nut
13Motor, 60 Hz.
14Cover, Motor
15WP488729 Whirlpool Refrigerator Door Screw
16Orifice
17Conduit
18Seal, Plenum End (2)
19Seal, Plenum Side (2)
20Spacer, Motor Cover (4)
21Bushing
22Screw, 8 X 3/8 (14)
23Washer (3)
24Bolt, 10-24 X 3/4 (3)
