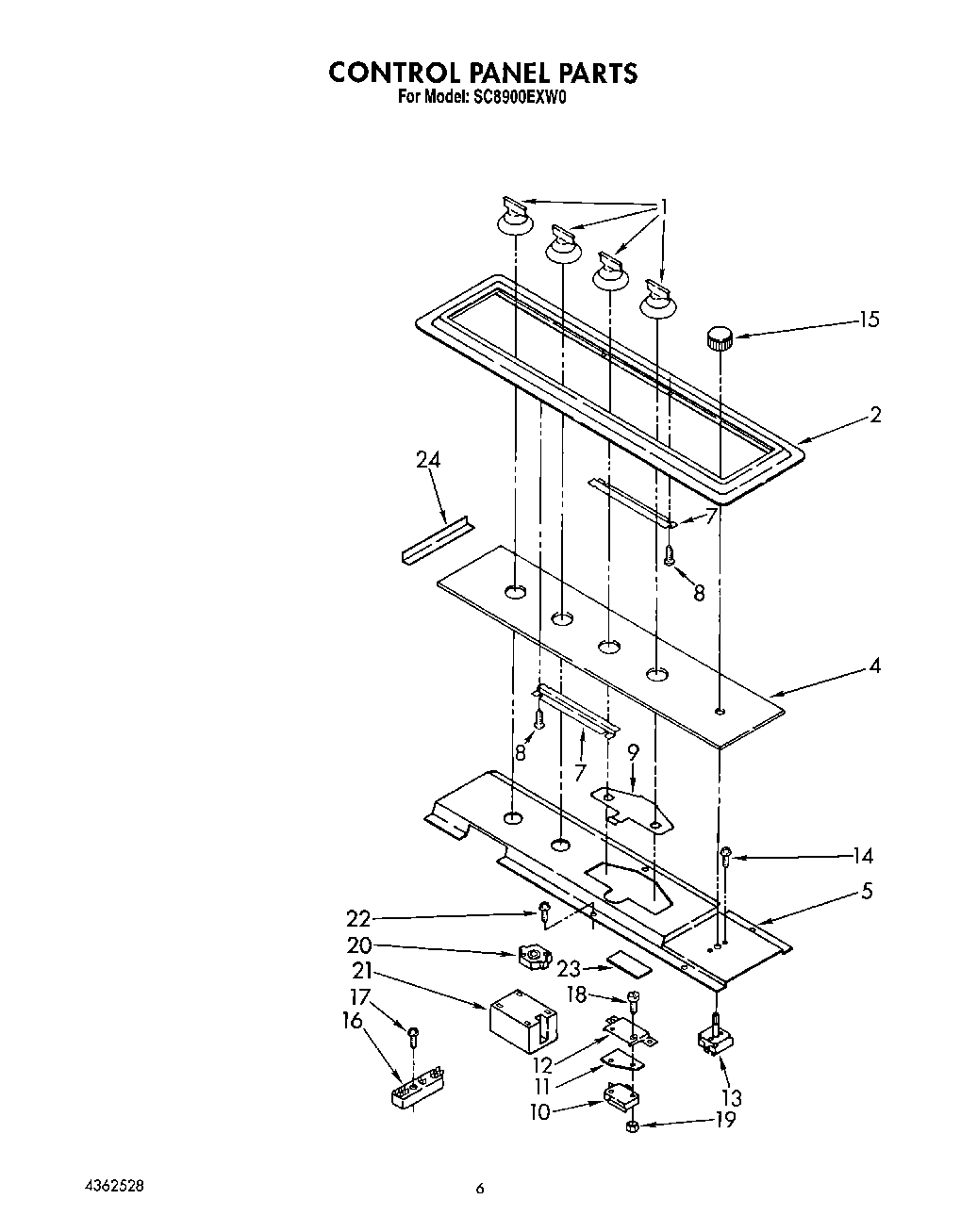

SC8900EXW0 06 – CONTROL PANEL

Products

Position	Product
1	Knob, Control (4)
1	Knob, Valve (4)
2	Trim, Control Panel
2	Trim, Control Panel
4	Glass, Control Panel
4	Glass, Control Panel
5	Shield, Valve & Switch
7	Retainer, Glass (2)
7	Retainer, Glass (2) (White)
8	Screw, 4-40 X 1/4 (2)
9	Actuator, Switch
10	Switch, Fan
11	Insulator, Switch
12	Bracket, Fan Switch
13	Switch, Fan (Manual)
14	Screw, 6-32 X 3/16 (2)
15	Knob, Fan
15	Knob, Fan
16	Block, Terminal
17	W11693756 Whirlpool Screw Assembly
18	Screw, 4-40 X 5/8 (2)
19	Nut
20	Switch, Valve (4)
21	Module, Spark
22	WP489128 Whirlpool Refrigerator Screw
23	Insulator, Switch
24	Foam Tape (4)
