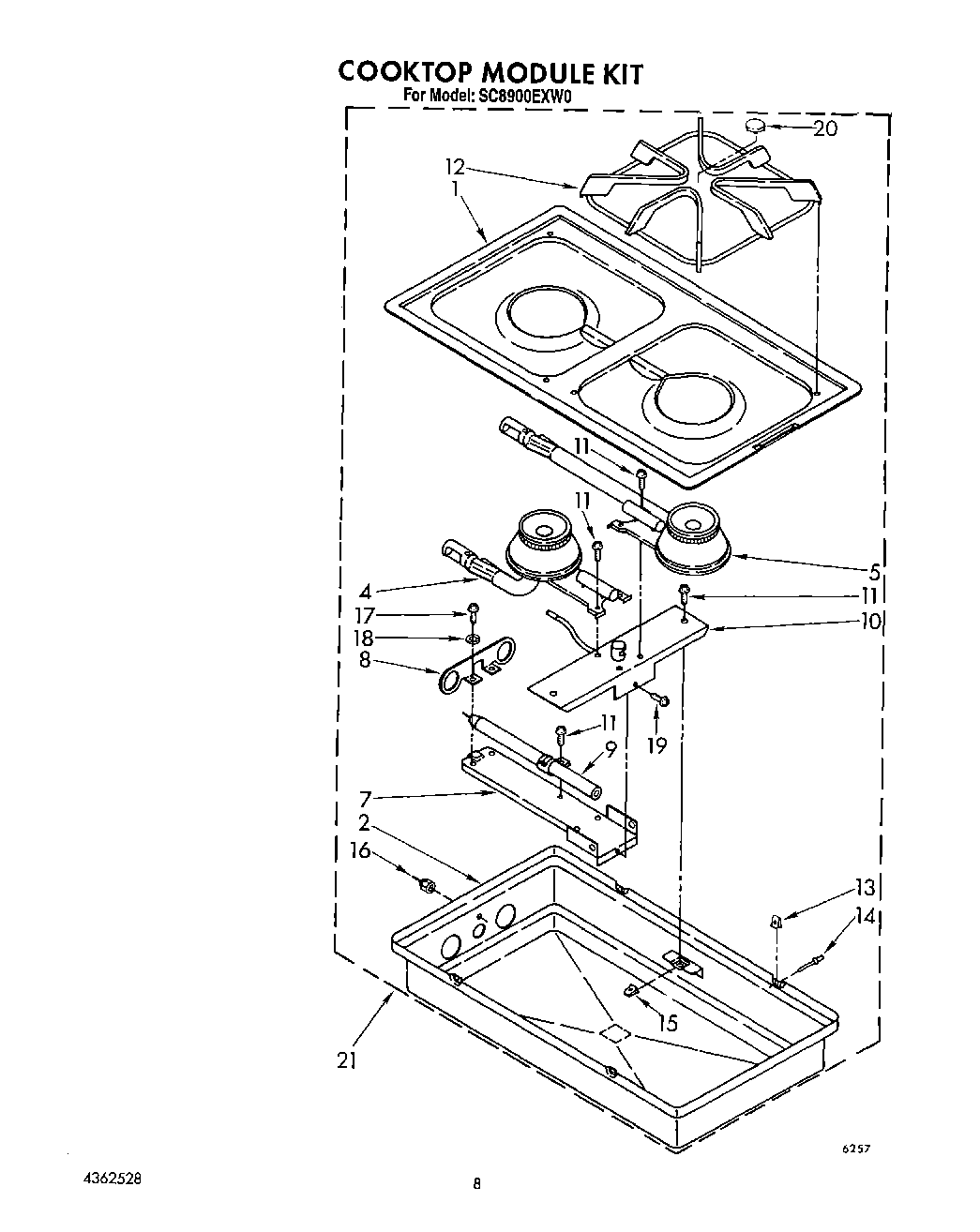

SC8900EXW0 08 – COOKTOP MODULEadmin2025-04-26T11:21:35+00:00SC8900EXW0 08 – COOKTOP MODULE
Products
| Position | Product |
|---|
| 1 | Module Top |
| 1 | Module Top |
| 2 | Module Pan |
| 4 | Burner, Front (Short Venturi) (Black) |
| 4 | Burner, Rear (Short Venturi) |
| 5 | Burner, Rear (Long Venturi) (Black) |
| 5 | Burner, Front (Long Venturi) |
| 7 | Support, Burner Base |
| 8 | Support, Venturi |
| 9 | Connector, Electrode |
| 10 | Electrode & Cap Assembly |
| 11 | WP489128 Whirlpool Refrigerator Screw |
| 12 | Grate, Top Burner (Black) |
| 12 | Grate, Top Burner (White (Gray)) |
| 13 | Clip, Top Mounting (4) |
| 14 | Pop Rivet (4) |
| 15 | U-Clip (2) |
| 16 | BOX ASSEMBLY |
| 17 | Screw (4) No.8-32 x 3/18 |
| 18 | Lockwasher No.8 |
| 19 | WPW10068250 Whirlpool Dishwasher Screw |
| 20 | Burner Cap |
| 20 | Burner Cap |
| 21 | Module Complete |
| 21 | Module, Complete (White) |
