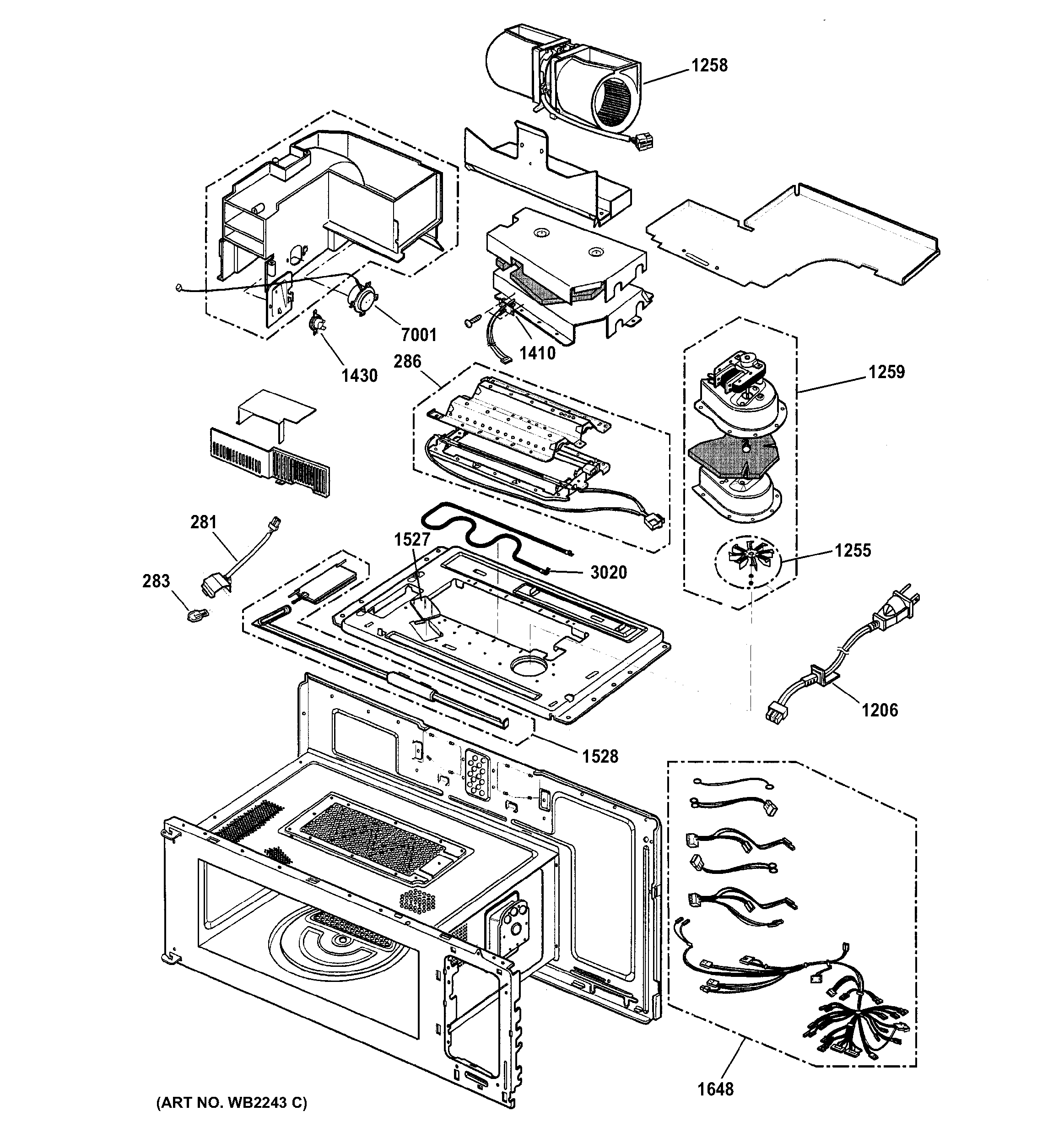

SCA1000DBB03 INTERIOR PARTS (2)

SCA1000DBB03 INTERIOR PARTS (2)

Written by

in

SCA1000DBB03 INTERIOR PARTS (2)

Products

PositionProduct
281LAMP REFLECTOR ASSY
283WB36X10163 GE Halogen Lamp 10W 12V G4 2 Pin Base
286REFLECTOR ASSY
1206GEN WB18X10150
1255FAN BLADE ASSY
1258WB26X36106 GE Ventilation Motor
1259BLOWER ASSY
1410THERMISTOR
1430WB20X10048 GE Oven Thermostat
1527GEN WB06X10317
1528GEN WB06X10318
1648LEAD WIRE ASSY
3020HEATER
7001SENSOR ASS'Y
