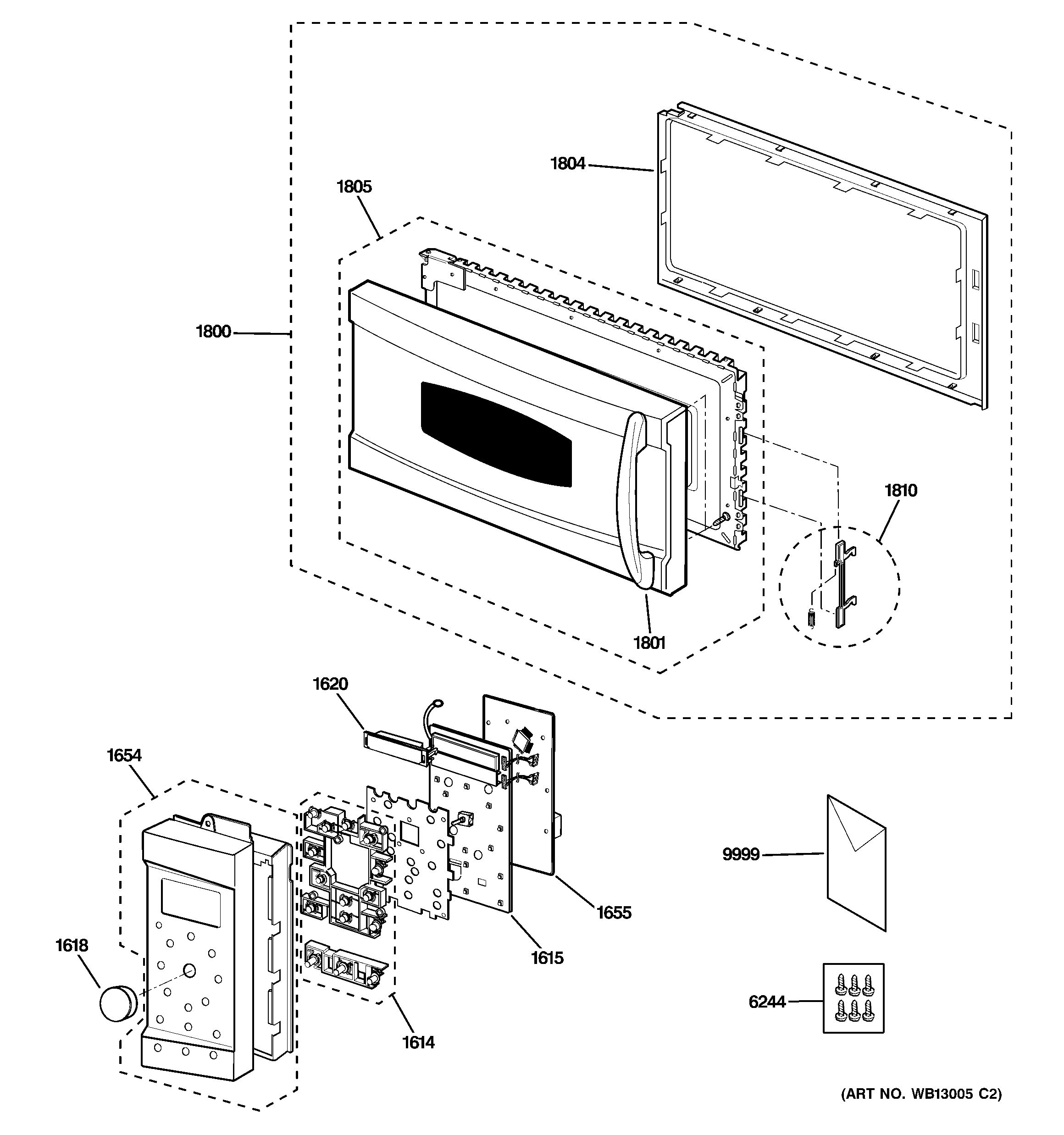

SCA1000HBB03 CONTROL PANEL & DOOR PARTS
Products
| Position | Product |
|---|---|
| 1614 | BUTTON ASM BLK |
| 1615 | KEY PCB ASM |
| 1618 | KNOB BLACK |
| 1620 | LED HOLDER ASSY |
| 1654 | CONTROL PANEL ASM BLK |
| 1655 | SMART BOARD |
| 1800 | DOOR ASM BLK |
| 1801 | DOOR HANDLE BLK |
| 1804 | GEN WB55X10428 |
| 1805 | DOOR GROSS SUB ASM BLK |
| 1810 | WB10X10021 GE Oven Latch and Spring |
| 6244 | WB01X32574 GE Oven Installation Hardware |
| 9999 | MANUAL,OWNERS |
| 9999 | TEMPLATE REAR |
| 9999 | TEMPLATE TOP |
| 9999 | INSTALLATION INSTRUCTION |
| 9999 | COOKBOOK |
| 9999 | MINI MANUAL |
