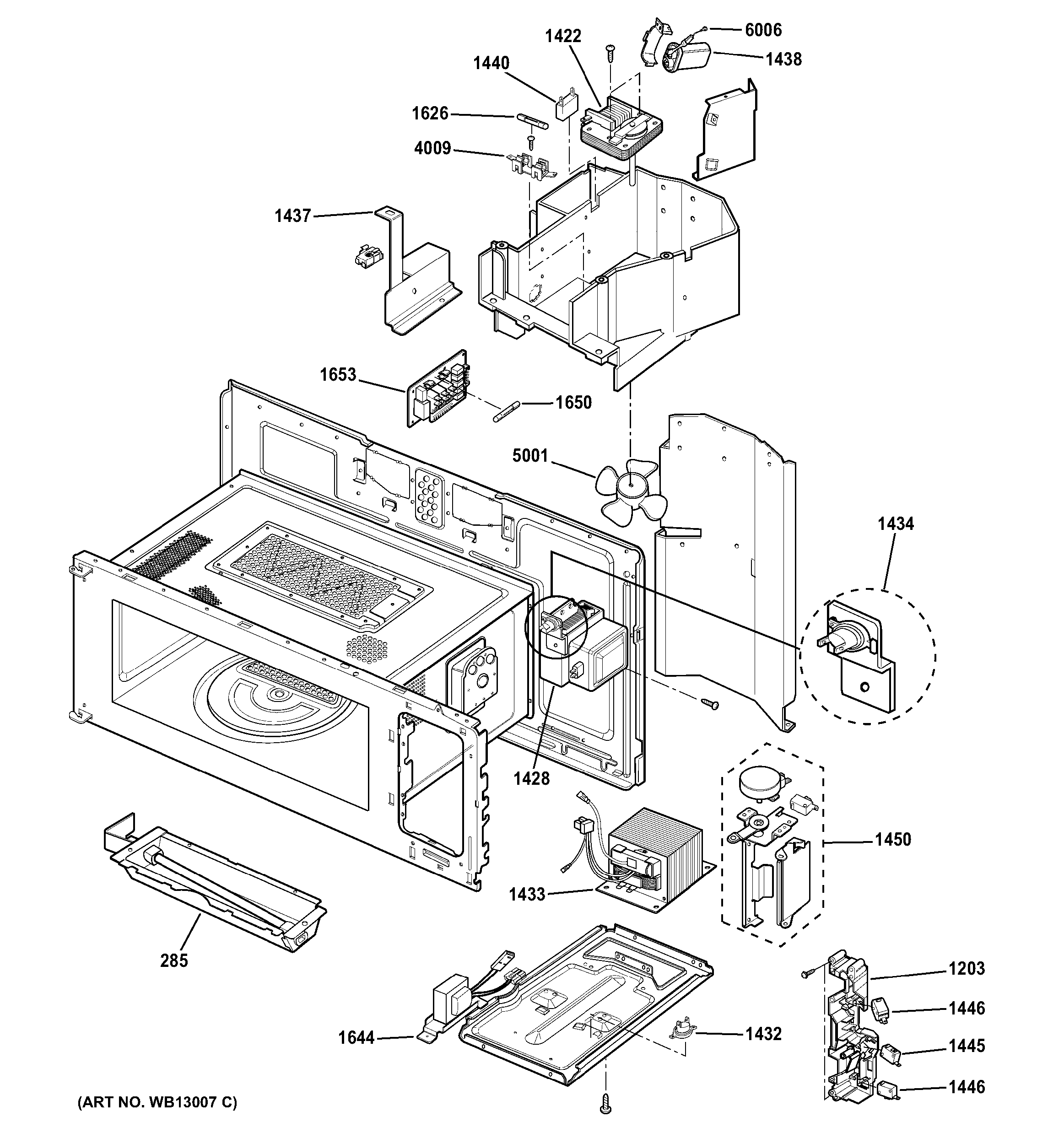

SCA1000HCC02 INTERIOR PARTS (1)
Products
| Position | Product |
|---|---|
| 285 | REFLECTOR ASSY |
| 1203 | GEN WB06X10216 |
| 1422 | GEN WB26X10101 |
| 1428 | MAGNETRON ASM |
| 1432 | GEN WB21X10045 |
| 1433 | GEN WB27X10774 |
| 1434 | MGT THERMO ASSY |
| 1437 | GEN WB06X10316 |
| 1438 | CAPACITOR, H. V. |
| 1440 | WB27X10808 GE Oven Capacitor |
| 1445 | WB24X25397 GE Oven Interlock Monitor Switch |
| 1446 | PRIMARY INTERLOCK SWITCH |
| 1450 | GEN WB06X10314 |
| 1626 | WB27X10928 GE Oven Line Fuse |
| 1644 | TRANSFORMER POWER |
| 1650 | FUSE,12A |
| 1653 | RELAY PCB |
| 4009 | FUSE HOLDER |
| 5001 | FAN |
| 6006 | DIODE-CABLE |
